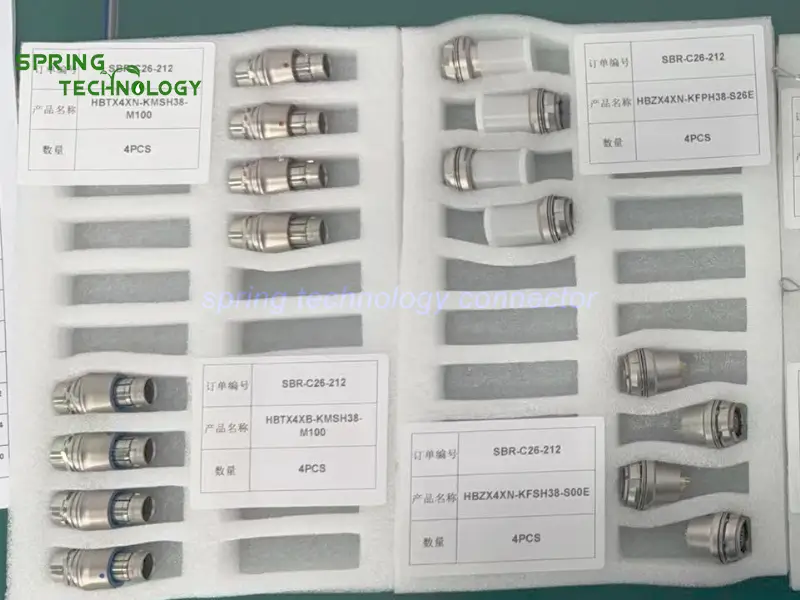

High-Speed Connectors for Offshore Drilling Rig Video Monitoring 2026: HBTX4XN-KMSH38-M100 and HBZX4XN-KFSH38-S00E

The HBTX4XN-KMSH38-M100 high-speed plug and HBZX4XN-KFSH38-S00E receptacle from Spring Technology can be evaluated for high-speed video monitoring systems on offshore drilling rigs — the plug listed for HDMI, DisplayPort and DVI-type interfaces with a published differential transmission rate of 3.4 Gbps, and the receptacle documented with IP68 protection, vibration resistance of 10–20,000 Hz at 15 g, mechanical shock resistance of 100 g for a 6 ms pulse and an operating temperature range of -55 °C to +125 °C. Every specification in this guide is backed by the oil and gas equipment interconnect engineering of Spring Technology.

Pain point: Keeping a clear video feed alive on a drilling rig — where cameras and displays sit in continuous vibration, salt-laden air and changing temperatures, cables are replaced during maintenance, and a connector’s IP rating cannot by itself certify a hazardous-area installation?

Core answer: Spring Technology offers these connectors for evaluation in suitable video interfaces within this type of system, supporting fast video transmission, push-pull locking, environmental protection and resistance to mechanical stress in demanding industrial environments. Offshore drilling rigs operate where equipment is exposed to vibration, mechanical shock, moisture, salt-laden air and changing temperatures, and operators need reliable visual monitoring to observe drilling operations, inspect equipment conditions and maintain situational awareness around the drill floor and derrick. An industrial video monitoring system may include rugged cameras, video transmission cables, display equipment and a monitoring station in the control room — with high-definition video connections important because operators need clear images to observe moving machinery and identify potential equipment issues. The exact video interface, cable assembly and mating compatibility must be verified before integration, and these connectors should be treated as potential components rather than a confirmed installation in a specific drilling rig.

Both parts belong to the X series circular connector family: the plug body and the fixed panel receptacle body.

• Latching Mechanism: Push-pull locking (a compatible plug connects and releases without repeatedly rotating a threaded coupling)
• Recommended Hardware: Spring Technology Circular Connector and custom cable assembly service
• Key Metric: 3.4 Gbps differential transmission; IP68 (receptacle); -55 °C ~ +125 °C; 15 g / 100 g mechanical ratings

Note: the published transmission rate should not be interpreted as a guarantee of support for every video format — actual video resolution, refresh rate, cable length and signal integrity depend on the complete interface standard, cable construction, signal equalization and connected equipment. The allowable operating temperature of the complete connection depends on the exact plug and receptacle versions, cable jacket, seals and other assembly components; the lowest-rated component may determine the practical limits.

Rig monitoring equipment is installed once and serviced often. The design advantages below explain why these high-speed connectors for offshore drilling rig video monitoring suit demanding video interfaces:

• The plug is listed for HDMI, DisplayPort and DVI interface applications with a differential transmission rate of 3.4 Gbps. For an industrial video monitoring system, a suitable high-speed connector helps maintain the electrical interface between compatible video equipment and cable assemblies — important when cameras and displays must transmit detailed images for remote observation.

• Drilling-rig monitoring equipment may require cable replacement, camera maintenance or relocation of display and processing units. The push-pull locking mechanism lets a compatible plug be connected and released without repeatedly rotating a threaded coupling, making installation and routine maintenance more convenient and helping reduce the risk of accidental disconnection during ordinary handling. For high-vibration installations, the complete cable assembly should still be secured with suitable strain relief and routing practices.

• Equipment installed on a drilling rig can experience continuous vibration and occasional mechanical impacts, placing stress on connectors, cables and termination points. The published receptacle documentation lists vibration resistance of 10–20,000 Hz at 15 g and mechanical shock resistance of 100 g for a 6 ms pulse — relevant design parameters for demanding industrial installations. The final system must still be assessed against the actual vibration spectrum, mounting arrangement, cable mass and mechanical loads at the installation point; connector ratings alone do not establish the suitability of an entire camera or monitoring assembly.

• The published receptacle documentation specifies an IP68 rating, providing a basis for evaluating the receptacle in equipment designs requiring protection against water and dust ingress under the manufacturer’s defined test conditions. On offshore drilling rigs, moisture and water exposure can affect external camera connections and cable interfaces, and appropriate sealing helps protect the connection when installed and operated according to its specifications. IP68 does not automatically establish resistance to every saltwater exposure, pressure condition, cleaning process or long-term immersion scenario — the complete mated interface, panel seal, cable entry and enclosure must be evaluated together.

• Industrial monitoring systems must balance video performance, mechanical durability and available installation space. A circular high-speed connector provides a defined cable interface between compatible video equipment and its enclosure, helping organise connections in camera housings, video processing units or remote monitoring equipment. Engineers should verify the supported video protocol, cable impedance, shielding, connector pinout and transmission performance of the complete assembly before specifying it for a production system.

• The published receptacle documentation lists an operating temperature range of -55 °C to +125 °C — a range worth considering when assessing the connector for installations subject to substantial temperature variation, subject to the limitation noted above regarding the lowest-rated assembly component.

• Offshore monitoring systems need to remain accessible for inspection and maintenance. A detachable connector interface simplifies removal or replacement of compatible camera cables and serviceable equipment modules, while the push-pull connection concept helps reduce routine connection time and a standardised interface supports organised cable management. Long-term reliability depends on correct assembly, suitable mating parts, protection against cable strain and compliance with the environmental requirements of the installation.

Before selecting these high-speed connectors for offshore drilling rig video monitoring, engineers should verify:

• Exact part number: confirm whether the receptacle suffix is S00E or S000 and obtain the corresponding manufacturer datasheet.
• Mating compatibility: verify the mechanical interface, keying, contact arrangement and fit between the plug and receptacle.
• Video compatibility: confirm the supported HDMI, DisplayPort or DVI configuration and validate the complete cable assembly at the required data rate.
• Environmental sealing: check the IP68 test conditions, panel sealing, cable entry and actual exposure to water, salt and contaminants.
• Mechanical performance: evaluate vibration, shock, cable strain and mounting requirements for the intended rig location.
• Hazardous-area compliance: where the installation is within a classified hazardous area, confirm the required equipment certification and installation rules — the connector’s environmental and mechanical ratings do not by themselves establish ATEX or IECEx approval.

The X series belongs to Spring Technology’s push-pull connector family for industrial equipment and video interfaces. The same platform serves these high-speed connectors for offshore drilling rig video monitoring and scales across plug and socket bodies.

• Plugs: X series straight plugs for cable assemblies, including short-body versions.
• Sockets: fixed panel receptacles including PCB-contact and earthing-tag variants.
• Interface types: high-speed video configurations (HDMI / DisplayPort / DVI-type applications), subject to per-model verification.
• Mounting: cable-mounted plugs and panel-mounted receptacles for camera housings and processing units.

• Custom part numbers and cable assembly builds matched to each monitoring system’s layout.
• High-speed cable assemblies with defined impedance and shielding support.
• Panel cutout and sealing arrangement customization for camera and control-room enclosures.
• Mating plug / receptacle selection support, including keying and contact-layout confirmation.

These are potential engineering applications for these high-speed connectors for offshore drilling rig video monitoring, based on the connector documentation — not verified installations in specific rig projects:

Camera and display interfaces for observing drilling operations around the drill floor and derrick.

High-speed video connections between rugged cameras, video processing units and monitoring stations.

Video and signal interfaces in oil and gas operations requiring sealed, vibration-resistant connections.

This X series connector pair shows how Spring Technology serves oil and gas video monitoring — from the 3.4 Gbps high-speed plug to the IP68 panel receptacle with 15 g vibration and 100 g shock ratings, every detail was aligned with the customer’s offshore drilling rig video monitoring requirements. Spring Technology also provides professional customization services for both push-pull connectors and cable assemblies, offering tailored solutions to meet your specific technical requirements.

For more information about our X series connectors or to discuss your requirements, contact us at [email protected] or [email protected], or visit our website.

Building an offshore video monitoring system or rugged camera interface? Send us your data rate, sealing and mounting requirements — our engineering team will respond with a proposal for these high-speed connectors for offshore drilling rig video monitoring within 24 hours.
