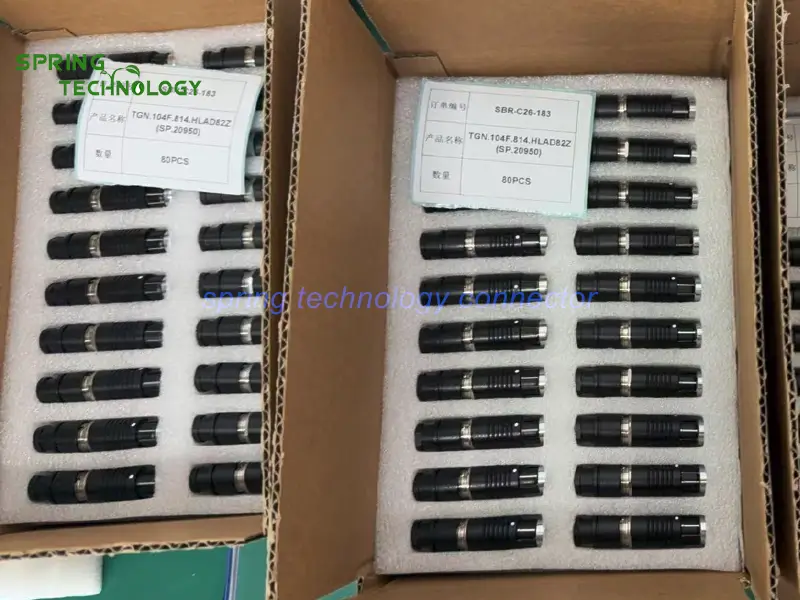

Black 4F BBTG4FN-SMS814-D82Z Push-Pull Connector 2026: Gyrostabilized Head for Film and Television Cameras for Russian Customers

The BBTG4FN-SMS814-D82Z is a BBTG4FN push-pull connector for film camera heads in a black 4F shell — a 14-pin waterproof plug with black finish, built to link gyrostabilized film and television camera heads with gold-plated contacts rated for over 3,000 mating cycles. Every specification in this guide is backed by the motion-picture interconnect engineering of Spring Technology.

Pain point: Wiring the gyrostabilized head of a film or television camera — where the head carries power, control and encoder signals through constant pan, tilt and roll motion, and a bulky or reflective connector can ruin both the balance and the shot?

Core answer: For Russian customers, Spring Technology supplied the BBTG4FN-SMS814-D82Z, a BBTG4FN push-pull connector for film camera heads in a black 4F shell. It is used on gyrostabilized heads for film and television cameras, providing a rugged, low-profile black interface for the power, control and positioning links of the stabilized head.

This film camera head connector is built on the TGN waterproof plug platform in the 4F shell size, finished in black. The 14-pin layout carries the power, control and encoder links of a gyrostabilized camera head in one compact push-pull interface.

• Latching Mechanism: Push-pull self-latching system (anti-vibration & shockproof)
• Recommended Hardware: Spring Technology Circular Connector
• Key Metric: Black 4F shell; 14-pin layout; waterproof TGN platform; >3,000 mating cycles

Gyrostabilized camera heads combine precision balance with continuous motion. The design highlights below are why this BBTG4FN push-pull connector for film camera heads is specified for film and television use:

• Black low-profile shell — the dark finish blends with professional camera rigs and avoids reflections during shooting.
• 14-pin layout — enough contacts for the power, control and positioning links of a gyrostabilized head in a single connector.
• Compact 4F shell — keeps weight and footprint low on the camera head, protecting balance and payload limits.
• Waterproof TGN platform — IP68/IP66 when mated protects the head link from rain, spray and humidity on set.
• Gold-plated contacts — stable power and signal paths through constant pan, tilt and roll motion.
• Proven durability — >3,000 mating cycles for repeated rigging between scenes and locations.

The 4F shell size is part of Spring Technology’s TGN waterproof connector family, trusted across film, broadcast, airborne and industrial equipment. This black variant serves gyrostabilized camera heads and is available in the same shell across multiple pin counts.

• Plugs: straight plugs (this order), plugs with bend relief, in 4F and other TGN shell sizes.
• Finishes: standard chrome and black (this order) shell finishes.
• Pin counts: 2 to 19 pins on the 4F shell, with solder termination.
• Keying: key N standard, with additional key options for segregation.

• Custom pin allocations and part numbers (such as the BBTG4FN-SMS814-D82Z) matched to each camera head’s power and control plan.
• Black or chrome finish selection for rig appearance.
• Pre-wired cable assemblies for gyrostabilized heads.
• Key orientation selection to keep power and signal circuits segregated.

Gyrostabilized heads keep film and television cameras level through every movement. This BBTG4FN push-pull connector for film camera heads carries the links that make the head work.

On film sets, the black BBTG4FN-SMS814-D82Z, a BBTG4FN push-pull connector for film camera heads, links the gyrostabilized head to the camera body and rig, delivering power and control through the head’s full range of motion.

For television production, the same connector serves stabilized heads on studio and field cameras, keeping power, control and encoder links reliable through repeated takes.

The 14-pin layout routes motor power, pan/tilt control and positioning signals for the stabilized head, all within the compact black 4F shell.

This 4F connector delivery for Russian customers shows how Spring Technology serves the motion-picture industry — from the black BBTG4FN-SMS814-D82Z plug to its matching socket, every detail was aligned with the customer’s gyrostabilized film and television camera head requirements. Spring Technology also provides professional customization services for both push-pull connectors and cable assemblies, offering tailored solutions to meet your specific technical requirements.

For more information about our TGN waterproof connectors or to discuss your requirements, contact us at [email protected] or [email protected], or visit our website.

Building a gyrostabilized camera head? Send us your power, control and pin requirements — our engineering team will respond with a tailored BBTG4FN push-pull connector proposal for your film camera heads within 24 hours.
