CBTH0BG Connectors for Airborne Particle Counters 2026: 0B 6-Contact Elbow Plug and Panel Receptacle for Cleanroom Monitoring Instruments

The CBTH0BG-SMSM06-D520 cable plug and CBZG0BG-SFSM06-0000 panel receptacle are CBTH0BG connectors for airborne particle counters — a 0B elbow (90°) plug with six low-voltage contacts and a cable collet, paired with a 0B fixed panel socket of the same six-contact layout, both with IP50 protection, solder termination, nut fixing and keying, operation from -45 °C to +125 °C, 0B platform cable openings of 1.5–5.5 mm on the plug and more than 5,000 mating cycles. Every specification in this guide is backed by the environmental monitoring instrument interconnect engineering of Spring Technology.

Pain point: Giving a handheld particle counter’s external cable a compact, serviceable entry point — where the enclosure is small and light, instruments move between cleanrooms and laboratories, and every detachable joint must survive repeated cleaning and reconnection?

Core answer: Spring Technology offers these connectors for evaluation in connection interfaces of this type of equipment, supporting convenient cable connections, equipment integration and maintenance in cleanroom monitoring instruments. Portable airborne particle counters measure and monitor airborne particles in cleanrooms, pharmaceutical production areas, semiconductor facilities and other controlled environments, helping quality-control and facility teams assess air cleanliness, investigate contamination sources and verify environmental conditions. A typical counter integrates an air-sampling inlet, optical particle-detection components, signal-processing electronics, a display and data communication functions — and depending on the instrument design, electrical connections may be needed between internal modules, external control components or serviceable cable assemblies. The six-contact configuration provides multiple electrical paths in a compact circular arrangement, with final selection based on the instrument’s wiring design and verified compatibility between the exact plug and receptacle models.

Both parts are built on the 0B platform: the TH elbow plug body and the ZGG fixed panel socket body.

• Latching Mechanism: Push-pull connection with a correctly matched plug and receptacle pair
• Recommended Hardware: Spring Technology Circular Connector and custom cable assembly service
• Key Metric: 6 low-voltage contacts; 0B compact shell; IP50; >5,000 mating cycles

Note: the six-contact count alone does not confirm that the connector is suitable for a particular sensor, communication protocol or power arrangement — the actual pin assignment must be determined by the equipment designer.

Cleanroom instruments move and are serviced. The design advantages below explain why these CBTH0BG connectors for airborne particle counters suit portable monitoring interfaces:

• Six low-voltage contacts support several electrical connections through one connector interface, and depending on the instrument architecture these circuits may be allocated to compatible power, control, status or auxiliary signal functions. For portable particle counters, consolidating suitable circuits into one connector simplifies cable management and reduces the number of separate connection points on the instrument housing.

• Portable monitoring instruments are frequently moved between sampling locations and may require periodic servicing. A suitable circular connector makes external cable connections easier to manage during setup, inspection and maintenance, and when the plug and receptacle are correctly matched the interface supports repeatable equipment assembly and disassembly — particularly useful for instruments transported between cleanrooms, laboratories and production areas.

• A panel-mounted receptacle provides a dedicated electrical connection point on the particle counter enclosure, keeping the instrument’s external interface organised and making cable access more convenient for operators and service technicians. For equipment manufacturers, a defined panel interface also simplifies enclosure layout and supports a consistent design across instrument variants. Panel dimensions and mounting requirements should be checked against the manufacturer’s drawings before production.

• Portable particle counters must balance measurement functionality with enclosure size, weight and ease of handling, so a compact circular connector is worth considering where space is limited but a detachable electrical interface is required. The final mechanical design should also account for cable bend radius, strain relief, connector accessibility and protection against accidental impact.

• Some monitoring instruments are designed with serviceable electronics or replaceable cable assemblies, and a detachable connector interface helps technicians access equipment modules without permanently wiring every external connection. In a particle counter this is useful during maintenance or troubleshooting when the design requires a cable or module to be disconnected — actual serviceability depends on the instrument’s architecture and whether the relevant circuits are designed for field disconnection.

• Reliable particle monitoring depends on the complete instrument, including the optical detection system, airflow control, electronics, software and electrical connections. A connector selected to match the system’s current, voltage, contact arrangement, cable and environmental requirements contributes to a dependable electrical interface — however, measurement accuracy and data integrity must be validated at the system level and cannot be guaranteed by the connector alone.

Before integrating these CBTH0BG connectors for airborne particle counters into a particle-counting instrument, equipment designers should verify:

• Mating compatibility: confirm that the exact CBTH0BG-SMSM06-D520 plug mates correctly with the CBZG0BG-SFSM06-0000 receptacle.
• Contact assignment: check the six-contact pinout against the instrument’s electrical schematic.
• Electrical ratings: confirm operating voltage, current, conductor size and any applicable derating requirements.
• Cable dimensions: verify cable outside diameter and compatibility with the specified cable collet (1.5–5.5 mm on the 0B platform).
• Environmental requirements: evaluate dust, moisture, cleaning agents, vibration and other conditions at the intended sampling location.
• Signal integrity: assess shielding, grounding and cable routing where sensitive detection or communication signals are involved.

These checks are especially important when the particle counter is intended for pharmaceutical or semiconductor cleanroom environments, where reliable monitoring and controlled maintenance procedures are essential.

The 0B shell belongs to Spring Technology’s compact push-pull connector family for portable instruments and environmental monitoring equipment. The same platform serves these CBTH0BG connectors for airborne particle counters and scales across plugs, sockets and contact variants.

• Plugs: TH 0B elbow plugs with bend relief, plus TG 0B straight plugs.
• Sockets: ZGG.0B fixed panel sockets with nut fixing and keying.
• Pin counts: 2–9 contacts across the 0B shell, including the six-contact layout.
• Keying: key G or keys A…M and R to prevent mismating across instrument variants.

• Custom contact allocations and part numbers (such as the CBTH0BG-SMSM06-D520 and CBZG0BG-SFSM06-0000) matched to each instrument’s wiring plan.
• Cable assembly builds with defined cable opening ranges and bend relief for tight enclosures.
• Shielding and grounding verification for detection and communication signal circuits.
• Mating plug / receptacle selection support, including keying and contact-layout confirmation.

These are potential engineering applications for these CBTH0BG connectors for airborne particle counters, based on the connector configuration — not verified installations in specific instrument brands or models:

Connection interfaces in portable airborne particle counters and handheld cleanroom monitoring instruments.

Monitoring instruments used in pharmaceutical production areas and semiconductor facilities where cleanliness verification is routine.

Related environmental monitoring instruments requiring a compact detachable cable-to-panel interface.

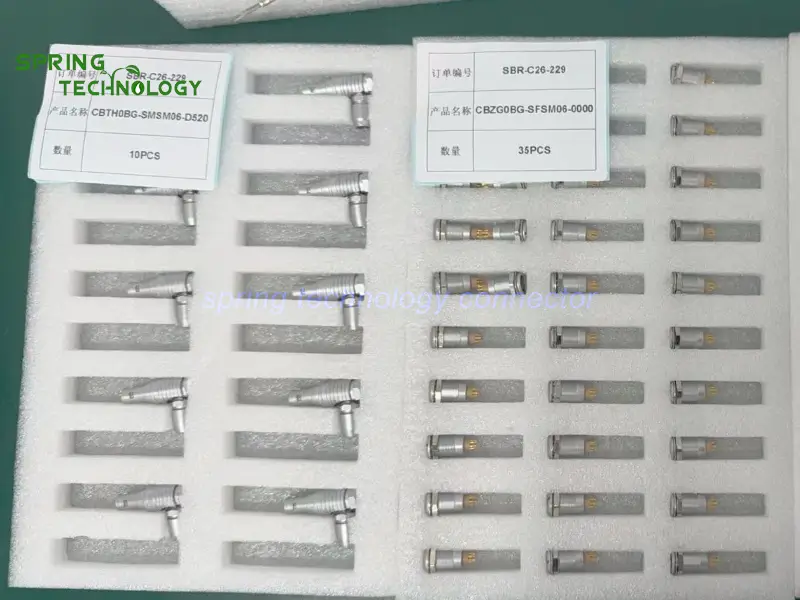

This 0B connector pair shows how Spring Technology serves cleanroom and environmental monitoring instrumentation — from the six contacts and angled exit of the CBTH0BG-SMSM06-D520 plug to the nut-fixed CBZG0BG-SFSM06-0000 panel receptacle, every detail was aligned with the customer’s portable particle counter requirements. Spring Technology also provides professional customization services for both push-pull connectors and cable assemblies, offering tailored solutions to meet your specific technical requirements.

For more information about our 0B series connectors or to discuss your requirements, contact us at [email protected] or [email protected], or visit our website.

Building a portable particle counter or cleanroom monitoring instrument? Send us your wiring and enclosure requirements — our engineering team will respond with a tailored CBTH0BG connectors proposal for your airborne particle counters within 24 hours.
