Push-Pull Connector for Oil and Gas Drilling 2026: S6TL4FN-SMSM19-D920 and S6ZL4FN-SFPM19-R340 with 316L Stainless Housings for LWD/MWD Instruments for Saudi Arabian Client
The S6TL4FN-SMSM19-D920 is a 4F push-pull connector for oil and gas drilling — a 19-pin plug with a custom 316L stainless steel housing, mated to the S6ZL4FN-SFPM19-R340 hermetic socket, engineered for LWD/MWD logging instruments that face heavy mud, acidic crude oil and hydrogen sulfide downhole, with gold-plated contacts. Every specification in this guide is backed by the oilfield interconnect engineering of Spring Technology.
Pain point: Wiring LWD/MWD geological exploration instruments in oil and gas operations — where equipment from downhole testing tools near the drill bit to surface data acquisition cabinets operates in heavy mud and highly corrosive substances such as acidic crude oil and hydrogen sulfide?
Core answer: For a Saudi Arabian client, Spring Technology supplied a push-pull connector for oil and gas drilling: the S6TL4FN-SMSM19-D920 plug and the S6ZL4FN-SFPM19-R340 socket, featuring custom 316L stainless steel housings, for use in LWD/MWD (Logging/Measurement While Drilling) geological exploration instruments during oil and gas exploration and refining operations. In these applications, the equipment — ranging from downhole testing instruments near the drill bit to surface data acquisition cabinets — operates in environments characterized by heavy mud and exposure to highly corrosive substances, such as acidic crude oil and hydrogen sulfide. The physical strength and chemical resistance of 316L stainless steel are essential for performance in these demanding conditions.
1. Technical Parameters & Engineering Standards
This oil and gas drilling connector pair is built on the TLN.104F plug and ZLN.104F hermetic socket platforms with custom 316L stainless steel housings. The 19-pin layout supports the logging and telemetry channels of LWD/MWD instruments.
- Latching Mechanism: Push-pull self-latching system (anti-vibration & shockproof)
- Recommended Hardware: Spring Technology Circular Connector
- Key Metric: 316L stainless housings; 19-pin logging link; mud, acid and H2S resistance
| Parameter | Value |
|---|---|

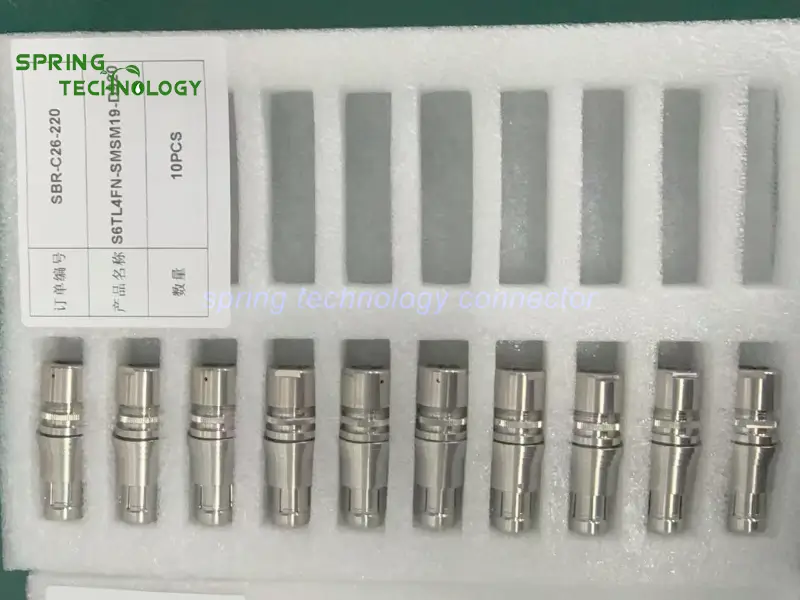

| Plug (this order) | S6TL4FN-SMSM19-D920 — TL plug, 4F (104F) shell, 19-pin, 316L stainless housing |

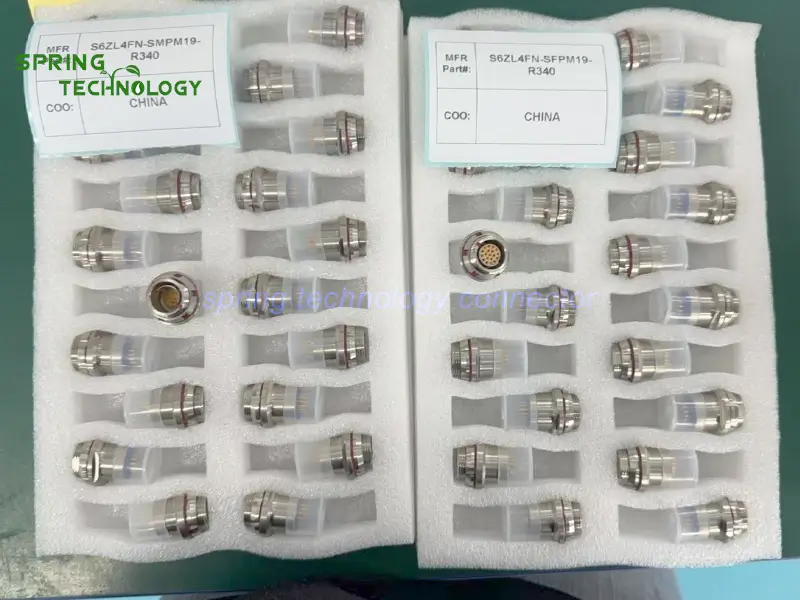

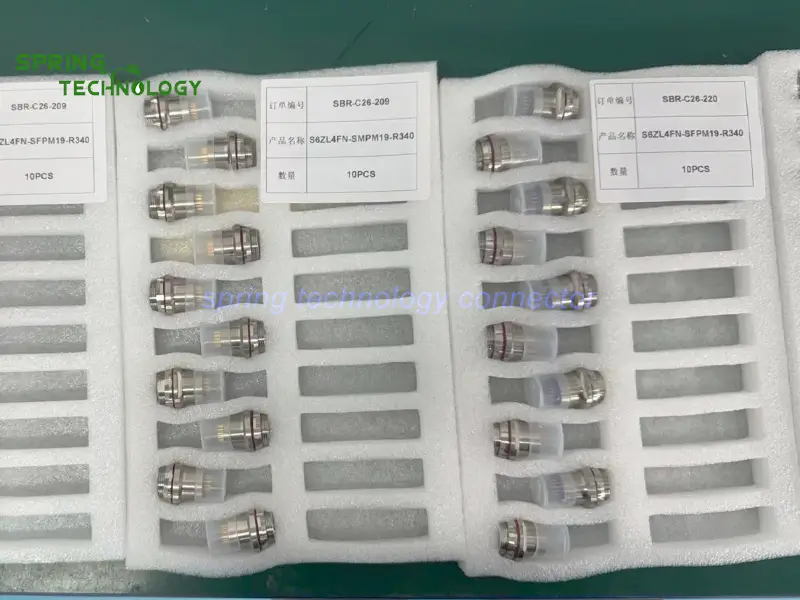

| Socket (this order) | S6ZL4FN-SFPM19-R340 — ZL hermetic socket, 4F (104F) shell, 19-pin PCB, 316L stainless housing |
| Housing material | Custom 316L stainless steel (physical strength + chemical resistance) |
| Application | LWD/MWD geological exploration instruments |
| Operation scope | Oil and gas exploration and refining operations |
| Equipment range | Downhole testing instruments near the drill bit to surface data acquisition cabinets |
| Environment | Heavy mud; acidic crude oil; hydrogen sulfide |
| Connector type | Plug: male pins / Socket: female pins, hermetic |
| Number of positions | 2–19 pin (4F / 104F shell) |
| Fastening type | Push-pull |
| Contact finish | Gold-plated |
2. Oil and Gas Connector Design Highlights
Oilfield tools face the most corrosive environments in industrial electronics. The design highlights below are why this push-pull connector for oil and gas drilling is specified for LWD/MWD systems:
- 316L stainless steel housing — the custom 316L housings deliver the physical strength and chemical resistance essential for downhole and refinery conditions.
- Hydrogen sulfide resistance — engineered for exposure to highly corrosive substances such as acidic crude oil and hydrogen sulfide.
- Heavy mud tolerance — built to operate in heavy drilling mud from the drill bit to surface cabinets.
- 19-pin logging link — carries the measurement and telemetry channels of LWD/MWD instruments.
- Hermetic socket side — the ZL hermetic socket seals the instrument interior against mud and fluids.
- Gold-plated contacts — stable signal paths for logging data in extreme conditions.
3. 4F Series Connector Family Overview
The 4F (104F) shell is part of Spring Technology’s waterproof and hermetic connector families, with custom material options for extreme environments. The plug and socket in this order share the same 4F platform.
3.1 Available Configurations
- Plugs: TLN.104F straight plugs (this order) and related 104F variants.
- Sockets: ZLN.104F hermetic sockets (this order) and elbow print contact versions.
- Pin counts: 2 to 19 pins on the 4F (104F) shell.
- Material options: custom 316L stainless steel housings (this order) and standard finishes.
3.2 Customization Services
- Custom part numbers (such as the S6TL4FN-SMSM19-D920 / S6ZL4FN-SFPM19-R340 pair) matched to each downhole instrument’s plan.
- 316L stainless steel housing options for corrosive environments.
- Pin allocations for logging, telemetry and power channels.
- Sealing verification for mud and fluid exposure.
4. Applications: LWD/MWD and Oilfield Data Systems
From the drill bit to the data cabin, oilfield instruments need corrosion-proof connections. This push-pull connector for oil and gas drilling keeps logging data flowing.
4.1 Downhole Testing Instruments
Near the drill bit, downhole testing instruments face heavy mud and corrosive well fluids. The 316L housings and hermetic sealing keep the logging link intact at depth.
4.2 LWD/MWD Geological Exploration
Logging and measurement while drilling instruments rely on the 19-pin link to carry measurement and telemetry data during exploration and refining operations.
4.3 Surface Data Acquisition Cabinets
At the surface, data acquisition cabinets in refinery and rig environments benefit from the same corrosion-resistant connector family.
5. Frequently Asked Questions (FAQ)
Conclusion & Call to Action
This 4F connector delivery for the Saudi Arabian client shows how Spring Technology serves oilfield exploration — from the 316L stainless S6TL4FN-SMSM19-D920 plug to the S6ZL4FN-SFPM19-R340 hermetic socket, every detail was aligned with the customer’s LWD/MWD requirements. Spring Technology also provides professional customization services for both push-pull connectors and cable assemblies, offering tailored solutions to meet your specific technical requirements.
For more information about our 104F series connectors or to discuss your requirements, contact us at [email protected] or [email protected], or visit our website.
Building an oilfield logging system? Send us your downhole and corrosion requirements — our engineering team will respond with a tailored push-pull connector proposal for your oil and gas drilling program within 24 hours.
