Push-Pull Connector for Broadcast Equipment 2026: CBTL2FN and CBZY2FN Mating Pairs for Cinema Cameras and Broadcast Cabling for USA Client
The CBTL2FN and CBZY2FN are a 2F push-pull connector for broadcast equipment mating pair — IP68-rated when mated with low-voltage, miniature high-density design — supplied in 2-pin, 3-pin, 5-pin and 7-pin configurations for professional cinema cameras and broadcast audio/video control cables. Every specification in this guide is backed by the waterproof push-pull engineering of Spring Technology.
Pain point: Building broadcast and television cabling that has to travel from studio to field — where a compact cinema camera rig, a rain-soaked outside broadcast truck or a tangled control cable can put signal integrity and equipment protection at risk?

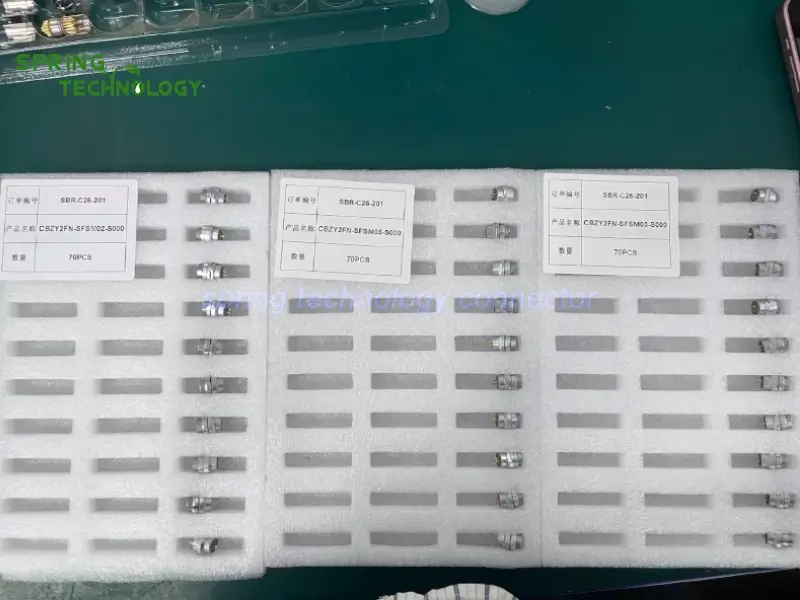

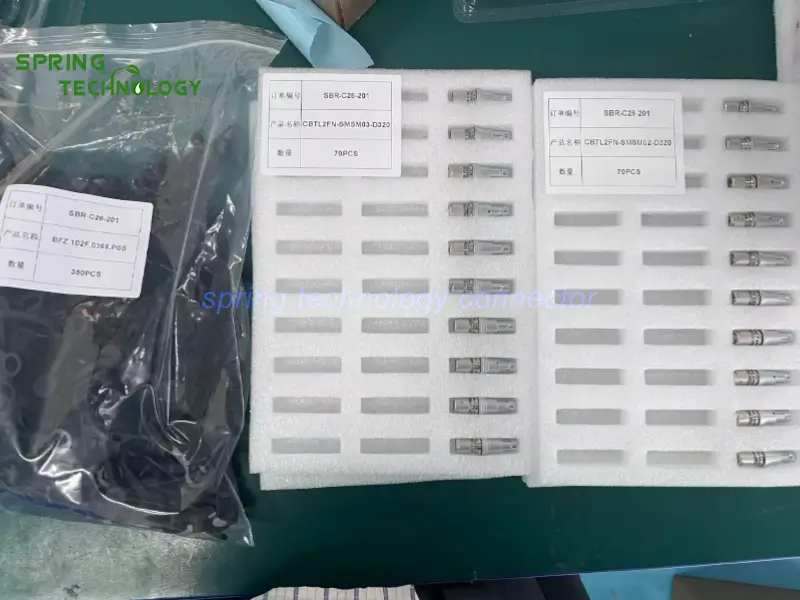

Core answer: Spring Technology supplied a US client with 70 sets each of four mating connector pairs for specialized broadcast and television equipment cabling: 2-pin (CBTL2FN-SMSM02-D320 plug and CBZY2FN-SFSM02-S000 socket), 3-pin (CBTL2FN-SMSM03-D320 and CBZY2FN-SFSM03-S000), 5-pin (CBTL2FN-SMSM05-D320 and CBZY2FN-SFSM05-S000) and 7-pin (CBTL2FN-SMSM07-D320 and CBZY2FN-SFSM07-S000). Thanks to their low-voltage design, miniature high-density form factor and IP68-rated bidirectional waterproofing, these 2F push-pull connector for broadcast equipments serve as communication interfaces in professional cinema cameras, including compact aerial cameras, and professional broadcast audio/video control cables.
1. Technical Parameters & Engineering Standards
The CBTL2FN plug (TLN series straight short plug) and CBZY2FN socket (ZYN series hermetic short socket) share one compact 2F platform, so every pin count in this order mates with the same proven interface. Both sides are rated IP68 when mated, giving the cable assembly bidirectional waterproof protection — whether the connector sits on the camera body or on the control cable.
- Latching Mechanism: Push-pull self-latching system (anti-vibration & shockproof)
- Recommended Hardware: Spring Technology Circular Connector
- Key Metric: IP68 when mated (bidirectional waterproof), miniature high-density 2F form factor, 2–9 pin range
| Parameter | Value |
|---|---|
| Plug (this order) | CBTL2FN-SMSM02/03/05/07-D320 — TLN series straight short plug, 2F shell, key N |
| Socket (this order) | CBZY2FN-SFSM02/03/05/07-S000 — ZYN series hermetic short socket, 2F shell, key N |
| Pin configurations | 2-pin, 3-pin, 5-pin, 7-pin (70 sets each) |
| Connector type | Plug: male pins / Socket: female pins |
| Number of positions | 2–9 pin (2F shell) |
| Fastening type | Push-pull |
| Protection (mated) | IP68 — bidirectional waterproofing |
| Operating temperature | -55 °C ~ +145 °C |
| Humidity resistance | Up to 95% RH at 40 °C |
| Vibration | 10~20000 Hz, 147 m/s², ≤1 µm instantaneous break |
| Impact | 490 m/s², ≤1 µm instantaneous break |
| Durability | > 3,000 mating cycles |
| Shell material / finish | Brass / Chrome |
2. Broadcast Connector Design Highlights
Broadcast gear lives a double life: it must be studio-precise and field-tough. The design highlights below are why this 2F push-pull connector for broadcast equipment is chosen for cinema camera and A/V control cabling:
- IP68 bidirectional waterproofing — both plug and socket are sealed, so the connection survives rain, spray and condensation from either side of the cable.
- Miniature high-density form factor — the compact 2F shell fits tight camera bodies and control panels while carrying 2 to 9 contacts.
- Low-voltage design — suitable for camera control, audio and video signal lines where clean low-power transmission matters.
- Push-pull self-latching — quick to connect and disconnect on set, with a lock that holds under vibration from rigs, vehicles and transport.
- Wide temperature range — -55 °C to +145 °C covers cold outdoor shoots and heat-soaked equipment cases.
- Proven durability — >3,000 mating cycles with 147 m/s² vibration tolerance, built for daily studio and location use.
3. 2F Series Connector Family Overview
The 2F series is Spring Technology’s compact push-pull platform for sealed, high-density interconnects. It covers plug and socket families in multiple shell sizes, letting equipment designers standardize on one interface from a 2-pin sensor link up to 40-pin system connectors.
3.1 Available Configurations
- Plugs: TLN straight short plug (this order), straight plugs, plugs with bend relief, elbow plugs, in shell sizes 2F to 5F.
- Sockets: ZYN hermetic short socket (this order), hermetic sockets, front projecting sockets, PCB-contact sockets, free sockets.
- Pin counts: 2 to 9 pins on the 2F shell; larger shells extend to 16, 19 and 40 pins.
- Keying: key N standard, with keys A and B available for multi-connector panels.
3.2 Customization Services
- Custom contact layouts and part numbers (such as the CBTL2FN-SMSM02-D320 / CBZY2FN-SFSM02-S000 pairs) matched to the camera or console’s signal plan.
- Key orientation selection to prevent mismating where several connectors share one camera body or cable breakout.
- Pre-wired cable assemblies and complete harness manufacturing for broadcast-ready cables.
- Sealing levels and shell finishes matched to studio, outdoor and aerial operation environments.
4. Applications: Cinema Cameras and Broadcast Cabling
From compact aerial cameras to broadcast audio/video control cables, the 2F series brings one consistent, waterproof push-pull connector for broadcast equipment interface to professional media production. The four mating pairs in this order cover the signal groups a production system typically needs.
4.1 Professional Cinema Cameras
Compact aerial cameras and cinema bodies pack control, power and monitoring into tight housings. The miniature high-density 2F connector fits these interfaces while the IP68 rating protects the camera ports from weather and condensation on location.
4.2 Broadcast Audio/Video Control Cables
Audio and video control cables connect cameras, switchers, monitors and intercom systems across a production. The 2-pin to 7-pin configurations in this order give engineers a matched set for control, power and signal paths, all on one waterproof standard.
4.3 Outdoor and Location Production
Outside broadcasts, sports coverage and documentary shoots expose cabling to rain and humidity. Bidirectional waterproofing means this push-pull connector for broadcast equipment protects the equipment no matter which side of the cable faces the weather.
5. Frequently Asked Questions (FAQ)
Conclusion & Call to Action
This 2F push-pull connector for broadcast equipment delivery for the USA client shows how Spring Technology turns a compact waterproof platform into a complete cabling standard for professional media production — from the CBTL2FN-SMSM02-D320 plug to the CBZY2FN-SFSM02-S000 socket, and across the 3-pin, 5-pin and 7-pin pairs, every detail was aligned with the customer's cinema camera and broadcast cabling requirements. Spring Technology also provides professional customization services for both push-pull connectors and cable assemblies, offering tailored solutions to meet your specific technical requirements.
For more information about our 2F series connectors or to discuss your requirements, contact us at [email protected] or [email protected], or visit our website.
Building a broadcast or cinema system? Send us your pin configuration, quantities and cable requirements — our engineering team will respond with a tailored push-pull connector for broadcast equipment proposal within 24 hours.
