CBTG1BG Push-Pull Connectors for Industrial 3D Laser Scanners 2026: SMSM02 15 A Power Plug and SMSM08 1 Gb/s Data Plug for Scanner Systems

The CBTG1BG-SMSM02-D52B and CBTG1BG-SMSM08-D52B are CBTG1BG push-pull connectors for industrial 3D laser scanners — a 1B series power plug with 2 contacts rated up to 15 A and AWG 28–20 support, paired with a 1B series data plug with 8 contacts, four differential pairs and 1000 Base-T4 Gigabit Ethernet at 1 Gb/s with 75 dB shielding at 10 MHz. Every specification in this guide is backed by the industrial scanning interconnect engineering of Spring Technology.

Pain point: Feeding power and pulling point-cloud data out of a scanning head that sits on a moving machine — where the power interface must carry meaningful current, the data link must survive electrically noisy production floors, and both must survive repeated maintenance?

Core answer: Spring Technology supplies two complementary connection solutions for industrial 3D laser scanner systems, supporting stable power delivery and high-speed digital communication in demanding industrial environments. Modern industrial 3D laser scanners integrate a laser source, optical receiver, scanning mechanism, processing electronics and a high-speed data interface — so the connector system must support both reliable electrical power and fast data transmission. Together they form the power-and-data pairing that makes the CBTG1BG push-pull connectors for industrial 3D laser scanners system practical. The CBTG1BG-SMSM02-D52B can be evaluated for the scanner’s power connection, while the CBTG1BG-SMSM08-D52B suits high-speed data communication between the scanning head and processing electronics.

Both connectors are built on the 1B series push-pull platform, a compact circular connector family for professional measurement, machine tool and industrial equipment.

• Latching Mechanism: Push-pull self-latching system on both models (quick connect and disconnect without threaded locking)
• Recommended Hardware: Spring Technology Circular Connector
• Key Metric: SMSM02 — 2 contacts up to 15 A; SMSM08 — 8 contacts, 1 Gb/s 1000 Base-T4

The power side of a scanning system is about delivering current into a compact head. These advantages explain why this model serves the power side of the CBTG1BG push-pull connectors for industrial 3D laser scanners system:

• Two low-voltage contacts with a rated current of up to 15 A support applications requiring a compact but relatively high-current power connection, with wire sizes from AWG 28 to AWG 20. For an industrial 3D laser scanner this provides a dedicated power interface for the scanning head or other power-consuming modules.

• The push-pull self-latching mechanism lets operators connect and disconnect the cable quickly without relying on threaded locking, which suits scanning equipment that needs frequent cable replacement, system maintenance or module changes.

• Specified for up to 5,000 mating cycles, the connector withstands mechanical shock of up to 100 g and vibration of up to 15 g over 10~20000 Hz — suitable for scanning equipment operating around machine tools, production lines, robotic cells and other mechanically active environments.

The data side carries point clouds out of the head. These advantages explain why this model serves the high-speed data side of the CBTG1BG push-pull connectors for industrial 3D laser scanners system:

• Eight low-voltage contacts arranged as four differential pairs support 1000 Base-T4 at 1 Gb/s. High-speed transmission matters because an industrial 3D laser scanner generates large volumes of point-cloud and measurement data, so a suitable high-speed connector helps maintain a reliable communication link between the scanning unit and the processing system.

• Rather than a large multi-connector interface, the 1B format provides multiple contacts within a relatively compact circular connector — helping designers reduce connector footprint while maintaining the required data interface.

• Shielding of 75 dB at 10 MHz and 40 dB at 1 GHz is valuable for scanning equipment installed near motors, variable-frequency drives, industrial controllers and other sources of electromagnetic interference.

The 1B shell is part of Spring Technology’s push-pull self-locking connector family, used in precision measurement, machine tool, industrial and test equipment. Both halves of the CBTG1BG push-pull connectors for industrial 3D laser scanners system share the same platform, so power and data interfaces stay mechanically consistent.

• Shell: 1B shell size, with 00B, 0B and 2B siblings for smaller or larger layouts.
• Pin counts: 2 to 16 contacts on the 1B shell — including the 2-contact power and 8-contact high-speed layouts used here.
• Termination: solder termination with cable collet and bend relief options.
• Cable range: cable openings from 2.2 to 7.5 mm across the 1B platform.

• Custom contact allocations and part numbers (such as the CBTG1BG-SMSM02-D52B and CBTG1BG-SMSM08-D52B) matched to each scanner’s power and data plan.
• Combined power and data cable assemblies with the required conductor and jacket dimensions.
• Shielding and EMC verification for high-speed links on production floors.
• Pre-wired scanning head and processing unit harnesses.

Scanning happens where the parts are made. This CBTG1BG push-pull connector for industrial 3D laser scanners serves both sides of the signal chain.

Power feeds the scanning head through the 2-contact plug while point-cloud data leaves through the 8-contact high-speed plug.

Inline dimensional inspection and automated surface inspection scanners use the same power and data pairing for a compact, serviceable interface.

Robotic 3D scanning systems, industrial point-cloud acquisition equipment and machine-tool 3D inspection systems benefit from the mechanical durability of the 1B platform.

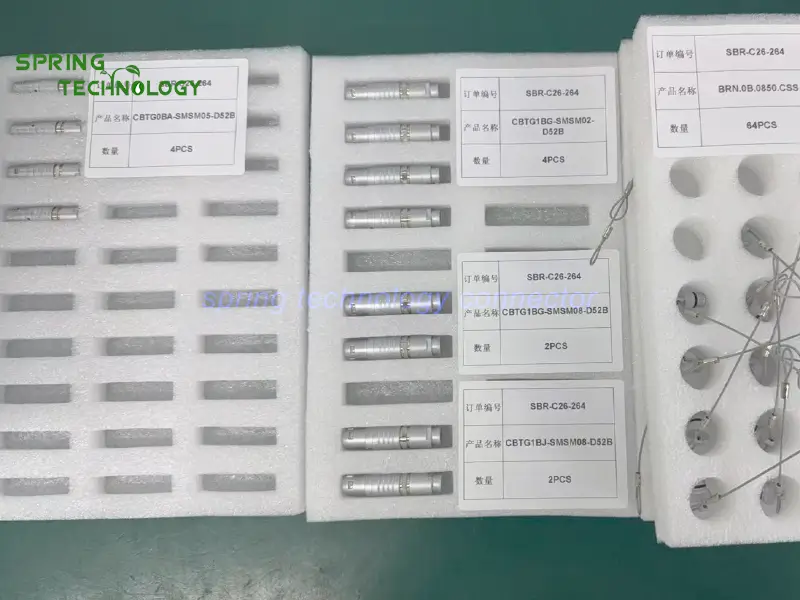

This 1B connector delivery shows how Spring Technology serves industrial scanning equipment — from the 15 A power contacts of the CBTG1BG-SMSM02-D52B to the 1 Gb/s four-differential-pair data link of the CBTG1BG-SMSM08-D52B, every detail was aligned with the customer’s industrial 3D laser scanner requirements. Spring Technology also provides professional customization services for both push-pull connectors and cable assemblies, offering tailored solutions to meet your specific technical requirements.

For more information about our 1B series connectors or to discuss your requirements, contact us at [email protected] or [email protected], or visit our website.

Building an industrial 3D laser scanner or optical measurement system? Send us your power and data requirements — our engineering team will respond with a tailored CBTG1BG push-pull connector proposal for your industrial 3D laser scanners within 24 hours.
