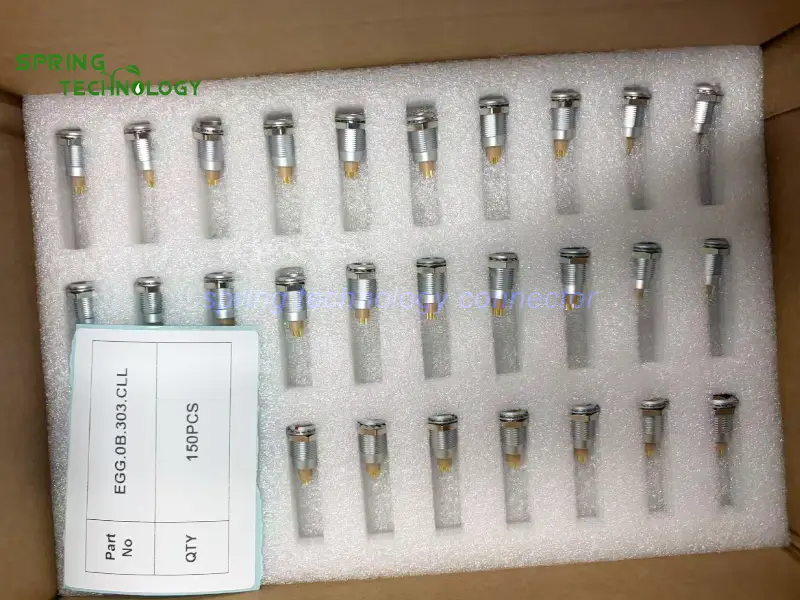

CBZC0BG Push-Pull Connector for Gas Leak Detectors 2026: 0B Series 3-Contact 8 A Panel Socket for Portable Safety Instruments

The CBZC0BG-SFSM03-0000 is a CBZC0BG push-pull connector for gas leak detectors — a compact 0B series fixed-panel socket with three low-voltage contacts, rear-panel mounting, a rated current of 8 A, push-pull locking, IP50 protection, 5,000 mating cycles and shielding of at least 75 dB at 10 MHz. Every specification in this guide is backed by the portable safety instrument interconnect engineering of Spring Technology.

Pain point: Fitting a dependable external interface onto a portable gas detector — where the enclosure is already tightly packed with sensors, signal processing, alarms and a user interface, and the instrument is carried into electrically noisy plant rooms and maintenance areas?

Core answer: Spring Technology supplies the CBZC0BG-SFSM03-0000, a fixed-panel connector that can be evaluated for compatible electrical interfaces between a detector’s internal electronics and an external cable assembly or auxiliary module, supporting compact panel mounting, reliable connections and convenient maintenance. Portable industrial gas leak detectors identify potentially hazardous gas concentrations in industrial facilities, pipelines, equipment rooms and maintenance areas, typically combining gas sensors, signal-processing electronics, alarms and a user interface in a compact enclosure. Depending on the instrument design, its three low-voltage contacts may be assigned to suitable power or signal circuits.

This CBZC0BG push-pull connector for gas leak detectors is built on the ZCG.0B fixed socket platform, a compact circular connector family for professional instrument panels.

• Latching Mechanism: Push-pull locking mechanism (compatible mating connectors connect and release with a straightforward push-and-pull operation)
• Recommended Hardware: Spring Technology Circular Connector
• Key Metric: 3 low-voltage contacts; 8 A rated current; rear-panel mounting; IP50; 5,000 mating cycles

Note: the 8 A figure should not automatically be treated as the permissible current for every contact simultaneously — actual capacity depends on the manufacturer’s rating conditions, contact loading, ambient temperature and system design. The connector must be selected according to the detector’s actual electrical requirements, and the exact application must be validated against the instrument’s electrical, mechanical and environmental requirements.

Portable safety instruments are only as good as their connections. The design advantages below explain why this CBZC0BG push-pull connector for gas leak detectors suits compact instrument interfaces:

• Portable gas detectors must balance functionality with size and weight. The connector’s compact circular format suits instrument panels with limited installation space, and a suitably designed panel interface helps manufacturers organise external connections without adding unnecessarily bulky connection hardware.

• Three low-voltage contacts can support compatible low-voltage power or signal connections between the detector and an external module depending on the circuit design. A single three-contact interface simplifies a connection where the required circuit count is limited; engineers should confirm the pin assignment and electrical isolation requirements before connecting power and signal circuits.

• Gas detection instruments may need connection to external accessories or disconnection during inspection and servicing. The push-pull locking mechanism connects and releases compatible mating connectors with a straightforward push-and-pull operation, simplifying maintenance and reducing handling time for routine connection changes.

• The published specification lists a rated current of 8 A, providing a reference when assessing the connector for compatible electrical circuits. This figure should not automatically be treated as the permissible current for every contact simultaneously: actual capacity depends on the manufacturer’s rating conditions, contact loading, ambient temperature and system design, so the connector must be selected according to the detector’s actual electrical requirements.

• Gas detectors contain sensitive sensor and signal-processing circuits, and electrical noise from nearby equipment is an important design consideration in electrically active industrial environments. Published specifications list minimum shielding values of 75 dB at 10 MHz and 40 dB at 1 GHz — useful during connector evaluation, though these values alone do not guarantee immunity to interference. Cable shielding, grounding, enclosure design and overall system testing remain essential.

• Specified for 5,000 mating cycles, the connector suits interfaces periodically disconnected for maintenance, inspection or accessory replacement. Its IP50 rating is intended for indoor or otherwise protected environments and does not establish protection against water ingress, so the completed gas detector must meet its own dust, moisture and hazardous-location requirements.

Portable industrial gas detectors require compact electrical interfaces that fit the enclosure design and support the instrument’s maintenance requirements. The CBZC0BG-SFSM03-0000 offers several features worth evaluating for compatible applications:

• Three low-voltage contacts for limited-contact interfaces
• Compact circular connector design
• Rear-panel mounting for integration within an instrument enclosure
• Push-Pull locking for convenient connection and disconnection
• A specified endurance of 5,000 mating cycles

These characteristics may suit certain internal or external instrument connections when the ratings and configuration match the application. Before integration, designers should verify the mating plug, contact assignment, panel cutout, cable specification, current requirements and environmental protection needs.

The 0B shell belongs to Spring Technology’s compact push-pull connector family for professional instruments and portable equipment: the same platform serves this CBZC0BG push-pull connector for gas leak detectors and scales across pin counts and mounting variants.

• Sockets: ZCG.0B fixed sockets including the solder contact version in this order, plus elbow contact versions.
• Pin counts: 2–9 contacts across the 0B shell, including the 3-contact layout.
• Termination: solder and PCB contact options.
• Mounting: fixed panel rear-mounted installation with keying to prevent mismating.

• Custom contact allocations and part numbers (such as the CBZC0BG-SFSM03-0000) matched to each instrument’s circuit plan.
• Panel cutout and mounting customization for compact enclosures.
• Shielding and EMC verification for sensor and signal circuits.
• Mating plug selection support, including keying and contact-layout confirmation.

These examples describe potential applications rather than verified use by a specific detector manufacturer:

Portable industrial gas leak detectors used in facilities, pipelines, equipment rooms and maintenance areas.

Gas sensor control modules and industrial environmental monitoring instruments.

Auxiliary electrical interfaces in protected test and monitoring equipment where a compact three-contact panel connection is required.

This 0B connector delivery shows how Spring Technology serves portable safety instruments — from the three contacts and 8 A reference rating of the CBZC0BG-SFSM03-0000 to its rear-panel mounting and shielding, every detail was aligned with the customer’s portable gas leak detector requirements. Spring Technology also provides professional customization services for both push-pull connectors and cable assemblies, offering tailored solutions to meet your specific technical requirements.

For more information about our 0B series connectors or to discuss your requirements, contact us at [email protected] or [email protected], or visit our website.

Building a portable gas detector or industrial monitoring instrument? Send us your panel and circuit requirements — our engineering team will respond with a tailored CBZC0BG push-pull connector proposal for your gas leak detectors within 24 hours.
