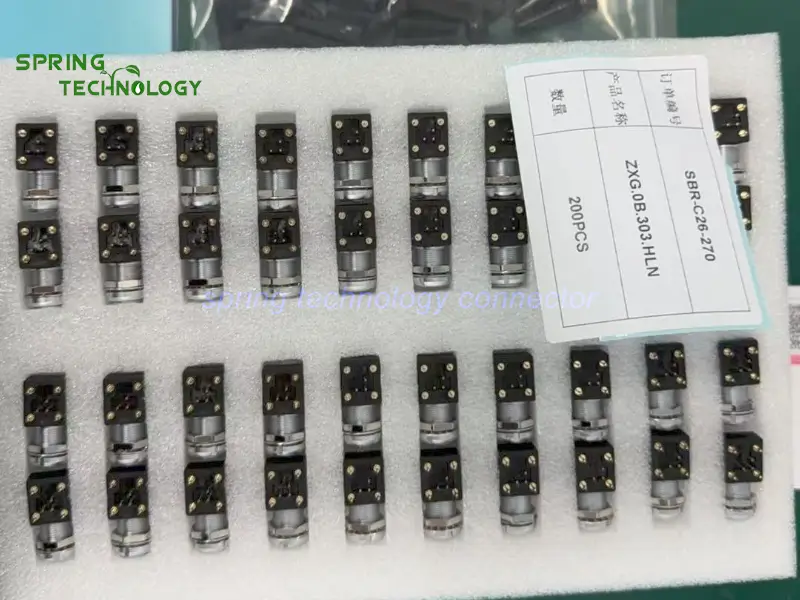

BBZX0BG Push-Pull Connector for Vibration Calibrators 2026: 0B Series 3-Contact Elbow PCB Socket for Portable Calibration Instruments

The BBZX0BG-SFPM03-0000 is a BBZX0BG push-pull connector for vibration calibrators — a black 0B series panel-mounted socket with three low-voltage contacts, elbow (right-angle) PCB mounting for back-panel installation, push-pull self-locking, a maximum electrical contact resistance of 4.8 mΩ, a rated current of 4.5 A, IP50 protection and a specified endurance of 5,000 mating cycles. Every specification in this guide is backed by the portable calibration instrument interconnect engineering of Spring Technology.

Pain point: Fitting a detachable panel interface into a portable three-axis vibration calibrator — where the drive assembly, measurement circuits, display and battery all compete for the same compact enclosure, and only a few auxiliary circuits need to leave the housing?

Core answer: Spring Technology supplies the BBZX0BG-SFPM03-0000, a panel-mounted connector that can be evaluated for suitable low-voltage auxiliary circuits in a vibration calibrator, supporting compact electrical interfaces, elbow PCB mounting, push-pull locking and reliable repeated connections. Portable three-axis vibration calibrators verify and calibrate vibration sensors, accelerometers and vibration measurement instruments by generating controlled mechanical vibration along defined axes, helping technicians evaluate sensor sensitivity and measurement accuracy in industrial maintenance, laboratory testing and equipment condition monitoring. Inside a portable vibration calibrator, the control electronics manage the vibration drive mechanism, measurement circuits and operating-status signals — and the connector’s role is to provide a physical electrical interface within a properly engineered instrument, not to act as a vibration sensor or signal-conditioning device.

This BBZX0BG push-pull connector for vibration calibrators is built on the ZX 0B platform, a compact panel socket family with elbow PCB contacts for back-panel mounting.

• Latching Mechanism: Push-pull self-locking mechanism (quick mating and unmating without a threaded coupling operation)
• Recommended Hardware: Spring Technology Circular Connector
• Key Metric: 3 low-voltage contacts; elbow PCB mounting; 4.8 mΩ / 4.5 A; IP50; 5,000 mating cycles

Note: three contacts should not be assumed sufficient for every sensor or calibration-system interface, and the actual pin assignment must be determined by the equipment’s electrical schematic. A vibration calibrator’s sensitive measurement paths may have specific noise, grounding and signal-integrity requirements — engineers should confirm that the connector is appropriate for the intended circuit and should not route precision measurement signals through it without validating the complete measurement chain.

Portable calibrators are packed tight and handled often. The design advantages below explain why this BBZX0BG push-pull connector for vibration calibrators suits instrument panel interfaces:

• Portable calibration instruments must accommodate measurement electronics, drive-control circuitry, power management and user interfaces in a limited space. Three low-voltage contacts make the connector a candidate for applications that require only a small number of electrical connections, and depending on the instrument design these contacts may be allocated to suitable auxiliary power or control circuits.

• The elbow receptacle is designed for printed circuit board integration and back-panel mounting. Its right-angle form helps designers arrange the connector and PCB when straight connections would require more clearance behind the panel — useful in handheld or portable calibration instruments where internal space is shared by the circuit board, vibration drive assembly, display and enclosure components. The final layout should account for the connector’s mounting dimensions, PCB footprint, cable bend radius and mechanical clearances.

• Calibration instruments may need connection to compatible cables or accessories during setup, servicing and routine verification procedures. The push-pull self-locking mechanism supports quick mating and unmating without requiring a threaded coupling operation, making routine handling more convenient when technicians disconnect or reconnect an approved cable assembly. Correct mating compatibility and operating procedures should always be confirmed before use.

• A calibration instrument may be used regularly across different sensors, test locations and maintenance tasks, and repeated connection cycles place demands on the connector interface. The specified endurance of 5,000 mating cycles helps when assessing connector suitability for instruments that undergo recurring setup and maintenance. Actual service life also depends on handling, cleanliness, cable strain and compliance with the manufacturer’s installation instructions.

• The published specifications list a maximum electrical contact resistance of 4.8 mΩ and a rated current of 4.5 A for this model, providing useful reference points when evaluating the connector for compatible low-voltage circuits.

• The connector carries an IP50 rating, making it a potential candidate for instruments used in protected indoor environments where the connector is not exposed to water ingress. IP50 does not mean waterproof: if a calibrator is intended for outdoor fieldwork or locations exposed to moisture, additional enclosure protection and a suitable system-level environmental design may be required.

Portable vibration calibrators need a connector interface that fits the instrument’s mechanical layout and electrical requirements while supporting practical maintenance. The BBZX0BG-SFPM03-0000 combines three low-voltage contacts, elbow PCB mounting, Push-Pull locking and a specified 5,000-cycle mating life:

• Three low-voltage contacts for compact auxiliary interfaces
• Elbow PCB mounting for space-efficient back-panel integration
• Push-Pull self-locking for convenient connection and disconnection
• 4.8 mΩ contact resistance and 4.5 A rated current
• 5,000 mating cycles for recurring setup and maintenance
• IP50 protection for protected indoor instruments

These characteristics make it a candidate for evaluation in compact calibration instruments that need a detachable panel interface for suitable auxiliary circuits. Before selecting the connector, engineers should confirm the full part number, compatible mating plug, pin assignment, current and voltage requirements, PCB layout and environmental conditions.

The 0B shell belongs to Spring Technology’s compact push-pull connector family for portable instruments and professional equipment panels. The same platform serves this BBZX0BG push-pull connector for vibration calibrators and scales across pin counts and contact variants.

• Sockets: ZX 0B elbow PCB sockets including the black variant in this order, plus straight fixed sockets and earthing-tag versions.
• Pin counts: 2–7 contacts across the ZX 0B shell, including the 3-contact layout.
• Termination: elbow PCB contacts with two-nut back-panel fixing.
• Keying: key G or keys A…F to prevent mismating across instrument variants.

• Custom contact allocations and part numbers (such as the BBZX0BG-SFPM03-0000) matched to each instrument’s circuit plan.
• Panel cutout and PCB footprint customization for compact instrument housings.
• Shell colour and keying options for model differentiation across product families.
• Mating plug selection support, including keying and contact-layout confirmation.

These are potential engineering applications for this BBZX0BG push-pull connector for vibration calibrators, based on the connector’s published configuration — not verified installations in specific equipment brands or models:

Control interfaces in portable three-axis vibration calibrators and industrial accelerometer calibration instruments.

Vibration sensor verification equipment and portable mechanical measurement instruments.

Auxiliary low-voltage connections in condition-monitoring test equipment used for scheduled maintenance checks.

This 0B connector delivery shows how Spring Technology serves portable calibration instruments — from the three compact auxiliary contacts and elbow PCB mounting of the BBZX0BG-SFPM03-0000 to its 4.8 mΩ / 4.5 A characteristics and 5,000-cycle life, every detail was aligned with the customer’s three-axis vibration calibrator requirements. Spring Technology also provides professional customization services for both push-pull connectors and cable assemblies, offering tailored solutions to meet your specific technical requirements.

For more information about our 0B series connectors or to discuss your requirements, contact us at [email protected] or [email protected], or visit our website.

Building a vibration calibrator or accelerometer verification instrument? Send us your panel and circuit requirements — our engineering team will respond with a tailored BBZX0BG push-pull connector proposal for your vibration calibrators within 24 hours.
