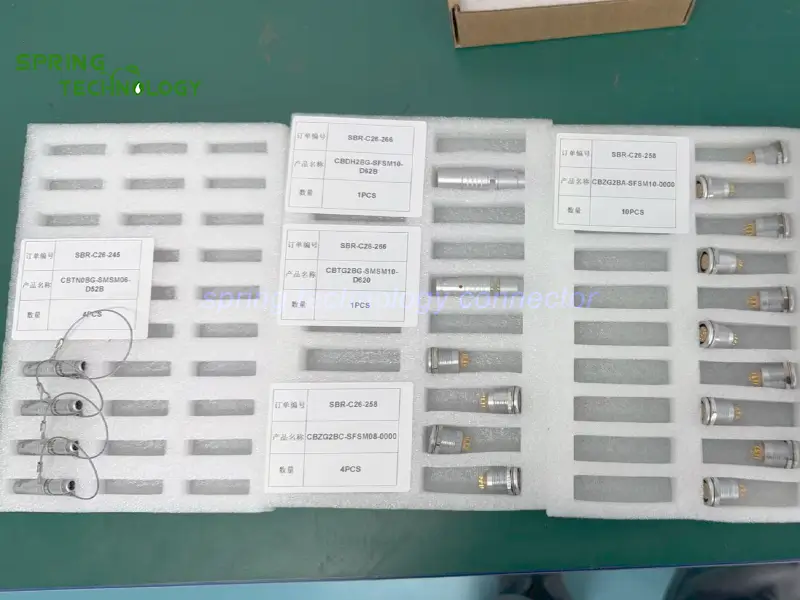

B Series Push-Pull Connectors for SLAM Mobile Mapping 2026: Compact Interconnects for LiDAR, IMU and GNSS Payloads on Survey Backpacks and Drone Pods for US Client

The B series push-pull connector for SLAM mobile mapping is the critical electrical bridge between the core control motherboard and multifunctional sensing components — laser heads and integrated IMU modules — inside backpack and drone-mounted 3D laser scanning systems that integrate LiDAR, IMUs, GPS/GNSS modules and panoramic cameras. Every specification in this guide is backed by the mobile mapping interconnect engineering of Spring Technology.

Pain point: Interconnecting SLAM mobile mapping systems — where LiDAR, IMU, GNSS and camera signals plus power must cross a limited device surface, and the backpack or drone pod is subjected to constant vibration, cable tugging and sub-zero outdoor weather?

Core answer: For a US client, Spring Technology supplied B series push-pull connectors for SLAM mobile mapping systems. In the fields of modern GIS, digital twins and forestry surveys, SLAM mobile mapping systems and drone-mounted 3D laser scanners are indispensable high-end tools for high-precision spatial digitization. These systems typically integrate LiDAR, Inertial Measurement Units (IMUs), GPS/GNSS modules and high-performance panoramic cameras, and within these complex, highly compact systems the connectors serve as the critical electrical bridge between the core control motherboard and multifunctional sensing components such as laser heads and integrated IMU modules.

This B series push-pull connector for SLAM mobile mapping is built on the B series push-pull self-locking platform, covering the 0B, 1B and 2B shells with rear cable clamps that accept bend relief boots.

• Latching Mechanism: Push-pull self-locking system (resilient against strong vibrations and dynamic pulling forces)
• Recommended Hardware: Spring Technology Circular Connector
• Key Metric: Multi-pin density up to 26 contacts; rear collet nut for bend relief boots; dust protection

Spatial digitization equipment is compact, mobile and constantly stressed. The design advantages below explain why this B series push-pull connector for SLAM mobile mapping is specified for spatial digitization equipment:

• The challenge: SLAM systems process vast amounts of diverse electrical signals, and traditional connectors with insufficient pin counts require multiple ports on the device’s limited surface area — increasing the overall weight of the mapping backpack or drone pod and consuming precious internal PCB space.
• The advantage: highly reliable pins housed within a miniature socket let survey engineers use a single composite cable to handle multiple functions simultaneously: high-voltage power supply, RS232/485 control commands, PPS (Pulse Per Second) time synchronization signals and high-speed point cloud data transmission. A single cable handles all connections, greatly simplifying the device’s exterior.

• The challenge: whether a surveyor is traversing rugged mountain terrain with a backpack or a multi-rotor drone is experiencing high-frequency aerial vibrations, equipment faces intense mechanical stress; traditional threaded connectors can loosen slightly under prolonged high-frequency vibration, and a momentary disconnection of the PPS sync signal can cause misalignment or ghosting in the 3D point cloud data across the entire survey area.
• The advantage: the classic push-pull self-locking mechanism locks securely once the plug is inserted; the connection will not disengage due to cable tugging, vibration or accidental impact unless the operator manually pulls back the plug housing. This ensures consistently ultra-low contact resistance during dynamic operations, guaranteeing data continuity and zero packet loss.

• The challenge: surveying cables require frequent folding for storage or must maintain specific curvature when mounted beneath a drone; the junction where the cable meets the plug is a critical stress concentration zone, where standard cables can crack or break internally — especially during high-altitude aerial surveys in sub-zero northern temperatures or under repeated manual bending.
• The advantage: the rear cable clamp features a structural design (collet nut) that accommodates a bend relief boot and integrates with silicone or polyurethane (PU) bend relief sleeves to evenly distribute stress from frequent bending. This preserves the cable’s physical integrity, provides excellent dust protection and significantly extends the Mean Time Between Failures (MTBF) for surveying equipment in extreme outdoor weather.

The B series is Spring Technology’s compact push-pull self-locking connector family, widely used in survey instruments, industrial equipment and field systems. The same platform serves this B series push-pull connector for SLAM mobile mapping and scales across shell sizes and pin counts.

• Shells: 0B miniatures, 1B and 2B bodies for higher pin counts and heavier cable loads.
• Pin counts: 2 to 26 contacts across the family, with solder terminations and gold-plated contacts.
• Rear cable clamp: collet nut designs that accept bend relief boots.
• Accessories: bend relief sleeves available in different colours matching the insulating washers.

• Custom pin allocations for LiDAR, IMU, GNSS and camera channels within one composite cable.
• Composite cable assembly for high-voltage power, control, PPS sync and point cloud data.
• Bend relief boot selection in silicone or PU for the required flex and temperature range.
• Pre-wired backpack and drone pod harnesses.

Mapping systems digitize the world while moving through it; their connectors must survive the journey. This B series push-pull connector for SLAM mobile mapping serves both backpack and airborne platforms.

On foot surveys through rugged terrain, the single composite cable simplifies the device exterior while the push-pull lock keeps the point cloud data stream unbroken.

Airborne scanning pods see high-frequency vibration and sub-zero temperatures; the self-locking mechanism and rear strain relief protect both the connection and the cable.

High-precision spatial digitization depends on continuous sensor data, with PPS synchronization and point cloud transfer carried through one compact interface.

This B series delivery for the US client shows how Spring Technology serves mobile mapping platforms — from the pin density and push-pull lock to the rear collet nut and bend relief boots, every detail was aligned with the customer’s SLAM mobile mapping requirements. Spring Technology also provides professional customization services for both push-pull connectors and cable assemblies, offering tailored solutions to meet your specific technical requirements.

For more information about our 1B series connectors or to discuss your requirements, contact us at [email protected] or [email protected], or visit our website.

Building a SLAM mapping or drone scanning system? Send us your signal and cabling requirements — our engineering team will respond with a tailored B series push-pull connector proposal for your SLAM mobile mapping platforms within 24 hours.
