CBZE1BG Push-Pull Connector for Magnetic Particle Inspection Equipment 2026: 1B 2-Contact 15 A Panel Socket

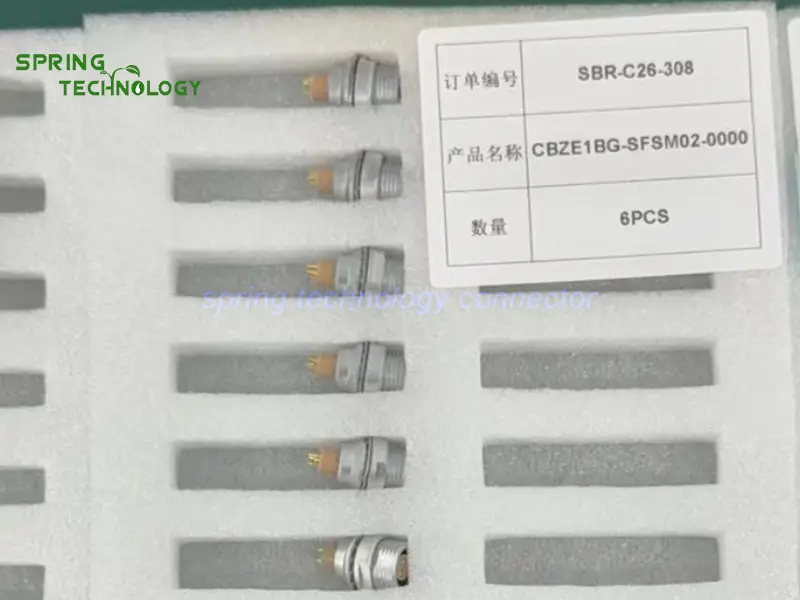

The CBZE1BG-SFSM02-0000 is a CBZE1BG push-pull connector for magnetic particle inspection equipment — a 1B fixed panel-mount circular receptacle with two low-voltage contacts, a published rated current of 15 A, a maximum electrical contact resistance of 3.6 mΩ, a push-pull self-latching system, rear-panel mounting with an M12 panel drill hole, a robust metal housing, IP50 protection, operation from -45 °C to +125 °C and 5,000 mating cycles. Every specification in this guide is backed by the non-destructive testing equipment interconnect engineering of Spring Technology.

Pain point: Delivering magnetizing current to a portable yoke through a panel joint that is opened and closed all day — where every milliohm of contact resistance turns into heat, the connector is re-mated at every inspection site, and the receptacle must sit flush in a compact instrument housing?

Core answer: The CBZE1BG-SFSM02-0000 is a fixed panel-mount circular receptacle designed for reliable electrical connections in industrial equipment, and can be considered for portable magnetic particle inspection equipment — its secure mating mechanism and robust metal housing make it a potential connection solution for power interfaces in industrial non-destructive testing instruments. Portable magnetic particle inspection equipment is widely used in NDT to detect surface and near-surface defects in ferromagnetic materials, with typical targets including steel components, welded joints, castings, forged parts and machinery components. During inspection, an electromagnetic yoke or another magnetizing device generates a magnetic field in the test material: where a discontinuity is present, the field may leak from the surface, attracting magnetic particles and making cracks or other defects visible — so dependable electrical connections between the power supply, control electronics and magnetizing accessories are essential.

The CBZE1BG-SFSM02-0000 is a fixed panel receptacle on the 1B platform, offered with a two-contact configuration for power-style circuits.

• Latching Mechanism: Push-pull self-latching system (secure mating during use, convenient disconnection for moving or servicing)
• Recommended Hardware: Spring Technology Circular Connector and custom cable assembly service
• Key Metric: 2 low-voltage contacts; 15 A published rating; 3.6 mΩ maximum contact resistance; IP50; 5,000 mating cycles

Note: IP50 indicates an indoor or otherwise protected-environment rating rather than water-ingress protection — actual operating current, cable selection and thermal conditions must be checked against the complete system requirements.

Magnetizing power paths are unforgiving. The design advantages below explain why this CBZE1BG push-pull connector for magnetic particle inspection equipment suits NDT power interfaces:

• The CBZE1BG-SFSM02-0000 features two low-voltage contacts, a configuration usable in compatible two-conductor power connection designs such as a power input or output interface for a portable inspection instrument. The actual circuit arrangement must be determined by the equipment manufacturer.

• The connector has a published rated current of 15 A, making it suitable for electrical designs requiring a relatively high-current connection within its specified limits — useful when designing power interfaces for portable inspection equipment. Actual operating current, cable selection and thermal conditions must be checked against the complete system requirements.

• Magnetic particle inspection often involves moving equipment between inspection locations and repeatedly connecting or disconnecting accessories. The push-pull locking mechanism helps secure the mating connector during use and allows convenient disconnection when the equipment needs to be moved or serviced.

• The CBZE1BG-SFSM02-0000 is a fixed receptacle with rear-panel mounting and an M12 panel drill hole. This design allows equipment manufacturers to integrate the connector into the housing of a portable inspection unit, providing an accessible and organised connection point.

• The published specification lists a maximum electrical contact resistance of 3.6 mΩ. Low contact resistance helps limit connection losses and unwanted heating when the connector is operated within its rated electrical conditions — an important consideration for equipment that uses electrical power to generate a magnetic field.

• The connector features a metal housing and is specified for 5,000 mating cycles, supporting repeated connection and disconnection during equipment setup, inspection and maintenance. Its IP50 protection rating suits indoor or otherwise protected environments rather than direct exposure to water or heavy contamination.

Portable magnetic particle inspection equipment needs a dependable electrical interface to support field inspection and routine maintenance, and a suitable panel connector should provide secure mating, reliable electrical contact and convenient integration into the instrument housing. This CBZE1BG push-pull connector for magnetic particle inspection equipment combines a two-contact configuration, 15 A rated current, low contact resistance and a push-pull self-latching mechanism — making it a potential choice for the power connection interface of compatible inspection units, and helping manufacturers create a secure and serviceable panel connection between the instrument and its external electrical accessories.

The 1B shell belongs to Spring Technology’s push-pull connector family for industrial and NDT equipment. The same platform serves this CBZE1BG push-pull connector for magnetic particle inspection equipment and scales across plugs, fixed sockets and PCB sockets.

• Fixed panel sockets: ZEG.1B receptacles (as used here), with PCB-contact variants and elbow PCB-contact variants.
• Fixed sockets: ZGG.1B panel sockets with nut fixing and keying.
• Plugs: TGG.1B straight plugs, including a 302-series insert listed as a matching plug for this receptacle.
• Pin counts: 2–16 contacts across the 1B shell, with key G or keys A…M and R.

• Custom contact allocations and part numbers (such as the CBZE1BG-SFSM02-0000) matched to each instrument’s power circuit.
• Power cable assemblies sized to the required conductor cross-section, with defined cable openings and strain relief.
• Panel cutout and mounting arrangement support for compact inspection housings.
• Mating plug selection support, including keying and contact-layout confirmation.

The CBZE1BG-SFSM02-0000 can be considered for portable magnetic particle inspection equipment as a fixed panel-mount electrical receptacle — its two low-voltage contacts, 15 A rated current, push-pull locking system and durable metal construction suit compatible power connection designs in industrial NDT instruments. This connector shows how Spring Technology serves non-destructive testing equipment, aligning a high-current 1B panel socket with the customer’s inspection unit requirements, and the company also provides professional customization services for both push-pull connectors and cable assemblies, offering tailored solutions to meet your specific technical requirements.

When selecting this connector, manufacturers should verify the required current, cable specifications, mating plug and environmental conditions to ensure reliable operation in the finished inspection system.

For more information about our 1B series connectors or to discuss your requirements, contact us at [email protected] or [email protected], or visit our website. Our engineering team will respond to your CBZE1BG push-pull connector for magnetic particle inspection equipment enquiry within 24 hours.
