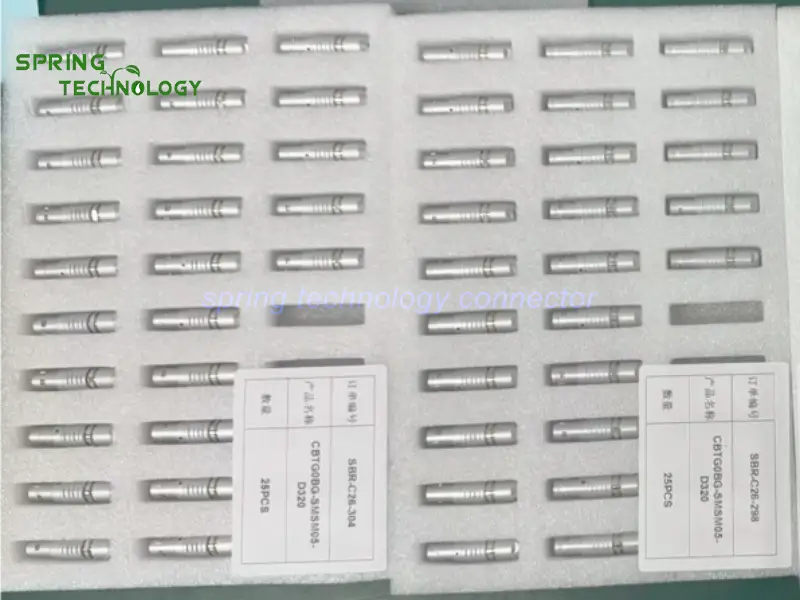

CBTG0BG Push-Pull Connector for Digital Stroboscopes 2026: 0B Series 5-Contact Cable Plug

The CBTG0BG-SMSM05-D320 is a CBTG0BG push-pull connector for digital stroboscopes — a 0B series straight cable plug with five low-voltage contacts, push-pull self-latching, solder termination, a specified cable outside diameter range of 2.30–3.20 mm, IP50 protection, operation from -45 °C to +125 °C, vibration resistance of 10~20,000 Hz at 15 g, 100 g mechanical shock resistance for 6 ms and more than 5,000 mating cycles. Every specification in this guide is backed by the industrial inspection equipment interconnect engineering of Spring Technology.

Pain point: Adding trigger and sensor cables to a handheld stroboscope — where technicians carry the instrument between production lines, plug external pickups in and out repeatedly, and the cable opening has to suit a slim, flexible cord?

Core answer: Spring Technology offers the CBTG0BG-SMSM05-D320 for suitable portable stroboscope cable assemblies where a compact, multi-contact interface is required, with a compact design, push-pull locking and multi-contact connectivity. Portable digital stroboscopes inspect moving components in industrial environments: by producing synchronized flashes of light they make rapidly moving objects appear stationary, helping technicians observe motion patterns and identify potential mechanical problems without physically contacting the moving parts. Common applications include printing presses, packaging machines, conveyor systems and rotating machinery — and depending on the instrument design, electrical connections may be required for trigger inputs, external sensors, control circuits or auxiliary functions.

The CBTG0BG-SMSM05-D320 is a straight cable-mounted plug on the 0B platform, offered with a five-contact configuration.

• Latching Mechanism: Push-pull self-latching system (compatible connectors connect and release through a straightforward push-pull action)
• Recommended Hardware: Spring Technology Circular Connector and custom cable assembly service
• Key Metric: 5 low-voltage contacts; 0B compact shell; IP50; 2.30–3.20 mm cable range; >5,000 mating cycles

Note: IP50 indicates a protected-environment rating rather than water-ingress protection — where the instrument will be used in wet or heavily contaminated surroundings, the complete connector assembly must be assessed for the required protection level.

Stroboscopes travel and their trigger cables change. The design advantages below explain why this CBTG0BG push-pull connector for digital stroboscopes suits portable inspection instruments:

• The CBTG0BG-SMSM05-D320 provides five low-voltage contacts, consolidating multiple electrical circuits into one connector interface depending on the instrument’s circuit design. In a portable digital stroboscope these circuits may be assigned to external trigger signals, auxiliary controls or other low-voltage functions, and using a single multi-contact connector simplifies cable organisation and reduces the need for separate connections. The actual contact assignment must be established by the equipment manufacturer.

• The connector uses Spring Technology’s push-pull self-latching system, which allows compatible connectors to be connected and released through a straightforward push-pull action. Industrial inspection technicians may need to connect external sensors or trigger cables repeatedly while moving between production lines and machines — a suitable push-pull connector makes these operations more convenient and helps reduce accidental disconnection during normal handling.

• The CBTG0BG-SMSM05-D320 is a straight cable-mounted plug designed for solder termination, with a specified cable outside diameter range of 2.30–3.20 mm. The compact 0B format helps equipment designers organise cable interfaces in handheld or portable instruments where space and cable routing matter — and before assembly, manufacturers should verify that the selected cable matches the connector’s specified diameter and termination requirements.

• Some digital stroboscopes support external triggering or synchronization with machinery, and a suitable electrical interface connects the instrument to a compatible sensor or control system. A trigger signal from a machine sensor may be used to synchronize flashes with a repeating motion: the connector provides the physical electrical interface while the stroboscope’s electronics determine synchronization behavior and performance. Correct wiring, shielding, grounding and compatibility with the external trigger source remain important for reliable operation.

• The published specification lists an IP50 protection rating, indicating a connector intended for protected environments rather than applications requiring water-ingress protection. For stroboscope use in production facilities, equipment designers should consider exposure to dust, oil, cleaning fluids and accidental impacts — and if the instrument will be used in wet or heavily contaminated environments, the complete connector assembly must be assessed for the required protection level.

The proposed application of this CBTG0BG push-pull connector for digital stroboscopes may be considered in portable instruments used in:

• Printing press inspection: supporting compatible trigger or control cable connections when observing repeating print and feed mechanisms.
• Packaging machinery maintenance: helping organise external electrical connections during inspection of sealing jaws, rotating rollers and other repetitive mechanisms.
• Conveyor system diagnostics: providing a cable interface for instruments used to observe repetitive movement and investigate mechanical irregularities.
• Rotating machinery inspection: supporting external sensor or synchronization connections where required by the stroboscope’s design.

These are potential equipment-design applications — not claims that the exact connector model has been verified in a specific commercial stroboscope.

The 0B shell belongs to Spring Technology’s compact push-pull connector family for portable instruments and industrial inspection equipment. The same platform serves this CBTG0BG push-pull connector for digital stroboscopes and scales across plugs, sockets and contact counts.

• Plugs: TG 0B straight plugs with cable collet, including the five-contact layout used here.
• Elbow plugs: TH 0B elbow plugs for angled cable exits in tight enclosures.
• Sockets: ZGG.0B fixed panel sockets and ZX 0B PCB sockets.
• Pin counts: 2–9 contacts across the 0B shell, with key G or keys A…M and R.

• Custom contact allocations and part numbers (such as the CBTG0BG-SMSM05-D320) matched to each instrument’s wiring plan.
• Trigger and sensor cable assemblies with defined cable openings and strain relief for handheld instruments.
• Shielding and grounding support for trigger and synchronization signal circuits.
• Mating socket selection support, including keying and contact-layout confirmation.

The CBTG0BG-SMSM05-D320 is a five-contact, straight cable-mounted connector with push-pull self-latching and solder termination — features that make it a candidate for portable digital stroboscopes needing a compact, detachable connection for compatible trigger, control or auxiliary circuits. This connector shows how Spring Technology serves industrial inspection equipment, aligning a compact 0B plug with the customer’s stroboscope requirements, and the company also provides professional customization services for both push-pull connectors and cable assemblies, offering tailored solutions to meet your specific technical requirements.

Its suitability depends on the instrument’s electrical architecture and operating environment. Before selecting the connector, manufacturers should verify contact assignment, cable compatibility, mating connector, electrical ratings and environmental protection requirements.

For more information about our 0B series connectors or to discuss your requirements, contact us at [email protected] or [email protected], or visit our website. Our engineering team will respond to your CBTG0BG push-pull connector for digital stroboscopes enquiry within 24 hours.
