CBZE1KG Push-Pull Connector for GNSS Surveying Receivers 2026: 1K Series 10-Contact IP68 PCB Socket for Outdoor Positioning Terminals for US Customers

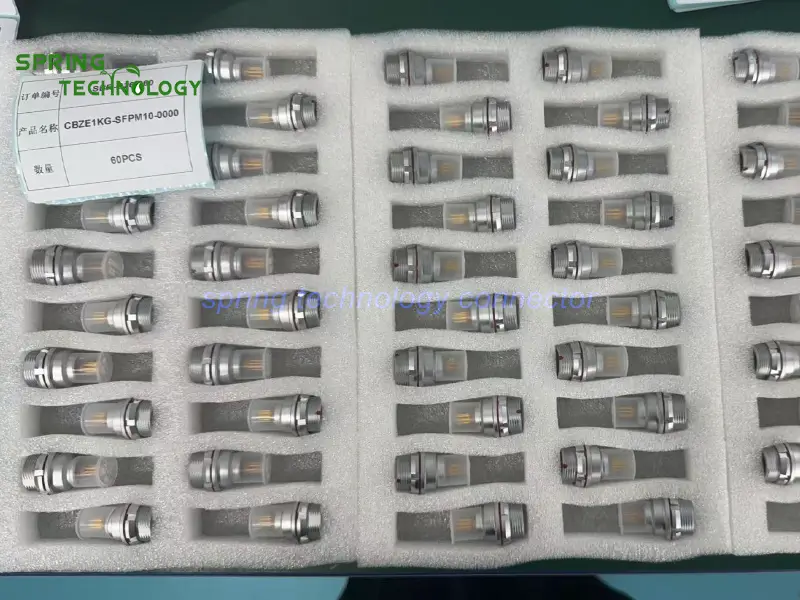

The CBZE1KG-SFPM10-0000 is a CBZE1KG push-pull connector for GNSS surveying receivers — a compact 10-contact connector with IP68 protection, straight PCB termination, rear-panel mounting and a push-pull locking mechanism, built on the ZEG.1K platform (equivalent to the EEG.1K.310.CLN configuration). Every specification in this guide is backed by the outdoor positioning interconnect engineering of Spring Technology.

Pain point: Interfacing a GNSS surveying terminal that lives outdoors — where rain, dust, vibration and repeated mating cycles threaten the device panel, and antennas, batteries, positioning modules and processors all compete for internal space?

Core answer: For US customers, Spring Technology supplied the CBZE1KG-SFPM10-0000, a panel-mount circular CBZE1KG push-pull connector for GNSS surveying receivers. It features a “1K” size housing and 10 low-voltage contacts designed for direct connection to internal PCBs via straight pins, and its “K-Series” design targets outdoor and exposed environments with an official IP68 protection rating. In fields such as surveying and mapping, geographic information systems (GIS), engineering surveying and high-precision positioning, GNSS terminals often operate outdoors for extended periods, so the connector must ensure electrical connectivity while providing excellent environmental protection and mechanical reliability. The connector is equivalent to the EEG.1K.310.CLN configuration.

This GNSS surveying connector is built on the ZEG.1K fixed socket with PCB contact platform in the 1K shell family, Spring Technology’s rugged outdoor connector series.

• Latching Mechanism: Push-pull self-locking system (quick lock, no threaded tools required for release)
• Recommended Hardware: Spring Technology Circular Connector
• Key Metric: IP68 protection; 10 low-voltage contacts; PCB straight termination; 100 g shock / 15 g vibration resistance

Survey terminals are deployed on roads, construction sites, bridges and in mining areas. The design advantages below explain why this CBZE1KG push-pull connector for GNSS surveying receivers suits that environment:

• The challenge: GNSS surveying terminals are frequently used on roads, construction sites, bridges and in mining areas, and without effective protection at the connector interface, rain and dust could compromise long-term operation.
• The advantage: the connector meets the IP68 standard, providing superior protection for the connection interface of outdoor GNSS equipment and enhancing the interface’s environmental resilience for long-term outdoor positioning and surveying.

• The challenge: a single external interface often needs to handle power, control, data and other auxiliary signal connections simultaneously.
• The advantage: 10 low-voltage contacts with a rated current of 2 A and a 0.5 mm contact diameter reduce the number of external interfaces, letting designers assign specific functions to different contacts based on system circuitry and simplifying the device’s interface layout.

• The challenge: compact GNSS devices must accommodate antennas, batteries, positioning modules, processors and communication modules.
• The advantage: the PCB straight-termination design for rear-panel mounting connects directly to the internal PCB, eliminating the extra space that traditional wire harness connections require and helping optimize internal space and interface layout.

• The challenge: GNSS surveying equipment is relocated and redeployed between survey points, requiring frequent connection and disconnection of external connectors.
• The advantage: the push-pull self-locking mechanism locks quickly upon mating and requires no threaded tools for disconnection, with a mating cycle life of 5,000 cycles — valuable for engineering survey teams that deploy equipment frequently.

• The challenge: outdoor terminals may be mounted on tripods, survey vehicles or other mobile platforms, so interfaces must withstand significant mechanical shock and vibration.
• The advantage: the specifications include 100 g shock resistance and 15 g vibration resistance, making the connector suitable for industrial and test-and-measurement equipment requiring high mechanical reliability.

• The advantage: GNSS devices have stringent RF and digital signal integrity requirements; the metal connector body with excellent shielding performance helps minimize the impact of the external electromagnetic environment on the device’s signal connections.

The 1K shell is Spring Technology’s outdoor-rated connector family, engineered for exposed environments with IP68 protection and rugged mechanical performance. The same platform serves this GNSS surveying connector and scales across plug and socket variants.

• Sockets: ZEG.1K fixed sockets, including the PCB contact version in this order and elbow PCB contact versions.
• Plugs: TGG.1K straight plugs and matching cable connectors.
• Pin counts: 2 to 16 contacts on the 1K shell.
• Termination: straight PCB termination, rear-panel mounting and solder versions.

• Custom contact allocations and part numbers (such as the CBZE1KG-SFPM10-0000 / EEG.1K.310.CLN) matched to each terminal’s signal plan.
• PCB footprint and rear-panel mounting customization.
• Shielding and sealing verification for GNSS signal integrity.
• Pre-wired antenna and communication harnesses.

High-precision positioning depends on interfaces that survive the field. This CBZE1KG push-pull connector for GNSS surveying receivers serves the full range of outdoor measurement equipment.

Handheld and pole-mounted surveying receivers connect their internal PCBs directly to the panel socket, with IP68 protection against rain and dust.

Positioning terminals used for engineering surveying and GIS work carry power, control and data over the same 10-contact interface.

Where terminals are mounted on vehicles or tripods, the 100 g shock and 15 g vibration resistance keep the interface stable through movement.

For Spring Technology, this 1K connector delivery for US customers combines environmental protection, multi-contact connectivity and rapid push-pull operation — its 10-contact configuration, IP68 protection, PCB mounting capability, 5,000-cycle mating endurance and high resistance to shock and vibration make the CBZE1KG-SFPM10-0000 (EEG.1K.310.CLN) well suited for demanding outdoor measurement equipment. Spring Technology also provides professional customization services for both push-pull connectors and cable assemblies, offering tailored solutions to meet your specific technical requirements.

For more information about our 1K series connectors or to discuss your requirements, contact us at [email protected] or [email protected], or visit our website.

Building a GNSS surveying terminal or high-precision positioning device? Send us your signal and mounting requirements — our engineering team will respond with a tailored CBZE1KG push-pull connector proposal for your GNSS surveying receivers within 24 hours.
