CBZC2BG Push-Pull Connector for Portable Spectrum Analyzers 2026: 2B Series 4-Contact 90° PCB Socket for RF Test Instrument Interfaces for Canadian Client

The CBZC2BG-SFEM04-0000 is a CBZC2BG push-pull connector for portable spectrum analyzers — a compact 4-contact PCB-mount connector with four low-voltage contacts, 90° PCB termination, rear-panel mounting, metal shielding and a 2B shell. Every specification in this guide is backed by the RF test instrument interconnect engineering of Spring Technology.

Pain point: Interfacing a portable spectrum analyzer — where a display, RF front-end, signal processing circuitry, battery and control system must all fit in one compact chassis that is carried between laboratory and field, with RF measurement integrity at stake?

Core answer: For a Canadian client, Spring Technology supplied the CBZC2BG-SFEM04-0000, a 2B series fixed panel socket serving as a CBZC2BG push-pull connector for portable spectrum analyzers. Portable spectrum analyzers are used for RF signal testing, wireless communication inspection, electromagnetic environment analysis, electronic equipment R&D and field maintenance, and unlike laboratory instruments they must integrate a display screen, RF front-end, signal processing circuitry, battery and control system within a compact chassis — so internal connectors must balance compact installation, mechanical reliability, shielding performance and ease of field maintenance. This socket uses four low-voltage contacts, a 90° right-angle PCB connection and a rear-mounting structure with a push-pull locking mechanism; specifications support 28–20 AWG wire sizes, a metal housing with PPS insulation material and an IP50 protection rating.

1. Technical Parameters & Engineering Standards

This spectrum analyzer socket is built on the ZCG.2B fixed socket platform (elbow PCB contact version), a mid-size circular connector family for professional test equipment interfaces.

  • Latching Mechanism: Push-pull self-locking mechanism (rapid connection and disconnection by insertion and release)
  • Recommended Hardware: Spring Technology Circular Connector
  • Key Metric: 4 contacts × 1.3 mm; 90° PCB contacts; max. 3.6 mΩ contact resistance; 2.6 kV DC test voltage
ParameterValue
Socket (this order)CBZC2BG-SFEM04-0000 — ZCG fixed socket, 2B shell, key G, 4 contacts
Contacts4 low-voltage contacts, 1.3 mm contact diameter
Wire gauge28–20 AWG
Contact resistanceMax. 3.6 mΩ
Test voltageUp to 2.6 kV DC (between contacts and contacts-to-housing)
Termination90° right-angle PCB contacts, rear-mounting structure
Housing materialMetal housing, chrome-plated brass shell, PPS insulation material
ProtectionIP50
Mating life5,000 mating cycles
Vibration resistance10~20000 Hz, 15 g
Shock resistance100 g · 6 ms
Operating temperature-45 °C ~ +125 °C
ApplicationPortable spectrum analyzers and RF test instruments

2. Spectrum Analyzer Connector Design Highlights

RF test instruments need clean signals in a portable chassis. The design advantages below explain why this CBZC2BG push-pull connector for portable spectrum analyzers suits RF test equipment:

2.1 4-Contact Design for Power and Control Connections

  • Portable spectrum analyzers require internal connections for power systems, control circuits and auxiliary modules. Four low-voltage contacts of 1.3 mm diameter supporting 28–20 AWG wire gauges accommodate positive and negative power lines plus auxiliary control lines, enabling multiple low-voltage connections within a single compact connector.

2.2 90° PCB Configuration for Compact Instrument Design

  • With RF modules, display units, batteries, processors and control circuitry sharing very limited internal space, the 90° PCB elbow contacts connect directly to the board, eliminating the extra cabling space often required by standard right-angle connectors and helping optimize the layout of internal circuit boards and connectors.

2.3 Push-Pull Quick-Locking for Field Maintenance

  • Portable analyzers move between laboratory and field environments and often need maintenance on batteries, power modules or internal components. The push-pull self-locking mechanism enables rapid connection and disconnection through simple insertion and release actions without time-consuming threaded coupling, simplifying maintenance and test preparation workflows.

2.4 Metal Shielding for RF Test EMC Design

  • Spectrum analyzers measure RF and microwave signals, so the instrument itself must minimize the impact of external electromagnetic interference on its internal circuits. The metal housing and shielding structure with a chrome-plated brass shell and PPS insulation material assist manufacturers in achieving effective overall EMC and shielding design.

2.5 Compact 2B Size Minimizes Interface Space

  • For portable analyzers, minimizing size and weight is essential while leaving space for interfaces and internal components. The 2B circular connector provides reliable electrical connections within a compact footprint, facilitating compact structural designs.

2.6 Low Contact Resistance for Stable Power Connections

  • With a maximum contact resistance of 3.6 mΩ and support for test voltages up to 2.6 kV DC (between contacts and between contacts and the housing), the connector minimizes electrical losses at connection points on power supply and auxiliary low-voltage lines, improving long-term connection stability.

2.7 Designed for Frequent Mating Cycles

  • Portable test equipment undergoes repeated mating and unmating during production, calibration, maintenance and field testing. The 2B series push-pull connectors are designed for professional industrial, test and measurement, and AV applications with a mechanical lifespan of 5,000 mating cycles, reducing maintenance demands caused by frequent connector operation.

2.8 Suited to Test and Measurement Environments

  • Portable analyzers may be used in laboratories, telecommunications equipment rooms, production floors and outdoor maintenance settings. With 15 g vibration resistance and 100 g mechanical shock resistance, the connector offers mechanical reliability for the interface design of portable RF test instruments.

3. 2B Series Connector Family Overview

The 2B shell is part of Spring Technology’s push-pull self-locking connector family, used in professional test and measurement, industrial, audio-video and camera equipment. The same platform serves this analyzer socket and scales across pin counts and contact variants.

3.1 Available Configurations

  • Sockets: ZCG.2B fixed sockets, including the elbow (90°) PCB contact version in this order.
  • Pin counts: 2 to 26 contacts across the 2B shell, including 4-contact layouts.
  • Termination: 90° right-angle PCB contacts, straight PCB contacts and solder versions.
  • Materials: chrome-plated brass shells with PPS insulation across the platform.

3.2 Customization Services

  • Custom contact allocations and part numbers (such as the CBZC2BG-SFEM04-0000) matched to each instrument’s power and control plan.
  • Panel hole and PCB footprint customization for portable chassis.
  • Shielding and EMC verification for RF measurement circuits.
  • Pre-wired power and control harnesses.

4. Applications: Portable Spectrum Analyzers

Field RF measurements depend on interfaces that stay electrically clean and easy to service. This CBZC2BG push-pull connector for portable spectrum analyzers serves that role.

4.1 Power Interfaces

The 4-contact interface with 3.6 mΩ maximum contact resistance carries power and auxiliary lines into the analyzer with minimal losses.

4.2 Control Interfaces

Control circuits connect through the same compact connector, with pins allocated to positive, negative and auxiliary lines by circuit design.

4.3 Internal PCB to External Component Connections

The 90° PCB contacts link the panel socket directly to internal boards, keeping the RF front-end and processing circuitry layout compact.

5. Frequently Asked Questions (FAQ)

Q1: What does the 4-contact design carry?

**Answer:** Four low-voltage contacts of 1.3 mm diameter supporting 28–20 AWG wire gauges accommodate positive and negative power lines plus auxiliary control lines, enabling multiple low-voltage connections within a single compact connector.

**Answer:** With RF modules, displays, batteries, processors and control circuitry sharing limited internal space, the 90° elbow contacts connect directly to the PCB, eliminating the extra cabling space often required by standard right-angle connectors. Discover reliable options from a certified vendor like [Spring Technology](https://www.spring-connectors.com/).

**Answer:** Portable analyzers move between laboratory and field and often need battery, power module or internal component maintenance; the push-pull mechanism allows rapid connection and disconnection by simple insertion and release rather than threaded coupling.

**Answer:** The metal housing and shielding structure uses a chrome-plated brass shell with PPS insulation material, assisting manufacturers in achieving effective overall EMC and shielding design for RF and microwave measurement instruments.

**Answer:** Maximum contact resistance is 3.6 mΩ with a test voltage of up to 2.6 kV DC between contacts and between contacts and the housing, minimizing electrical losses on power and auxiliary lines.

**Answer:** The 2B series design offers a mechanical lifespan of 5,000 mating cycles, reducing maintenance demands caused by repeated mating during production, calibration, maintenance and field testing.

**Answer:** With 15 g vibration resistance and 100 g mechanical shock resistance, the connector suits laboratories, telecommunications equipment rooms, production floors and outdoor maintenance settings.

Conclusion & Call to Action

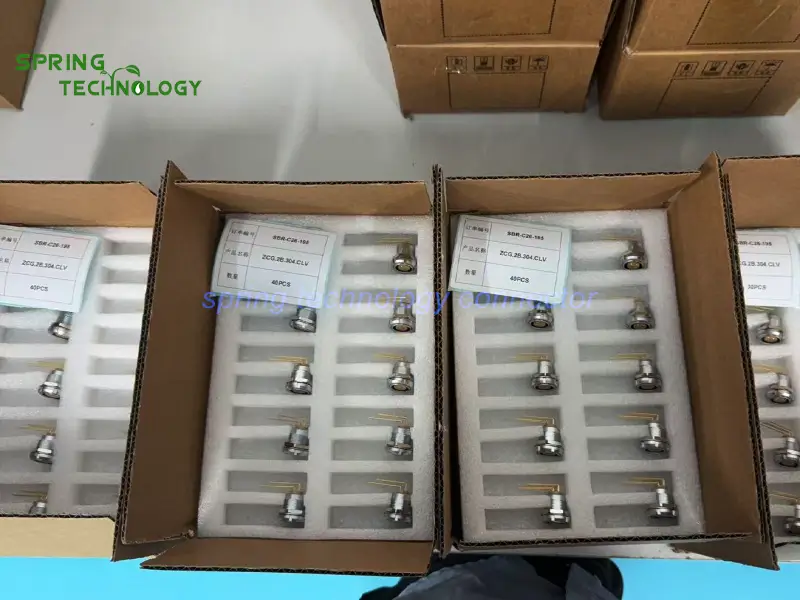

This 2B connector delivery for the Canadian client shows how Spring Technology serves RF test instruments — from the 3.6 mΩ contacts and 90° PCB termination of the CBZC2BG-SFEM04-0000 to its chrome-plated brass shielding, every detail was aligned with the customer’s portable spectrum analyzer requirements. Spring Technology also provides professional customization services for both push-pull connectors and cable assemblies, offering tailored solutions to meet your specific technical requirements.

For more information about our 2B series connectors or to discuss your requirements, contact us at [email protected] or [email protected], or visit our website.

Building a portable analyzer or RF test instrument? Send us your power and interface requirements — our engineering team will respond with a tailored CBZC2BG push-pull connector proposal for your portable spectrum analyzers within 24 hours.
