TG Body Style 5F Series Connectors for Laser Cleaning Machines 2026: 4-Pin and 10-Pin Plugs with ZL Body Style 5F Receptacles

The TG Body Style 5F Series 4-pin and 10-pin connectors, paired with compatible ZL Body Style 5F Series receptacles from Spring Technology, can be evaluated for control signals, operator commands and safety interlock interfaces in industrial laser cleaning equipment — with push-pull locking, solder termination, IP68 protection (mated), a 5F platform cable opening range of 5.5–11.5 mm, operation from -55 °C to +145 °C and more than 3,000 mating cycles. Every specification in this guide is backed by the industrial laser equipment interconnect engineering of Spring Technology.

Pain point: Running operator commands, status feedback and safety interlock circuits between a handheld cleaning head and the machine controller — where the head must detach for servicing, circuit counts differ between machine variants, and the interface must never be confused with laser power delivery?

Core answer: Spring Technology supplies TG Body Style 5F Series plugs and matching ZL Body Style 5F Series receptacles that can be evaluated for detachable low-voltage connections between the handheld cleaning head and the machine’s control electronics. Industrial laser cleaning machines are used to remove rust, oxide layers, paint and surface contaminants from metal components, and in handheld systems the cleaning head must communicate with the main controller to support operator commands, operating status feedback and safety-related control functions. The 4-pin configuration may suit simpler control interfaces with a limited number of circuits, while the 10-pin configuration accommodates more signal paths when the equipment requires additional feedback or control connections — and these connectors are intended to be evaluated as electrical interface components, not as connections for delivering the laser beam or high-power laser output.

Both of these TG body style 5F series connectors for laser cleaning machines are built on the 5F platform, the largest shell size in Spring Technology’s push-pull circular connector range, with a plug (TG body style) and a hermetic socket (ZL body style).

• Latching Mechanism: Push-pull fastening on the plug, mating with the ZL body style 5F receptacle (push-pull operation rather than a threaded coupling procedure)
• Recommended Hardware: Spring Technology Circular Connector
• Key Metric: 4-pin and 10-pin configurations; IP68 (mated); -55 °C ~ +145 °C; >3,000 mating cycles

Note: the exact mating compatibility should be confirmed against the complete part numbers before production. Engineers should verify the full part numbers, mating compatibility, current and voltage ratings, environmental protection requirements, cable specifications and the intended function of each contact.

Laser cleaning equipment is serviced often and built in variants. The design advantages below explain why these TG body style 5F series connectors for laser cleaning machines suit handheld head and interlock interfaces:

• Different laser cleaning machines have different control requirements: a basic handheld cleaning head may need only a limited set of low-voltage connections, while a more advanced system may require additional control and status circuits. The 4-pin and 10-pin options give equipment designers flexibility when planning their electrical interfaces — the lower-contact-count version simplifies a basic design, while the 10-pin version offers more potential connection paths within a single connector interface. This flexibility helps manufacturers standardise their connector family across equipment variants.

• Industrial laser cleaning equipment requires cleaning-head inspection, cable replacement or servicing of the control assembly. A detachable connector interface lets technicians disconnect a compatible cable assembly without rewiring every individual conductor. When correctly integrated with the machine’s control architecture, the TG Body Style 5F Series plug and matching ZL Body Style 5F Series receptacle support more convenient maintenance and replacement of connected modules.

• A handheld laser cleaning system may incorporate operator commands, equipment status indicators, enable signals or other low-voltage control circuits. Depending on the circuit design, a multi-contact connector brings these connections together at a defined interface: the 4-pin version suits simpler interfaces, whereas the 10-pin version is considered where more independent signal connections are required. This reduces the need for multiple separate connector interfaces and makes internal wiring easier to organise — with all signal assignments checked against the equipment’s electrical schematic.

• The selected configurations use a push-pull fastening design, so the plug can be connected and disconnected through a push-pull operation rather than a threaded coupling procedure. This is useful for equipment requiring routine setup, maintenance or replacement of a detachable control cable. The final design should follow the connector manufacturer’s instructions and confirm the exact locking mechanism of the selected model.

• Control electronics in handheld laser cleaning equipment share limited space with trigger mechanisms, status indicators, cable routing and enclosure components. A circular multi-contact connector provides a defined interface between the cable assembly and the equipment enclosure, and choosing between 4-pin and 10-pin configurations lets engineers balance circuit requirements with connector layout and available space. The overall space-saving benefit depends on the selected connector dimensions, cable diameter, panel arrangement and required strain relief.

• Laser cleaning equipment manufacturers develop several machine variants with different control functions or accessory options. Using a connector family with multiple contact configurations supports a consistent design approach across product versions — for example, a simpler handheld head may use a 4-pin interface while a more feature-rich head requires a 10-pin interface. This is a possible design strategy rather than a prescribed pin assignment, and manufacturers should consider connector keying, mating compatibility and wiring identification to reduce the risk of incorrect connections.

For industrial laser cleaning equipment, the connection between the handheld cleaning head and the control electronics must be designed around the machine’s electrical, mechanical and operational requirements — the design challenge these TG body style 5F series connectors for laser cleaning machines address. The 4-pin and 10-pin configurations offer different contact-count options, while a compatible ZL Body Style 5F Series receptacle provides the corresponding equipment-side interface. Potential benefits include:

• Flexible selection of contact count for different control designs
• Detachable cable connections for servicing
• Consolidated low-voltage control and feedback wiring
• A defined connector interface between the handheld head and control unit
• The ability to develop equipment variants around a consistent connector family
• IP68 protection (mated) and a wide -55 °C ~ +145 °C operating range for demanding shop-floor conditions

Before implementation, engineers should verify the full part numbers, mating compatibility, current and voltage ratings, environmental protection requirements, cable specifications and the intended function of each contact.

The 5F shell belongs to Spring Technology’s push-pull connector family for industrial equipment, offering the highest contact density of the range — 2 to 40 pins. The same platform serves this TG body style 5F series connectors for laser cleaning machines range and scales across contact variants.

• Plugs (TG body style): straight plugs including bend-relief versions for cable assemblies.
• Receptacles (ZL body style): hermetic sockets, including elbow print contact versions for equipment-side mounting.
• Pin counts: 2–40 contacts across the 5F shell, including the 4-contact and 10-contact layouts.
• Keying and identification: multiple key positions to prevent mismating across equipment variants.

• Custom contact allocations and part numbers matched to each machine’s control schematic.
• Cable assembly builds with bend relief and defined cable opening ranges.
• Shielding and EMC verification for control and interlock circuits.
• Mating plug / receptacle selection support, including keying and contact-layout confirmation.

These are potential engineering applications for these TG body style 5F series connectors for laser cleaning machines — they do not establish validation of these exact configurations for a specific laser cleaning machine:

Control and interlock interfaces between a handheld cleaning head and the machine controller.

Laser cleaning equipment operator trigger and status circuits, and industrial laser surface-treatment system control modules.

Detachable cable assemblies for laser cleaning accessories and low-voltage interfaces between handheld tools and machine controllers.

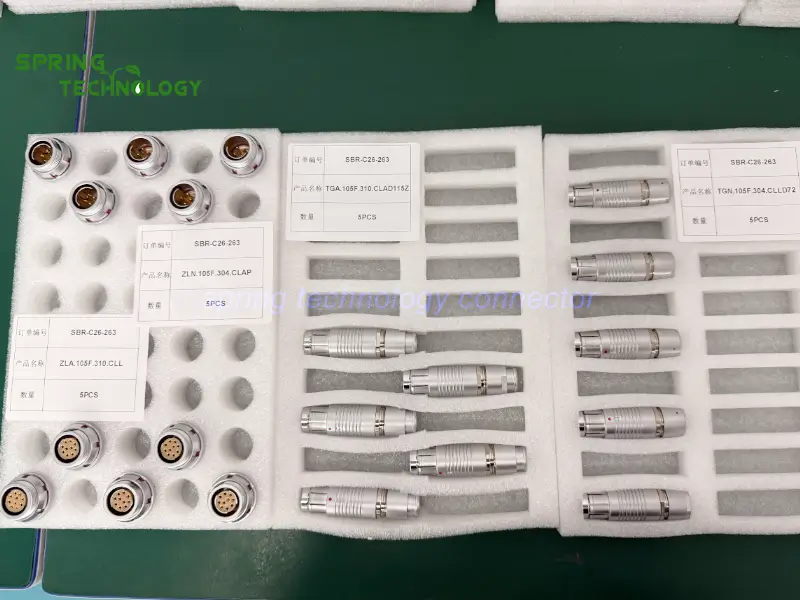

This 5F connector delivery shows how Spring Technology serves industrial laser equipment — from the 4-pin interface for simpler cleaning-head controls to the 10-pin version for fuller feedback wiring, with matching ZL body style 5F Series receptacles and IP68 mated protection, every detail was aligned with the customer’s laser cleaning machine requirements. Spring Technology also provides professional customization services for both push-pull connectors and cable assemblies, offering tailored solutions to meet your specific technical requirements.

For more information about our 105F series connectors or to discuss your requirements, contact us at [email protected] or [email protected], or visit our website.

Building a laser cleaning system or handheld surface-treatment tool? Send us your control and interlock requirements — our engineering team will respond with a tailored TG body style 5F series connectors proposal for your laser cleaning machines within 24 hours.
