Push-Pull Connector for Industrial Robotics 2026: CBZC0BG-SFSM04, CBZC0BG-SFSM06 and CBTE0BG-SMSM06 for High-Precision Test, Measurement and Industrial Robotics for Russian Customers

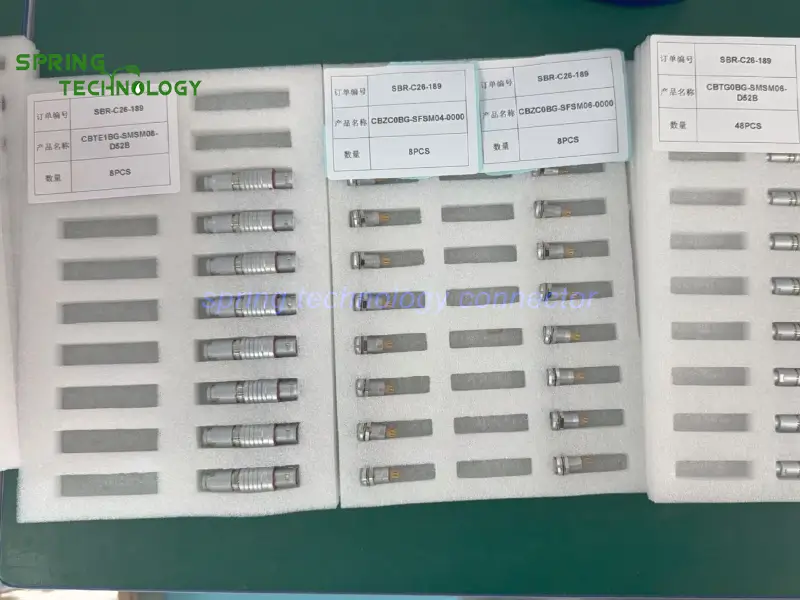

Spring Technology supplied Russian customers with an push-pull connector for industrial robotics set — the CBZC0BG-SFSM04 master power socket, the CBZC0BG-SFSM06 backplane serial socket and the CBTE0BG-SMSM06 flexible sensor plug — covering server power delivery, backplane communication and robotic sensor cabling, all rated for over 5,000 mating cycles with gold-plated contacts. Every specification in this guide is backed by the precision interconnect engineering of Spring Technology.

Pain point: Building high-precision test and measurement systems — where a lab server needs clean master power, an automated test card needs reliable serial lines into the microprocessor, and robotic gripper jaws need flexible sensor cables that survive millions of flex cycles without signal loss?

Core answer: For Russian customers in high-precision test, measurement and industrial robotics, Spring Technology supplied three B series connectors: the CBZC0BG-SFSM04-0000 as the primary master power delivery port for heavy laboratory data-logging servers or industrial automation cabinets; the CBZC0BG-SFSM06-0000 built into modular backplanes or automated test cards to funnel 6 separate lines of serial communication (such as CAN-bus, RS-422 or SPI data arrays) into a microprocessor board; and the CBTE0BG-SMSM06-D52B for high-flexibility sensor cables connecting multi-axis strain gauges, absolute encoders or automated robotic gripper jaws back to the main processing board.

This push-pull connector for industrial robotics set combines two ZCG fixed socket variants with a TE-style splash-protected plug, all on the compact 0B shell. Together they cover the power, communication and sensor links of precision test and robotics systems.

• Latching Mechanism: Push-pull self-latching system (anti-vibration & shockproof)
• Recommended Hardware: Spring Technology Circular Connector
• Key Metric: 4-pin master power; 6-line serial backplane; 6-pin flexible sensor link; >5,000 mating cycles

Precision test and robotics systems separate clean power, fast communication and flexible sensing into three distinct signal paths. The design highlights below are why this push-pull connector for industrial robotics set is specified for high-precision applications:

• Dedicated master power port — the CBZC0BG-SFSM04-0000 gives heavy lab servers and automation cabinets a single, reliable power delivery socket on the panel.
• 6-line backplane serial interface — the CBZC0BG-SFSM06-0000 funnels CAN-bus, RS-422 or SPI data arrays from modular backplanes and automated test cards directly into a microprocessor board.
• High-flexibility sensor cable plug — the CBTE0BG-SMSM06-D52B is built for sensor cables that flex continuously with gripper jaws and moving axes, keeping strain-gauge and encoder signals intact.
• Splash-protected TE-style plug — IP54 when mated adds protection for sensor cables routed through machine enclosures and test areas.
• Gold-plated contacts — stable, low-resistance connections for precise measurement signals and clean serial communication.
• Proven durability — >5,000 mating cycles and 100 g·6 ms shock tolerance across all three connectors.

The B series (0B, 1B and 2B shells) is Spring Technology’s compact push-pull platform for precision instruments, test systems and robotics. The three push-pull connector for industrial roboticss in this order draw on the ZC socket and FE plug design families, keeping spares and tooling consistent across the customer’s equipment.

• ZC fixed sockets: panel- and board-mount sockets in 0B (2–9 pin), 1B (2–16 pin) and 2B (2–26 pin) shells, with straight and elbow PCB contact variants.
• TE-style plugs: splash-protected plugs with enhanced sealing, in 0B shell with 2 to 9 pins.
• Pin counts: 2 to 26 pins with solder (SMSM/SFSM) termination across the family.
• Keying: key G standard, with keys A–M and R available for multi-connector panels.

• Custom pin allocations and part numbers (such as the CBZC0BG-SFSM04-0000) matched to each system’s power and signal plan.
• High-flexibility cable assemblies for robotic and moving-axis applications.
• Key orientation selection to prevent mismating on backplanes and control panels.
• Sealing options including splash-protected plug variants for machine environments.

High-precision systems need power, communication and sensing to work together without interference. This push-pull connector for industrial robotics set covers those three links across the customer’s equipment.

Heavy laboratory data-logging servers and industrial automation cabinets draw their main power through a single panel port. The CBZC0BG-SFSM04-0000 provides that master power delivery socket with a secure push-pull lock and gold-plated contacts.

Modular backplanes and automated test cards need clean serial links into the microprocessor board. The CBZC0BG-SFSM06-0000 push-pull connector for industrial robotics carries 6 separate lines of CAN-bus, RS-422 or SPI data arrays, keeping test and measurement traffic reliable.

Multi-axis strain gauges, absolute encoders and automated robotic gripper jaws send feedback to the main processing board through cables that flex continuously. The CBTE0BG-SMSM06-D52B push-pull connector for industrial robotics terminates these high-flexibility sensor cables with a splash-protected, gold-contact plug.

This B series connector delivery for Russian customers shows how Spring Technology covers the power, communication and sensing links of high-precision systems — from the CBZC0BG-SFSM04-0000 master power socket to the CBZC0BG-SFSM06-0000 backplane serial socket and the CBTE0BG-SMSM06-D52B flexible sensor plug, every connector was aligned with the customer's test, measurement and robotics requirements. Spring Technology also provides professional customization services for both push-pull connectors and cable assemblies, offering tailored solutions to meet your specific technical requirements.

For more information about our 0B series connectors or to discuss your requirements, contact us at [email protected] or [email protected], or visit our website.

Building a precision test or robotics system? Send us your power, communication and sensor requirements — our engineering team will respond with a tailored push-pull connector for industrial robotics proposal within 24 hours.
