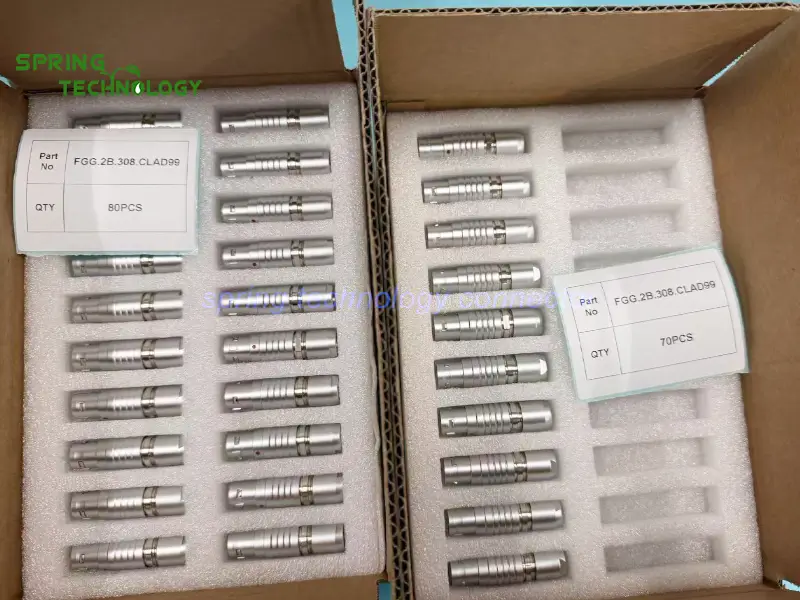

CBTG2BG Push-Pull Connector for Ultrasonic Plastic Welding Controllers 2026: 2B Series 8-Contact Plug for Welding Cycle Control Interfaces

The CBTG2BG-SMSM08-D990 is a CBTG2BG push-pull connector for ultrasonic plastic welding controllers — an eight-contact plug in the 2B series with a push-pull self-latching mechanism, solder termination, IP50 protection, cable openings from 1.5 to 9.7 mm across the platform, up to 5,000 mating cycles and shielding of at least 75 dB at 10 MHz. Every specification in this guide is backed by the welding automation interconnect engineering of Spring Technology.

Pain point: Keeping a welding controller’s cycle-start, status, trigger and feedback circuits dependable while horns are changed, fixtures are swapped and cabinets are serviced — on a machine that cannot afford long downtime in a repetitive production line?

Core answer: Spring Technology supplies the CBTG2BG-SMSM08-D990, an eight-contact plug in the 2B connector family that can be evaluated for compatible low-voltage control and signal interfaces in industrial ultrasonic welding equipment. An industrial ultrasonic plastic welding system typically consists of an ultrasonic generator, converter, booster, welding horn, mechanical press and electronic control unit, with the controller managing the welding sequence and coordinating operating commands and feedback signals. Electrical connections between the controller and auxiliary modules must be secure, easy to service and suitable for the system’s electrical requirements.

1. Technical Parameters & Engineering Standards

This welding controller connector is built on the 2B series push-pull platform, a mid-size circular connector family designed for indoor or protected environments.

  • Latching Mechanism: Push-pull self-latching mechanism (plug connected and released without repeatedly rotating a threaded coupling)
  • Recommended Hardware: Spring Technology Circular Connector
  • Key Metric: 8 low-voltage contacts; IP50; up to 5,000 mating cycles; shielded construction
ParameterValue
Plug (this order)CBTG2BG-SMSM08-D990 — TG plug, 2B shell, key G, 8 contacts
Contacts8 low-voltage contacts
Current & voltage ratingDetermined by the selected contact configuration, use environment and cable — confirmed per exact model
TerminationSolder termination
Cable diameterCable opening 1.5–9.7 mm (2B platform)
ProtectionIP50 (indoor or protected environments)
ShieldingMin. 75 dB at 10 MHz, 40 dB at 1 GHz
Mating cyclesUp to 5,000 mating cycles
Shock resistance100 g · 6 ms
Vibration resistance10~20000 Hz, 15 g
Operating temperature-45 °C ~ +125 °C (2B platform)
HousingChrome-plated brass shell with PPS insulator

Note: the connector should be selected according to its exact rated current, voltage, conductor size and environmental specifications. It should not be assumed suitable for the ultrasonic generator’s main power output or high-energy transducer circuit without a detailed electrical assessment.

2. Ultrasonic Welding Controller Connector Design Highlights

Ultrasonic joining runs on precise timing and repeatable signals. The design advantages below explain why this CBTG2BG push-pull connector for ultrasonic plastic welding controllers suits controller interfaces:

2.1 Eight Contacts for Multiple Control Signals

  • Eight low-voltage contacts let multiple compatible circuits route through one connector interface — covering external cycle-start signals, welding sequence control, controller status feedback, equipment-ready signals, auxiliary sensor connections and inter-module control wiring. Combining compatible circuits simplifies cable organisation and reduces the number of separate connection points; the actual pin assignment must follow the welding controller’s electrical schematic.

2.2 Push-Pull Locking for Faster Maintenance

  • The 2B connector family uses a push-pull self-latching mechanism that connects and releases the plug without repeatedly rotating a threaded coupling. Industrial ultrasonic welding machines require periodic maintenance, horn replacement, fixture changes or controller servicing, so a quick-connect interface simplifies disconnection and reconnection of compatible control cables — especially valuable where equipment downtime must be minimised.

2.3 Compact Multi-Contact Connection for Control Cabinets

  • An ultrasonic welding controller may contain control boards, timing electronics, trigger interfaces and auxiliary monitoring circuits, so managing these connections efficiently keeps cabinet wiring organised. The eight-contact configuration lets several compatible low-voltage circuits share one circular connector, reducing wiring complexity at selected module interfaces and providing a defined connection point for serviceable cable assemblies. The final mechanical design should account for connector clearance, panel mounting, cable routing and strain relief.

2.4 Shielding to Support Reliable Signal Transmission

  • Ultrasonic welding equipment may operate alongside switching power supplies, motors and other electrically noisy devices, and control signals can be affected by interference if cable shielding and grounding are not properly designed. The 2B family includes shielded connector constructions, and this model should be integrated according to its exact specifications and the grounding requirements of the finished cable assembly. Overall performance also depends on cable construction, shield termination, grounding, PCB layout and enclosure design.

2.5 Serviceability in Repetitive Production Environments

  • Ultrasonic plastic welding is often used in repetitive manufacturing where machines run many production cycles and require regular inspection. A dedicated plug-and-receptacle interface helps technicians isolate and replace compatible control cables without disturbing unrelated wiring, making maintenance procedures more structured and reducing the risk of incorrect reconnection. Keying, pin assignment and equipment-specific interlocks should still be verified during system design.

2.6 Suitable for Low-Voltage Auxiliary Interfaces

  • For ultrasonic welding equipment, potential applications include low-voltage control signals, auxiliary monitoring circuits and compatible module interfaces. Engineers should verify the current rating of the exact connector configuration and ensure each contact operates within the manufacturer’s limits — and confirm the mating receptacle’s series, size, keying and contact layout.

3. Why Choose CBTG2BG-SMSM08-D990 for Ultrasonic Welding Controllers?

The connector offers several design advantages when correctly matched to the application:

  • Eight-contact configuration: supports multiple compatible control and auxiliary circuits.
  • Push-Pull self-latching: facilitates quick connection and disconnection.
  • Circular connector format: provides a defined interface for cable assemblies.
  • Serviceable wiring: helps simplify selected module replacement and maintenance.
  • Shielded construction: supports EMC-conscious system design when the complete cable assembly is properly grounded.

These characteristics make the CBTG2BG-SMSM08-D990 a candidate for evaluation in industrial ultrasonic welding controller interfaces.

4. 2B Series Connector Family Overview

The 2B shell belongs to Spring Technology’s push-pull connector family for industrial automation and control equipment. The same platform serves this welding controller plug and scales across pin counts and cable variants.

4.1 Available Configurations

  • Connectors: 2B plugs (including this order), fixed sockets and panel receptacles.
  • Pin counts: 2–26 contacts across the 2B shell, including the 8-contact layout.
  • Termination: solder termination with cable collet and bend relief options.
  • Cable range: cable openings from 1.5 to 9.7 mm across the 2B platform.

4.2 Customization Services

  • Custom contact allocations and part numbers matched to each welding controller’s schematic.
  • Control cable assemblies sized to the cabinet and production cell.
  • Shielding and EMC verification for trigger and control wiring.
  • Mating receptacle selection support, including keying and contact-layout confirmation.

5. Applications: Industrial Ultrasonic Plastic Welding Systems

Plastic assembly lines depend on repeatable cycle control. This CBTG2BG push-pull connector for ultrasonic plastic welding controllers serves the controller side of the machine.

5.1 Welding Controllers and Control Panels

Industrial ultrasonic plastic welding controllers and ultrasonic welding machine control panels.

5.2 Cycle-Control and Fixture Interfaces

Ultrasonic welding cycle-control modules and ultrasonic welding fixture control interfaces.

5.3 Automated Joining and Assembly Systems

Plastic component assembly systems, automated ultrasonic joining equipment and industrial plastic manufacturing automation systems.

6. Frequently Asked Questions (FAQ)

Q1: What signals can the eight contacts carry?

**Answer:** External cycle-start signals, welding sequence control, controller status feedback, equipment-ready signals, auxiliary sensor connections and inter-module control wiring, with pin assignment following the welding controller’s electrical schematic.

**Answer:** Not without assessment — the connector should not be assumed suitable for the ultrasonic generator’s main power output or high-energy transducer circuit; a detailed electrical evaluation is required. Discover reliable options from a certified vendor like [Spring Technology](https://www.spring-connectors.com/).

**Answer:** The self-latching mechanism connects and releases the plug without repeatedly rotating a threaded coupling, simplifying cable disconnection during horn replacement, fixture changes and controller servicing.

**Answer:** Ratings are determined by the selected contact configuration, use environment and cable, and should be confirmed against the exact model specification before design sign-off.

**Answer:** Solder termination with a 2B platform cable opening range of 1.5–9.7 mm; cable diameter, conductor size, bend radius and strain relief should be verified for the finished assembly.

**Answer:** Up to 5,000 mating cycles with 100 g (6 ms) shock resistance and 15 g vibration resistance over 10~20000 Hz, with IP50 protection for indoor or protected environments and a platform temperature range of -45 °C to +125 °C.

**Answer:** At least 75 dB at 10 MHz and 40 dB at 1 GHz; overall EMC performance also depends on cable construction, shield termination, grounding, PCB layout and enclosure design. Contact [email protected] to review your design.

Conclusion & Call to Action

This 2B connector delivery shows how Spring Technology serves welding automation — from the eight contacts and push-pull servicing of the CBTG2BG-SMSM08-D990 to its shielding and defined cable interface, every detail was aligned with the customer’s ultrasonic plastic welding controller requirements. Spring Technology also provides professional customization services for both push-pull connectors and cable assemblies, offering tailored solutions to meet your specific technical requirements.

For more information about our 2B series connectors or to discuss your requirements, contact us at [email protected] or [email protected], or visit our website.

Building an ultrasonic welding controller or automated joining system? Send us your control-circuit and cable requirements — our engineering team will respond with a tailored CBTG2BG push-pull connector proposal for your ultrasonic plastic welding controllers within 24 hours.
