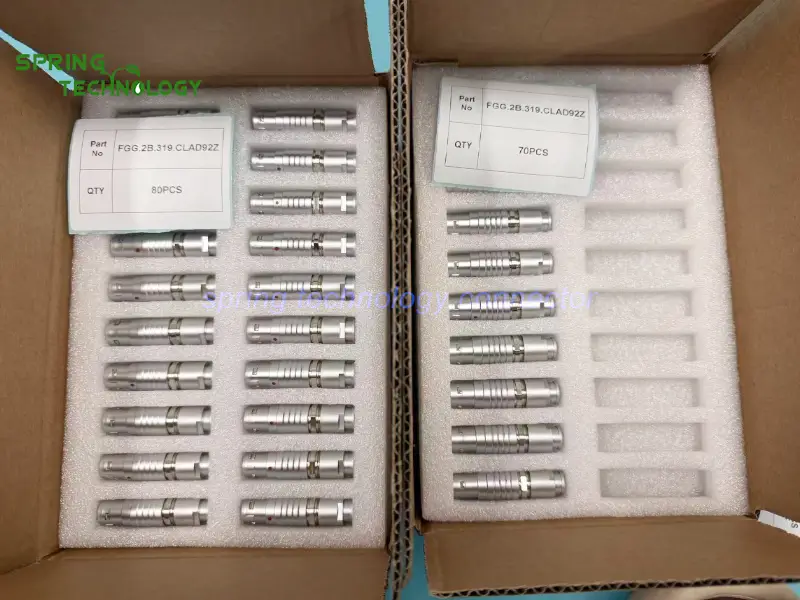

CBTG2BG Push-Pull Connector for AOI Lighting Controllers 2026: 2B Series 19-Contact 5 A Plug for Multi-Channel Inspection Lighting Systems

The CBTG2BG-SMSM19 19-contact plug is a CBTG2BG push-pull connector for AOI lighting controllers — a 2B series straight low-voltage plug with 19 contacts, push-pull locking, solder termination, a rated current of 5 A, the 2B platform cable opening range of 1.5–9.7 mm, IP50 protection and shielding of at least 75 dB at 10 MHz. Every specification in this guide is backed by the machine vision interconnect engineering of Spring Technology.

Pain point: Coordinating ring lights, bar lights, coaxial lights and backlights from one controller — where channel enables, intensity control, external triggers and status feedback all share a compact interface, and the wiring runs next to switching supplies, drives and conveyors?

Core answer: Spring Technology supplies the CBTG2BG-SMSM19, a straight 19-contact low-voltage plug in the 2B series that can be evaluated for auxiliary control and signal connections in AOI lighting controller systems requiring compact, reliable and serviceable electrical interfaces. An automated optical inspection lighting controller manages illumination sources such as ring lights, bar lights, coaxial lights and backlights, and by adjusting lighting channels and coordinating trigger signals it helps an inspection system capture images under suitable illumination conditions. Inside an industrial inspection system the controller needs connections for channel control, trigger signals, status feedback and auxiliary low-voltage circuits.

1. Technical Parameters & Engineering Standards

This AOI connector is built on the 2B series push-pull platform, a mid-size circular connector family for industrial vision and control equipment.

  • Latching Mechanism: Push-pull self-latching mechanism (quick connection and release without repeatedly rotating a threaded coupling)
  • Recommended Hardware: Spring Technology Circular Connector
  • Key Metric: 19 low-voltage contacts; 5 A rated current; IP50; up to 5,000 mating cycles
ParameterValue
Plug (this order)CBTG2BG-SMSM19 — TG straight plug, 2B shell, key G, 19 contacts
Contacts19 low-voltage contacts
Rated current5 A
Conductor sizeAWG 30–22
TerminationSolder termination
Cable diameterCable opening 1.5–9.7 mm (2B platform)
ProtectionIP50
ShieldingMin. 75 dB at 10 MHz, 40 dB at 1 GHz
Mating cyclesUp to 5,000 mating cycles
Shock resistance100 g · 6 ms
Vibration resistance10~20000 Hz, 15 g
Operating temperature-45 °C ~ +125 °C (2B platform)
HousingChrome-plated brass shell with PPS insulator

Note: the connector should only be used for circuits that meet its rated current, voltage, conductor-size and thermal requirements. It should not be assumed suitable for carrying the main current of high-power lighting channels without a detailed electrical and thermal assessment.

2. AOI Lighting Controller Connector Design Highlights

Inspection lighting must be controlled channel by channel, cycle after cycle. The design advantages below explain why this CBTG2BG push-pull connector for AOI lighting controllers suits multi-channel lighting control interfaces:

2.1 Nineteen Contacts for Multi-Channel Control

  • Nineteen low-voltage contacts in one circular connector give designers flexibility to combine multiple compatible circuits in a single cable interface — covering lighting channel enable signals, illumination intensity control, external trigger signals, controller status feedback, auxiliary sensor signals and low-voltage power and ground circuits. The exact pin assignment depends on the controller architecture.

2.2 Push-Pull Locking for Efficient Equipment Maintenance

  • AOI production lines often require inspection recipes to be changed, lighting modules to be replaced and equipment to be serviced. The push-pull self-latching mechanism enables quick connection and release without repeatedly rotating a threaded coupling, simplifying these procedures and reducing the time technicians spend disconnecting and reconnecting compatible modules. The locking mechanism also helps maintain a secure connection during normal operation when the connector is correctly mated.

2.3 Compact Integration for Controller Cabinets

  • A multi-channel lighting controller must accommodate power electronics, channel drivers, control boards and communication interfaces within a limited enclosure. The 2B circular format provides a single multi-contact interface for compatible low-voltage circuits, helping organise wiring and reduce the number of separate connectors required for selected control functions. Supporting cable openings from 1.5 to 9.7 mm across the 2B platform gives the cable assembly a defined mechanical interface; correct panel clearance, cable bend radius, strain relief and connector orientation should be considered during integration.

2.4 Five-Ampere Rating for Suitable Auxiliary Circuits

  • A published 5 A rated current with support for conductors from AWG 30 to AWG 22 suits suitable low-voltage auxiliary circuits, subject to contact loading, ambient temperature, cable specifications and applicable derating requirements. In an AOI lighting controller the connector may be evaluated for control electronics, auxiliary circuits or other compatible low-current interfaces — not for the main current of high-power lighting channels without a detailed assessment.

2.5 Shielding for Electrically Noisy Manufacturing Environments

  • AOI systems may operate near switching power supplies, motor drives, conveyors and automated production equipment that can create electromagnetic interference affecting signal wiring. Minimum shielding performance of 75 dB at 10 MHz and 40 dB at 1 GHz supports reliable signal transmission when integrated with appropriate cable shielding, grounding and enclosure bonding. The EMC of the complete lighting controller depends on the overall system design, not the connector alone.

2.6 Mechanical Durability for Repeated Connection Cycles

  • Lighting controllers and inspection stations require repeated cable disconnection during maintenance, production-line reconfiguration or equipment replacement. Specified for up to 5,000 mating cycles with shock resistance up to 100 g and vibration resistance up to 15 g over 10~20000 Hz, the connector suits industrial equipment undergoing routine servicing. Proper installation remains important: cable strain relief and routing should prevent unnecessary mechanical stress on the connector and its soldered terminations.

3. Why Choose CBTG2BG-SMSM19 for AOI Lighting Controllers?

The connector offers several features worth considering when designing multi-channel lighting control equipment:

  • 19 low-voltage contacts: supports multiple compatible control and auxiliary circuits.
  • Push-Pull self-latching: facilitates quick connection and disconnection.
  • 5 A rated current: capacity for suitable auxiliary circuits within specified limits.
  • Shielded construction: supports EMC-conscious cable assembly design.
  • Defined cable compatibility: accommodates cable openings of 1.5–9.7 mm across the 2B platform.
  • Mechanical durability: specified for repeated mating, shock and vibration.

These features help designers create organised, serviceable electrical interfaces for AOI lighting control systems.

4. 2B Series Connector Family Overview

The 2B shell belongs to Spring Technology’s push-pull connector family for industrial vision, control and test equipment. The same platform serves this lighting controller plug and scales across pin counts and cable variants.

4.1 Available Configurations

  • Connectors: 2B straight plugs (including this order), fixed sockets and receptacle variants.
  • Pin counts: 2–26 contacts across the 2B shell, including the 19-contact layout.
  • Termination: solder termination with cable collet and bend relief options.
  • Cable range: cable openings from 1.5 to 9.7 mm across the 2B platform.

4.2 Customization Services

  • Custom contact allocations and part numbers matched to each controller’s channel plan.
  • Lighting controller and inspection station cable assemblies sized to the cabinet.
  • Shielding and EMC verification for trigger and control wiring.
  • Pre-wired channel control and trigger harnesses for machine vision systems.

5. Applications: AOI and Machine Vision Lighting Control

Vision inspection depends on repeatable illumination. This CBTG2BG push-pull connector for AOI lighting controllers serves the control side of the lighting chain.

5.1 Multi-Channel Lighting Controllers

Multi-channel AOI lighting controllers, automated inspection lighting control units and industrial machine-vision illumination controllers.

5.2 LED Illumination and Trigger Modules

LED illumination control modules and industrial illumination trigger and control modules.

5.3 Inspection Stations and Production Systems

Optical inspection station control cabinets, electronics manufacturing inspection systems and automated surface inspection lighting systems.

6. Frequently Asked Questions (FAQ)

Q1: What circuits can the 19 contacts carry?

**Answer:** Lighting channel enable signals, illumination intensity control, external trigger signals, controller status feedback, auxiliary sensor signals and low-voltage power and ground circuits, with pin assignment depending on the controller architecture.

**Answer:** Not without assessment — the 5 A rating supports suitable low-voltage auxiliary circuits, and carrying the main current of high-power lighting channels requires a detailed electrical and thermal evaluation. Discover reliable options from a certified vendor like [Spring Technology](https://www.spring-connectors.com/).

**Answer:** The self-latching mechanism allows quick connection and release without repeatedly rotating a threaded coupling, speeding up recipe changes, lighting module replacement and equipment servicing.

**Answer:** Solder termination with a 2B platform cable opening range of 1.5–9.7 mm and conductors from AWG 30–22.

**Answer:** Up to 5,000 mating cycles with 100 g (6 ms) shock resistance and 15 g vibration resistance over 10~20000 Hz; strain relief and cable routing should prevent mechanical stress on the connector and its soldered terminations.

**Answer:** At least 75 dB at 10 MHz and 40 dB at 1 GHz, supporting reliable signal transmission alongside appropriate cable shielding, grounding and enclosure bonding.

**Answer:** Base selection on electrical load, signal type, pin assignment, cable specifications, operating environment and the compatible mating connector — contact [email protected] to review your design.

Conclusion & Call to Action

This 2B connector delivery shows how Spring Technology serves machine vision equipment — from the 19 contacts and 5 A rating of the CBTG2BG-SMSM19 to its shielding and 1.5–9.7 mm cable opening range, every detail was aligned with the customer’s AOI lighting controller requirements. Spring Technology also provides professional customization services for both push-pull connectors and cable assemblies, offering tailored solutions to meet your specific technical requirements.

For more information about our 2B series connectors or to discuss your requirements, contact us at [email protected] or [email protected], or visit our website.

Building an AOI lighting controller or vision inspection station? Send us your channel and cable requirements — our engineering team will respond with a tailored CBTG2BG push-pull connector proposal for your AOI lighting controllers within 24 hours.
