CBTG1BG Push-Pull Connector for Cinema Cameras 2026: CBTG1BG-SMSM06-D52B and CBZG1BG-SFSM14-0000 for Premium Cinematography and Video Broadcast for Indian Customers

The CBTG1BG-SMSM06-D52B is a CBTG1BG push-pull connector for cinema cameras — a 1B 6-pin plug rated 7A for run/stop triggers and motorized follow-focus, mated through the same family to the 14-pin CBZG1BG-SFSM14-0000 master umbilical socket on camera breakout boxes, with gold-plated contacts rated for over 5,000 mating cycles. Every specification in this guide is backed by the cinema camera interconnect engineering of Spring Technology.

Pain point: Mapping the peripheral electronics of high-end digital cinema cameras — where camera run/stop triggers, wireless follow-focus motors and remote zoom/iris controls need swift current bursts and clean serial feedback, while the camera body links to breakout boxes, metadata loggers and broadcast switchers through one master umbilical port?

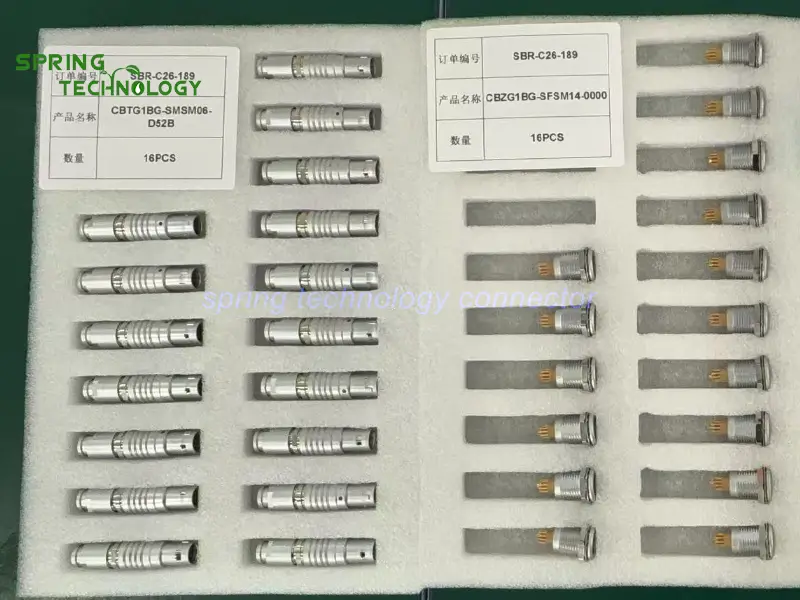

Core answer: For Indian customers, Spring Technology supplied a CBTG1BG push-pull connector for cinema cameras: the 6-pin CBTG1BG-SMSM06-D52B plug and the 14-pin CBZG1BG-SFSM14-0000 socket. This combination maps out perfectly on high-end digital cinema camera setups (like ARRI Alexa, RED or Sony Venice rigs) and their peripheral monitoring cages.

This cinema camera connector pair combines the TGG.1B straight plug and the ZGG.1B fixed socket. The 6-pin plug builds run/stop and follow-focus cables; the 14-pin socket serves as the camera’s master umbilical port.

• Latching Mechanism: Push-pull self-latching system (anti-vibration & shockproof)
• Recommended Hardware: Spring Technology Circular Connector
• Key Metric: 6-pin 7A plug + 14-pin master socket; swift current bursts for lens motors; clean serial feedback

Digital cinema cameras surround themselves with focus motors, triggers, loggers and switchers. The design highlights below are why this CBTG1BG push-pull connector for cinema cameras is specified for premium rigs:

• 6-pin run/stop and follow-focus cable — the plug builds cables for camera run/stop trigger systems, dual-channel wireless follow-focus motors and remote zoom/iris controls.
• 7A swift current bursts — the 7A rating drives motorized lens focus rings with swift bursts of current while maintaining clean serial data feedback loops.
• 14-pin master umbilical socket — the high-density socket mounts on the camera’s breakout box or a smart battery gold-mount plate, serving as the master umbilical port.
• Broadcast van integration — connects the camera body to a localized metadata logger or multi-line video control switchers inside a broadcast production van.
• Gold-plated contacts — stable power and clean serial data paths across the camera rig.
• Proven durability — >5,000 mating cycles for daily on-set rigging.

The 1B series is Spring Technology’s mid-size push-pull connector family, trusted across professional cameras, broadcast and instruments. The plug and socket in this order share the same 1B platform, covering both cable-side and panel-side roles on a camera rig.

• Plugs: straight plugs (this order), elbow plugs, plugs with bend relief, in 1B shell size.
• Sockets: fixed sockets (this order), sockets with PCB print contacts, free sockets.
• Pin counts: 2 to 16 pins, solder termination.
• Keying: key G standard, with keys A–M and R available for segregation.

• Custom pin allocations and part numbers (such as the CBTG1BG-SMSM06-D52B / CBZG1BG-SFSM14-0000 pair) matched to each camera system’s accessory plan.
• Pre-wired run/stop, follow-focus and umbilical cables for cinema rigs.
• Key orientation selection to keep power, trigger and data circuits segregated.
• Breakout box and gold-mount plate integration support.

High-end digital cinema cameras depend on a web of triggers, motors and monitors. This CBTG1BG push-pull connector for cinema cameras carries the accessory links that keep a rig fully functional.

Camera run/stop trigger systems, dual-channel wireless follow-focus motors and remote zoom/iris controls are built with the 6-pin plug, delivering 7A bursts for lens focus rings and clean serial data feedback.

The 14-pin socket mounts on the camera’s breakout box or smart battery gold-mount plate, acting as the master umbilical port for the camera body’s external accessories.

From a localized metadata logger to multi-line video control switchers inside a broadcast production van, the master umbilical port keeps every accessory connected.

This 1B connector delivery for Indian customers shows how Spring Technology serves premium cinematography — from the 6-pin CBTG1BG-SMSM06-D52B run/stop and follow-focus plug to the 14-pin CBZG1BG-SFSM14-0000 master umbilical socket, every detail was aligned with the customer’s cinema camera requirements. Spring Technology also provides professional customization services for both push-pull connectors and cable assemblies, offering tailored solutions to meet your specific technical requirements.

For more information about our 1B series connectors or to discuss your requirements, contact us at [email protected] or [email protected], or visit our website.

Building a cinema camera rig? Send us your trigger, motor and umbilical requirements — our engineering team will respond with a tailored CBTG1BG push-pull connector proposal for your cinema cameras within 24 hours.
