0B Elbow PCB Socket and Matching Plug 2026: Miniature Sensor Data Acquisition Module for Italian Client
Pain point: Looking for a miniature 0B elbow PCB socket that fits your sensor data acquisition module’s dense board layout, survives vibration and cable pull, and mates with a matching plug without compromising signal integrity?
Core answer: Spring Technology delivered a custom 0B elbow PCB socket and matching plug set for an Italian client’s miniature sensor data acquisition module, built on the miniature 0B series push-pull connector platform — with gold-plated contacts, IP50 protection, and a -45°C to +125°C operating range.
1. Custom Connector Solution Overview
This order shows how Spring Technology adapts the 0B series circular push-pull connector family to a board-level sensor data acquisition application for an Italian client.
| Model | Type | Positions | Working Voltage | Rated Current |
|---|---|---|---|---|
| BBZX0BG-SFPM05-0000 | 0B elbow PCB socket (90°) | 5 | 750 V | 6.5 A |
| BBZX0BG-SFPM06-0000 | 0B elbow PCB socket (90°) | 6 | 750 V | 2.5 A |
| CBTG0BG-SMSM05-D320 | Matching straight plug | 5 | 750 V | 6.5 A |
| CBTG0BG-SMSM06-D320 | Matching straight plug | 6 | 750 V | 2.5 A |
- Customer: Italian client (industrial instrumentation)
- Application: Miniature sensor data acquisition module
- Series: 0B series miniature push-pull connector family
- Benefit: Right-angle PCB mounting saves board space and simplifies module assembly
By pairing a 90° PCB socket with a matching cable plug, the module achieves a low-profile, self-latching interconnect that can be disconnected quickly for maintenance without loosening the board-side mounting. It is the same customization pattern Spring Technology applies to 0B sensor cable assemblies for other customers.
2. 0B Elbow PCB Socket Design Highlights
Spring Technology engineered every element of the 0B elbow PCB socket for dependable performance inside compact sensor electronics.
- 90° PCB termination: Right-angle contacts drop directly onto the board, keeping the module profile low and freeing board-edge space.
- Push-pull self-latching: Prevents accidental disconnection under vibration and cable pull, yet releases with a simple pull for fast servicing.
- IP50 protection: Suits indoor instrumentation and bench-top data acquisition systems.
- Wide temperature range: -45°C to +125°C operation, with humidity resistance up to 95% at 60°C.
- Durable mechanics: More than 5000 mating cycles, vibration 10-20000 Hz at 15g, mechanical shock 100g·6ms, and salt spray corrosion resistance exceeding 48 hours.
- Gold-plated contacts: Brass contacts with gold mating finish and PPS insulator deliver stable, low-resistance signal paths.
- Robust shell: Brass shell with chrome finish in silver color.
- Flexible fixing: Two-nut mounting with solder or screw attachment for back panel installation.
The 5-pin and 6-pin variants carry 750 V working voltage at 6.5 A and 2.5 A respectively, covering multi-channel analog and digital sensor signals in a single compact interconnect.
3. 0B Series Connector Family Overview
The 0B series is the miniature member of Spring Technology‘s circular push-pull connector family, designed for applications where space is tight but reliability is not negotiable.
3.1 0B Elbow PCB Socket Variants for PCB Integration

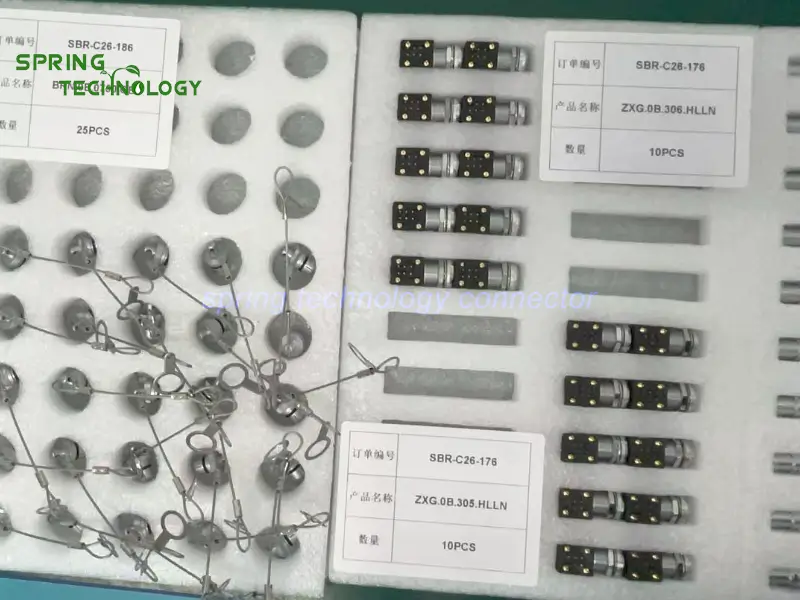

For board-level integration, the family offers two 90° socket styles: the ZXG.0B Elbow Socket (for PCB) with two-nut back panel mounting, and the ZPG.0B Elbow Socket (for PCB) for solder or screw fixing — both supporting 2 to 7 positions with female pin contacts.
3.2 Matching Plug Configurations

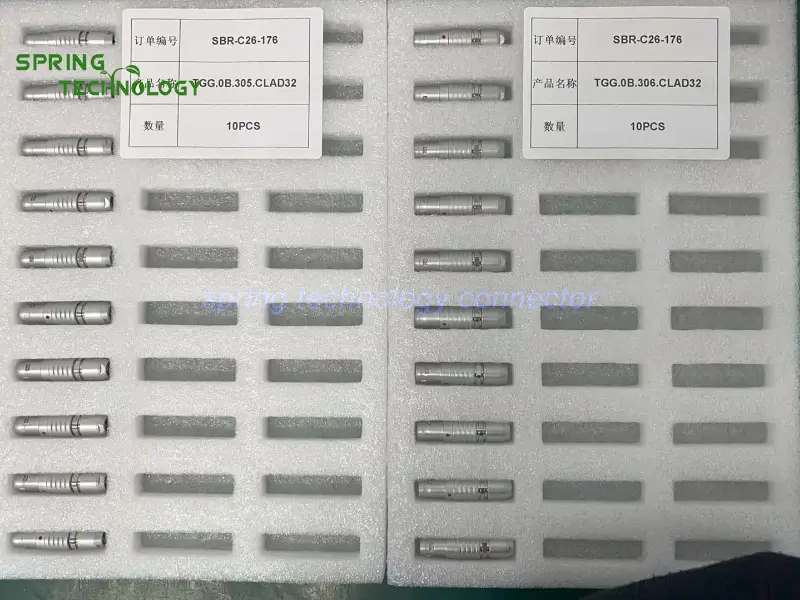

The matching plugs (CBTG0BG-SMSM05-D320 and CBTG0BG-SMSM06-D320) are cable collet straight plugs based on the TGG.0B Straight Plug, with solder termination and a 1.5-5.5mm cable opening. Larger 0B plug and socket sets, such as the 0B 7-pin connectors shipped to Singapore, use the same miniature platform at higher contact counts.
3.3 Customization Services
- Cable Assembly: Custom cable length, connector configuration, and overmolding to match your exact routing and environmental requirements.
- Custom Inserts: Specific pin arrangements and mixed contact configurations for multi-channel sensor, signal, and power needs.
- Special Materials: Shell materials, plating options, and custom colors for brand or application matching.
4. Applications for Miniature Sensor Data Acquisition Systems
Miniature sensor data acquisition modules gather analog and digital signals from sensors and condition them for controllers or PC-based analysis; compact, dependable connectors are the backbone of these systems.
4.1 Test & Measurement
- Portable data loggers and multi-channel acquisition front ends
- Bench-top instruments requiring quick-disconnect sensor probes
- Compact 90° PCB fixed sockets for nuclear radiation monitoring follow the same board-level interconnect pattern at higher pin counts
4.2 Industrial Automation
- Proximity, pressure, and temperature sensor interconnects
- Machine vision and process control systems
4.3 Medical & Scientific Instruments
- Diagnostic devices with replaceable sensor probes
- Laboratory instruments with modular sensing heads
Driven by IoT sensing and Industry 4.0, the global test and measurement equipment market is projected to reach USD 40 billion by 2027 (CAGR 5.1%), while the push-pull connector market is expected to grow to USD 1.8 billion by 2027 (CAGR 5.8%) — reinforcing demand for miniature interconnect solutions such as the 0B elbow PCB socket.
5. Common Questions (FAQ)
Q1: What are the electrical ratings of the 5-pin and 6-pin 0B elbow PCB sockets?
Both the 5-pin (BBZX0BG-SFPM05-0000) and 6-pin (BBZX0BG-SFPM06-0000) 0B elbow PCB sockets are rated at 750 V working voltage. Rated current is 6.5 A for the 5-pin version and 2.5 A for the 6-pin version, with contact resistance of ≤12.5 mΩ and ≤15.0 mΩ respectively. For specific load requirements, contact our engineering team at [email protected].
Q2: Can the 0B elbow PCB socket withstand vibration and harsh environments?
Yes. The 0B series withstands vibration from 10 to 20000 Hz at 15g and mechanical shock of 100g·6ms, supports more than 5000 mating cycles, passes salt spray corrosion testing beyond 48 hours, and operates from -45°C to +125°C — suitable for industrial, test, and portable instrument environments.
Q3: Is the 0B series compatible with other brands’ connectors?
The 0B series connector offers excellent compatibility with many leading supplier systems. For specific interchangeability requirements, please contact our engineering team at [email protected] with your application details.
Q4: Why use an elbow PCB socket instead of a straight PCB socket?
An elbow (90°) PCB socket routes the mating direction parallel to the board, lowering the module profile, simplifying cable routing inside confined enclosures, and reducing strain on solder joints when cables are dressed along the chassis. For the Italian client’s miniature sensor data acquisition module, this saved critical board-edge space and kept the enclosure footprint minimal.
Q5: What is the typical lead time for 0B series orders?
Standard orders typically ship within 20 working days. Larger quantities (500+ pcs) may require up to 40 working days. Rush orders and express shipping options are available — contact our sales team for confirmation.
Conclusion & Call to Action
This custom 0B elbow PCB socket and matching plug delivery for the Italian client demonstrates how Spring Technology turns the miniature 0B series platform into a board-ready, application-specific interconnect for sensor data acquisition modules — from the 90° PCB socket to the matching cable plug, every detail was aligned with the customer’s compact module layout. Italian customers have previously validated our PCB 90° socket quality in production feedback.
Spring Technology also provides professional customization services for both push-pull connectors and cable assemblies, offering tailored solutions to meet your specific technical requirements.
For more information about our 0B series connectors or to discuss your requirements, contact us at [email protected] or [email protected], or visit our website.
Ready to build your own custom sensor data acquisition interconnect? Send us your pin configuration, PCB footprint, and cable requirements — our engineering team will respond with a tailored proposal within 24 hours.
