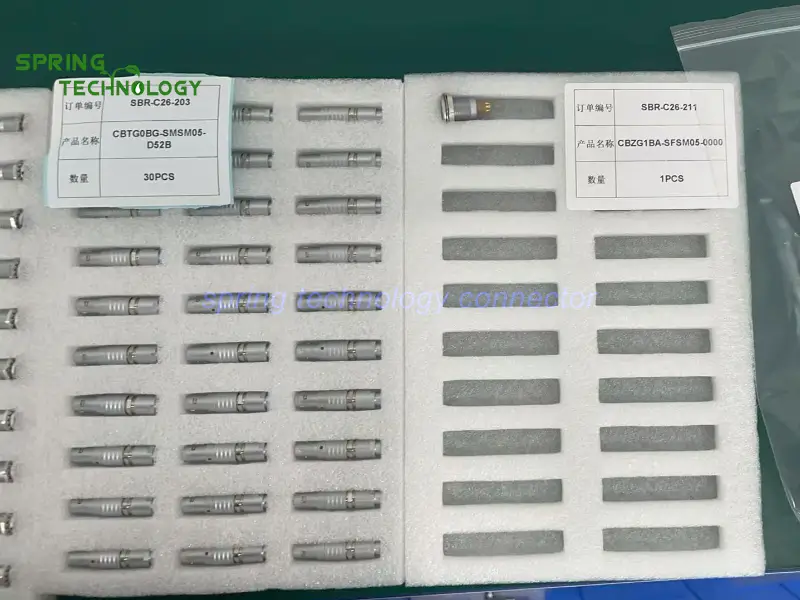

0B Precision Sensor Connector 2026: CBTG0BG-SMSM05-D52B Plug and CBZG0BG-SFSM05-0000 Socket for Russian Client

Pain point: Looking for a 0B precision sensor connector that reliably carries excitation and signal lines for 3-axis and 4-axis sensors — load cells, piezoelectric accelerometers, and torque sensors — without signal loss or wiring errors?
Core answer: Spring Technology supplied the CBTG0BG-SMSM05-D52B straight plug and CBZG0BG-SFSM05-0000 panel-mount socket for a Russian client’s precision sensor systems, with a 5-pin configuration covering the complete wiring requirement: V+, V-, Signal+, Signal-, and Shield (Ground).

1. Custom Connector Solution Overview

This order adapts the 0B series miniature push-pull connector platform to precision sensor interconnects for a Russian client.

Customer: Russian client (sensor and instrumentation systems)
Product 1: CBTG0BG-SMSM05-D52B — 0B straight plug with cable
Product 2: CBZG0BG-SFSM05-0000 — 0B panel-mount fixed socket
Application: 3-axis and 4-axis sensor connections for precision load cells, piezoelectric accelerometers, and torque sensors
Benefit: Complete 5-pin wiring (V+, V-, Signal+, Signal-, Shield) in one compact quick-disconnect interface

Model	Type	Positions	Working Voltage	Rated Current
CBTG0BG-SMSM05-D52B	0B straight plug, solder termination	5	750 V	6.5 A
CBZG0BG-SFSM05-0000	0B panel-mount fixed socket, nut fixing	5	750 V	6.5 A

Both connectors share the push-pull self-latching mechanism, brass chrome-plated shells, and gold-plated contacts that keep precision sensor signals stable in industrial environments.

2. 0B Precision Sensor Connector Design Highlights

Spring Technology engineered this 0B precision sensor connector set for dependable multi-axis sensor wiring.

5-pin full wiring coverage: The five-pin configuration accommodates the complete excitation and signal requirement — V+, V-, Signal+, Signal-, and Shield (Ground) — in a single connector, eliminating loose wires at the sensor junction.
Gold-plated contacts: Brass contacts with gold mating finish and PPS insulator deliver stable, low-resistance paths for low-level sensor signals.
Push-pull self-latching: Quick insertion and secure retention prevent accidental disconnection under vibration, while a simple pull releases the sensor for calibration or replacement.
Compact 0B footprint: The miniature shell fits densely packed test rigs, dynamometers, and machine-mounted sensor nodes.
Shield continuity: The dedicated shield contact preserves signal integrity for piezoelectric accelerometers and other noise-sensitive transducers.
Durable mechanics: More than 5000 mating cycles, vibration 10-20000 Hz at 15g, mechanical shock 100g·6ms, and salt spray corrosion resistance exceeding 48 hours.
Wide temperature range: -45°C to +125°C operation with humidity resistance up to 95% at 60°C.

The result is a sensor interconnect that behaves like an OEM component: predictable, repeatable, and ready to deploy directly into the Russian client’s precision measurement equipment.

3. 0B Series Connector Family Overview

The 0B series is the miniature member of Spring Technology‘s circular push-pull connector family, designed for applications where space is tight but reliability is not negotiable.

3.1 Available 0B Configurations

TGG.0B Straight Plug: Standard cable-mounted plug — the platform used by CBTG0BG-SMSM05-D52B.
ZGG.0B Fixed Socket: Panel-mounted socket for chassis integration — the platform used by CBZG0BG-SFSM05-0000.
MGG.0B / MHG.0B / MEG.0B Fixed Socket (IP68): Watertight panel sockets for harsh or washdown environments.
THG.0B Elbow Plug: Right-angle plug for low-profile routing.
ZPG.0B / ZXG.0B Elbow Socket (for PCB): Right-angle PCB sockets for board-level integration.

Beyond these variants, the same 0BG custom model family has served 0B sensor cable assemblies for Russian clients and 0B elbow PCB socket sets for sensor data acquisition modules, while 0B 5-pin connectors have shipped in volume to Brazil.

3.2 Customization Services

Cable Assembly: Custom cable length, connector configuration, and overmolding to match your exact routing and environmental requirements.
Custom Inserts: Specific pin arrangements and mixed contact configurations for multi-channel sensor, signal, and power needs.
Special Materials: Shell materials, plating options, and custom colors for brand or application matching.

4. Applications for Precision Sensor Connections

Precision sensors measure force, acceleration, and torque through low-level analog signals that demand stable, shielded, and repeatable interconnects.

4.1 Force and Load Measurement

Precision load cells in test rigs and weighing systems
Force transducers for material testing machines

4.2 Vibration and Acceleration Sensing

Piezoelectric accelerometers for structural and machinery monitoring
Shock and vibration test instrumentation

4.3 Torque and Motion Sensing

Torque sensors on drive trains and dynamometers
Robotic joint and actuator feedback systems

The global industrial automation market is projected to reach USD 265 billion by 2027 (CAGR 8.5%), while Russia’s electronic components market is expected to grow to USD 8.2 billion by 2027 (CAGR 7.1%) — sustaining demand for precision push-pull connectors in sensor-driven measurement systems.

5. Common Questions (FAQ)

Q1: What is the wiring configuration of the 5-pin 0B precision sensor connector?

The five-pin configuration covers the complete wiring requirement for 3-axis and 4-axis sensors: V+, V-, Signal+, Signal-, and Shield (Ground), rated at 750 V working voltage and 6.5 A per contact with contact resistance of ≤12.5 mΩ. For custom pin arrangements, contact our engineering team at [email protected].

Q2: Can this 0B precision sensor connector maintain signal integrity under vibration?

Yes. The 0B series withstands vibration from 10 to 20000 Hz at 15g and mechanical shock of 100g·6ms, with a dedicated shield contact and gold-plated mating surfaces that preserve low-level sensor signals in industrial environments.

Q3: Is the 0B series compatible with other brands’ connectors?

The 0B series connector offers excellent compatibility with many leading supplier systems. For specific interchangeability requirements, please contact our engineering team at [email protected] with your application details.

Q4: Why use a shielded 5-pin connector for load cells and accelerometers?

Low-level sensor signals are easily corrupted by electrical noise. Combining V+, V-, Signal+, and Signal- with a dedicated shield (ground) contact in one connector keeps the excitation and measurement loops together and minimizes noise pickup between the sensor and the conditioning electronics.

Q5: What is the typical lead time for 0B series orders?

Standard orders typically ship within 20 working days. Larger quantities (500+ pcs) may require up to 40 working days. Rush orders and express shipping options are available — contact our sales team for confirmation.

Conclusion & Call to Action

This 0B precision sensor connector delivery for the Russian client demonstrates how Spring Technology turns the miniature 0B series platform into a complete sensor interface — from the CBTG0BG-SMSM05-D52B straight plug to the CBZG0BG-SFSM05-0000 panel-mount socket, every detail was aligned with the customer’s load cell, accelerometer, and torque sensor wiring requirements. Spring Technology also provides professional customization services for both push-pull connectors and cable assemblies, offering tailored solutions to meet your specific technical requirements.
For more information about our 0B series connectors or to discuss your requirements, contact us at [email protected] or [email protected], or visit our website.

Designing a precision sensor system? Send us your sensor type, pin configuration, and cable requirements — our engineering team will respond with a tailored connector proposal within 24 hours.
