G11.2RM.PD8.K00 Network Connector: 300pcs High-Speed Push-Pull Receptacle for Soldier Communication Systems

Need a high-speed network push-pull connector that can handle demanding military communication applications?

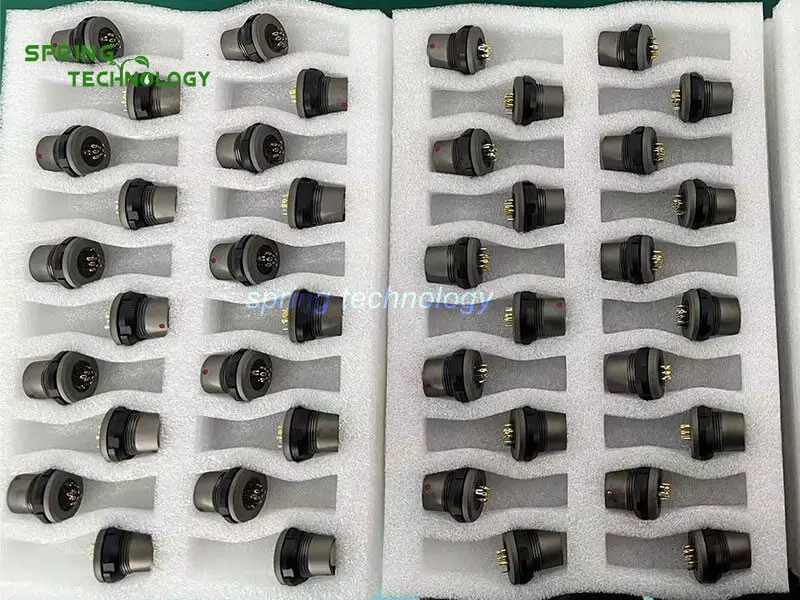

The G11.2RM.PD8.K00 network connector from Spring Technology (equivalent to GK2YAR-PD8WJG0-000L) is an advanced push-pull connector designed for next-generation soldier communication systems. With 300pcs now ready to ship, this X-series receptacle delivers reliable high-speed data transmission for field-deployed networks.

1. G11.2RM.PD8.K00 Network Connector Overview

The G11.2RM.PD8.K00 is a straight push-pull receptacle from the X series connector family, featuring a nut-fastened socket installation with conductive O-ring for both shielding and sealing. It is part of the X series and is the receptacle counterpart to the S11.2RM.PD8.J00 plug, now updated to the GKA.Y02.D08.RPL00 model.

1.1 Key Features

  • High-Speed Capabilities: Supports direct transmission of USB2.0, USB3.0, Gigabit Ethernet, 10 Gigabit Ethernet, HDMI, SATA, DP, and other standard protocols
  • Multi-Signal Integration: Single connector handles low-frequency, power, high-speed, RF, and optical fiber signals
  • Straight Push-Pull Locking: Enables blind mating for quick connections and disconnections in tight spaces
  • Multi-Key Positioning: Dual error-prevention with alignment key structure and visual color cues
  • Water Pressure Resistance: Withstands 2-meter water depth for 24 hours after mating
  • Socket Leakage Rate: Less than 1.0 Pa·cm³/s at 1×10⁵ Pa pressure differential

1.2 Technical Specifications

  • Model: G11.2RM.PD8.K00 (equivalent to GK2YAR-PD8WJG0-000L)
  • Series: X Series / AMC Series
  • New Model Equivalent: GKA.Y02.D08.RPL00
  • Type: Straight push-pull receptacle, nut-fastened panel mount
  • Contact Termination: Wire soldering (socket), straight PCB soldering available
  • Pin/Socket Compatibility: Both plugs and sockets can accept either pins or sockets
  • Sealing: Conductive O-ring for shielding and sealing

2. Applications for G11.2RM.PD8.K00 Network Connector

The G11.2RM.PD8.K00 network connector is widely used in military and civilian applications requiring high-speed data transmission in demanding environments:

2.1 Military and Defense

  • Next-generation soldier communication systems
  • Data radio and handheld devices for field operations
  • GPS antennas and unmanned systems
  • Land vehicle communication networks

2.2 Industrial and Commercial

  • Rugged computers and reinforced computing equipment
  • Industrial Ethernet switches and network infrastructure
  • Audio and video broadcast equipment
  • Data acquisition and industrial control systems

2.3 Medical and Scientific

  • Medical imaging and diagnostic equipment requiring high-speed data
  • Testing and measurement instruments
  • Research laboratory equipment

3. X Series Connector Family Overview

The X series connector family (also known as AMC series) covers advanced networking, military ethernet, and high-speed data applications. The series includes straight push-pull connectors designed for high-density installations and narrow spaces where rotation-based insertion is difficult.

3.1 Available Configurations

  • Plug Options: S11.2RM.PD8.J00 (old model), S1A.Y02.D08.RPA0 (new model)
  • Receptacle Options: G11.2RM.PD8.K00 (old model), GKA.Y02.D08.RPL00 (new model)
  • Contact Count: 8-position (PD8) for high-speed data and signal transmission
  • Termination: Wire soldering and straight PCB soldering options

3.2 Customization Services

  • Cable Assembly: Custom cable length, connector configuration, and overmolding for specific application requirements
  • Custom Inserts: Mixed signal configurations combining low-frequency, high-speed, RF, and fiber optics
  • Special Materials: Shell materials, plating options, and custom colors for military or brand specifications

4. Common Questions (FAQ)

Q1: What is the difference between G11.2RM.PD8.K00 and the new model GKA.Y02.D08.RPL00?

The G11.2RM.PD8.K00 is the original model designation for this FX series receptacle. Its direct replacement is the GKA.Y02.D08.RPL00, which offers identical mechanical and electrical specifications. Both models are fully interchangeable in existing system designs.

Q2: Is the G11.2RM.PD8.K00 compatible with other connector brands?

The X series push-pull connector offers excellent compatibility with many leading high-speed connector systems. For specific interchangeability requirements, please contact our engineering team at [email protected] with your application details.

Q3: What data protocols does this connector support?

The G11.2RM.PD8.K00 network connector supports direct transmission of USB 2.0, USB 3.0, Gigabit Ethernet, 10 Gigabit Ethernet, HDMI, SATA, and DisplayPort protocols, making it suitable for a wide range of high-speed data applications in military and industrial environments.

Q4: Is the G11.2RM.PD8.K00 suitable for outdoor use?

Yes. The connector features water pressure resistance up to 2 meters depth for 24 hours after mating, with a leakage rate of less than 1.0 Pa·cm³/s. The nut-fastened installation with conductive O-ring provides both environmental sealing and EMI protection for reliable outdoor operation.

Q5: What is the typical lead time for X series connector orders?

Standard orders typically ship within 20 working days. Larger quantities (500+ pcs) may require up to 40 working days. Rush orders and express shipping options are available — contact our sales team for confirmation.

Conclusion & Call to Action

The G11.2RM.PD8.K00 network connector from Spring Technology is a high-performance push-pull connector designed for next-generation military communication systems and demanding industrial network applications. With 300pcs now ready to ship, this X-series receptacle delivers reliable high-speed data transmission with multi-protocol support and rugged environmental protection.

Spring Technology also provides professional customization services for both push-pull connectors and cable assemblies, offering tailored solutions to meet your specific technical requirements.

Request a Quote or Sample: Contact our sales team today for pricing, technical specifications, or samples. With 300pcs in stock, we can deliver quickly for your project needs.

For more information about the G11.2RM.PD8.K00 network connector or to place an order, contact us at [email protected] or [email protected], or visit our website.
