GK* Socket, multi-keying and arc-shape metal guides, solder contact (with earthing tag) For installation from rear of panel – low profile inside the device

GK Socket

1. GK Socket brief introduction:

X Series Connector straight push-pull connectors have high-speed needle contact for transmit common data transmission protocols,It is used in high-density installations, relatively narrow spaces, and where it is difficult to insert and separate by rotation. Widely used in the military and civilian fields of radio equipment, infantry equipment, reinforced computers, medical equipment, testing equipment, audio and video equipment, data acquisition, industrial control and other occasions for AC and DC, high-speed, radio frequency, optical fiber and other signal connection transmission.

Making it an ideal choice for Medical, Test & Measurement, ResearchCommunications, Broadcast Connector, Machines, Defense, RoboticAerospace, public sector, Information Systems, MotorsportMiscellaneous applications.

2. GK Socket description:

  • Push-Pull locking or Break-Away function
  • Lightweight, small and easy handling
  •  Operating temperatures range from –51° C to +125° C
  • Optimized mechanical and colour keying
  • Lifetime of ≥ 5,000 mating cycles
  • Easy handling and blind mateable
  • Multiple contact configurations:
  • signals, low/high voltage transmission, coax/triax
  • System solution inclusive cable assembly and overmolding: everything from one source
  • Excellent shielding features (360°)
  • Version for hot-plugging available
  • Watertight protection class IP 68 and IP 69 K
  • Excellent data transmission up to 10 GBit

3. GK Socket technical specification:

Pulling and inserting times > 5000
Relative humidity up to 95% at 40°C
Temperature -55℃~+125℃
Vibration frequency 10-20000HZ, acceleration 147m/s², ≤1um instantaneous break
Shock Acceleration 2940m/s2, ≤1μs instantaneous break
Protection index (mated) IP68
Connector type Plug, Male Pins; Socket, Female Pins
Termination Solder
Fastening type Push-pull
Orientation N (A, B, C)

High-speed Needle Contact Reference

Spring Technology P/N Other P/N Number of contacts Contact Size
(mm)
Conductor Size
(AWG Max.)
Work Voltage
(V rms)
Interface
Type
PDF Download
GKN.104X.H08.RPLP-J GK2YAR-PD8WJG0-000L 8 0.9 22 500 10 Gigabit Network GKN.104X.H08.RPLP-J
G11.2RM.PD8.K00

Keying Codes Options

All Multipole body styles are mechanically coded.
N is the standard, but other codes can be requested

Alignment key(S1 plug and GK socket)

4. Chooseing tips:

If you have purchased other same appearance and know the original model, please tell us. We will directly offer you our corresponding one.
If you don’t know much about the connector, please make choose according the following factors:

  1. the use of the environment, indoors or outdoors, waterproof or not;
  2. the panel hole size, to select the appropriate plug and socket of right dimension;
  3. the current-voltage, number of contact and the realization of the function, to determine the contact(cores) ;
  4. select the appropriate clamp diameter and sheath;
  5. according to the actual needs of different angles of the keys, to determine the keying (the standard keys as N).

5, Why choose our

  1. Lower your cost, cheap cable assembly offer, at least save your 30%-50% cost (100% compatible and work well)
  2. large stock, short lead times. The delivery time is short, the parts are in stock. Just need to assemble them.
  3. better quality at a reasonable price

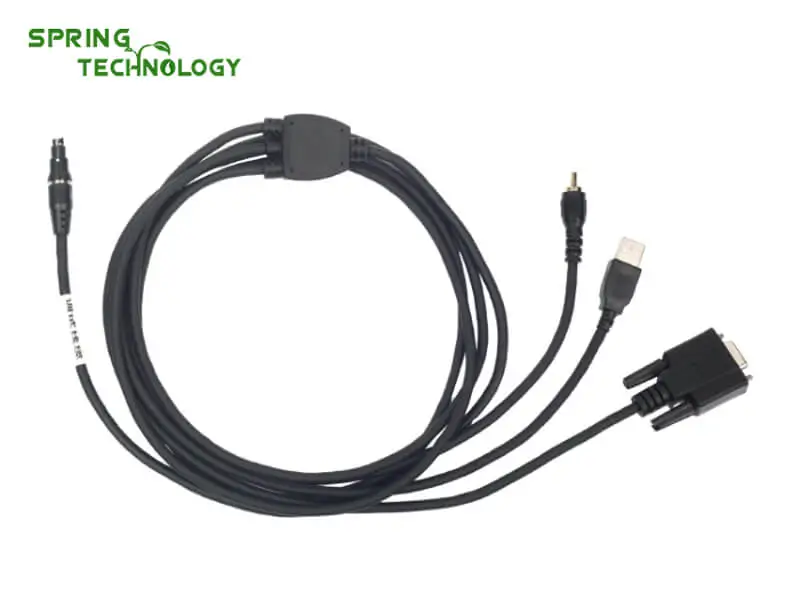

  4. We can provide OEM/ODM service and cable assembly solution.
  5. Our factory has 9 years experience and strong and professional research and development capabilities.Advanced development and management, comprehensive R&D testing and highly automatic production line make our products high reliability and high performance.

    Email us, We will answer your email shortly!
