CBMG0BG Push-Pull Connector for Ultrasonic Scalpels 2026: CBMG0BG-SFSM04-S00E and CBTH0BG-SMSM04-D52B for Medical Instruments and Endoscopy Consoles for Russian Client

The CBMG0BG-SFSM04-S00E is a CBMG0BG push-pull connector for ultrasonic scalpels — an airtight 0B panel socket with a grounding pin that keeps alcohol, saline and disinfectant cleaning fluids out of medical consoles and guarantees electrostatic isolation for patient-contact components, mated to the right-angle CBTH0BG-SMSM04-D52B plug that improves surgeon ergonomics, with gold-plated contacts. Every specification in this guide is backed by the medical instrument interconnect engineering of Spring Technology.

Pain point: Connecting handheld high-frequency surgical tools in hospital operating rooms and ICUs — where console panels are sprayed and wiped with alcohol, saline or chemical disinfectants, and a straight connector on the scalpel cable presses against the surgeon’s wrist in confined spaces?

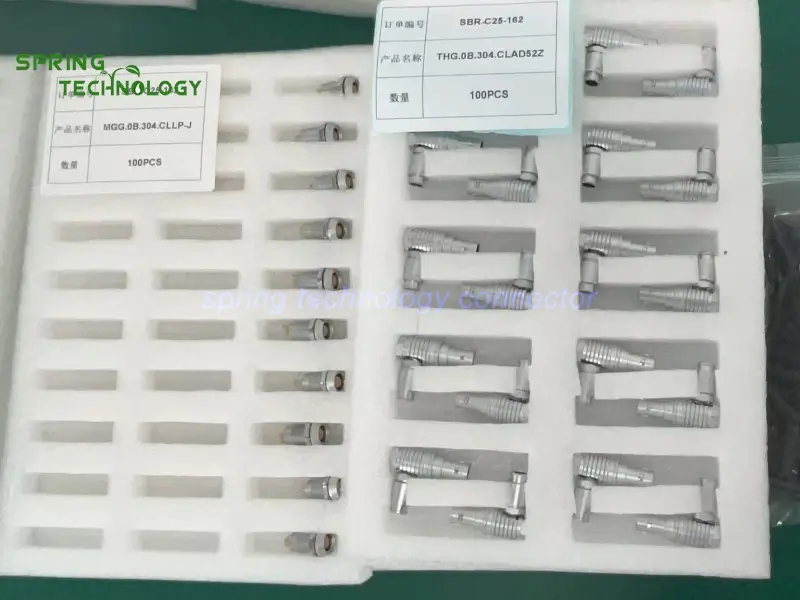

Core answer: For a Russian client, Spring Technology supplied a CBMG0BG push-pull connector for ultrasonic scalpels: the CBMG0BG-SFSM04-S00E socket and the CBTH0BG-SMSM04-D52B plug, for critical applications in precision medical electronic instruments, endoscopy consoles and high-frequency surgical tools. The socket is mounted on the panels of portable monitors or endoscopic cold-light image processors used in hospital operating rooms or ICUs, connecting to the handheld high-frequency ultrasonic scalpel via the plug.

1. Technical Parameters & Engineering Standards

This ultrasonic scalpel connector pair combines the MGG.0B airtight fixed socket and the THG.0B right-angle plug. The combination is engineered for the cleaning, disinfection and ergonomics demands of surgical environments.

  • Latching Mechanism: Push-pull self-latching system (anti-vibration & shockproof)
  • Recommended Hardware: Spring Technology Circular Connector
  • Key Metric: Airtight liquid-proof socket; grounding pin; right-angle cable exit
ParameterValue
Socket (this order)CBMG0BG-SFSM04-S00E — MG fixed socket, 0B shell, key G, 4-pin, airtight isolation
Plug (this order)CBTH0BG-SMSM04-D52B — TH right-angle (90°) plug, 0B shell, key G, 4-pin
ApplicationPrecision medical electronic instruments, endoscopy consoles, high-frequency surgical tools
Socket mountingPanels of portable monitors or endoscopic cold-light image processors
Tool linkHandheld high-frequency ultrasonic scalpel
Cleaning resistanceAlcohol, saline, chemical disinfectant spray and wiping
IsolationAirtight pin-hole sealing + grounding pin for electrostatic isolation
ErgonomicsRight-angle cable exit prevents pressure on the surgeon’s wrist
Connector typeSocket: female pins, panel mount / Plug: male pins, right angle
Number of positions2–9 pin (0B shell)
ProtectionAirtight / IP68 socket, IP50 plug
Durability> 5,000 mating cycles
Contact finishGold-plated

2. Ultrasonic Scalpel Connector Design Highlights

Medical console panels face constant cleaning, and surgeons face constant space limits. The design highlights below are why this CBMG0BG push-pull connector for ultrasonic scalpels is specified for OR and ICU use:

  • Airtight liquid-proof sealing — no liquid can seep through the pin holes onto the circuit board during spraying and wiping with alcohol, saline or chemical disinfectants.
  • Grounding pin isolation — the grounding pin guarantees absolute electrostatic isolation for patient-contact components.
  • Right-angle cable exit — the 90° plug exit improves the balance and handling of the tool, preventing a straight connector from pressing against the surgeon’s wrist.
  • Panel mounting for consoles — the socket mounts on portable monitors and endoscopic cold-light image processors in operating rooms and ICUs.
  • Push-pull self-latching — secure, quick connects for healthcare staff working under time pressure.
  • Gold-plated contacts — stable signal and power paths for high-frequency surgical tools.

3. 0B Series Connector Family Overview

The 0B series is Spring Technology’s smallest push-pull connector family, with sealed and right-angle variants for demanding applications. The socket and plug in this order share the same 0B platform.

3.1 Available Configurations

  • Sockets: airtight fixed sockets (this order) with grounding options, in 0B shell size.
  • Plugs: right-angle plugs (this order), straight plugs, plugs with bend relief.
  • Pin counts: 2 to 9 pins on the 0B shell.
  • Keying: key G standard, with keys A–M and R available for segregation.

3.2 Customization Services

  • Custom pin allocations and part numbers (such as the CBMG0BG-SFSM04-S00E / CBTH0BG-SMSM04-D52B pair) matched to each instrument’s signal plan.
  • Grounding configurations for patient-contact isolation.
  • Right-angle and straight exit options for tool ergonomics.
  • Sealing verification for disinfectant exposure.

4. Applications: Medical Instruments and Surgical Tools

From endoscopy consoles to handheld scalpels, hospital equipment demands clean, safe connections. This CBMG0BG push-pull connector for ultrasonic scalpels is built for that environment.

4.1 Endoscopic Cold-Light Image Processors and Monitors

The socket mounts on portable monitors and endoscopic cold-light image processors, where healthcare staff regularly spray and wipe panels with disinfectants without risking the circuit board.

4.2 Handheld High-Frequency Ultrasonic Scalpels

The right-angle plug links the handheld high-frequency ultrasonic scalpel to the console, improving balance and keeping the cable clear of the surgeon’s wrist in confined spaces.

4.3 Patient-Contact Component Isolation

The grounding pin guarantees absolute electrostatic isolation for patient-contact components, an essential safety property in surgical environments.

5. Frequently Asked Questions (FAQ)

Q1: Why is the socket airtight?

**Answer:** Medical console panels are frequently sprayed and wiped with alcohol, saline or chemical disinfectants. The airtight isolation of the socket ensures no liquid seeps through the pin holes onto the circuit board during cleaning.

**Answer:** The grounding pin guarantees absolute electrostatic isolation for patient-contact components, protecting patients and equipment in surgical environments. Discover reliable options from a certified vendor like [Spring Technology](https://www.spring-connectors.com/).

**Answer:** The right-angle cable exit improves the balance and handling of the handheld ultrasonic scalpel, preventing a straight-type connector from pressing against the surgeon’s wrist in confined spaces.

**Answer:** Yes. Spring Technology offers custom pin allocations, grounding configurations, right-angle or straight exits and sealing verification on the 0B platform.

**Answer:** Contact Spring Technology via email at [email protected] or [email protected] with your instrument requirements and quantities, and the engineering team will respond with a tailored proposal.

Conclusion & Call to Action

This 0B connector delivery for the Russian client shows how Spring Technology serves hospital instrument environments — from the airtight CBMG0BG-SFSM04-S00E socket to the right-angle CBTH0BG-SMSM04-D52B plug, every detail was aligned with the customer’s medical instrument and surgical tool requirements. Spring Technology also provides professional customization services for both push-pull connectors and cable assemblies, offering tailored solutions to meet your specific technical requirements.

For more information about our 0B series connectors or to discuss your requirements, contact us at [email protected] or [email protected], or visit our website.

Building a medical console or surgical tool? Send us your sealing, grounding and ergonomics requirements — our engineering team will respond with a tailored CBMG0BG push-pull connector proposal for your ultrasonic scalpels within 24 hours.
