CBTA1BG Push-Pull Connector for Medical Device Electronics 2026: CBTA1BG-SMSM07-0000 and CBZC1BG-SFSM07-0000 for Surgical Carts and Endoscopic Consoles for Czech Customers
The CBTA1BG-SMSM07-0000 is a CBTA1BG push-pull connector for medical device electronics — a 1B 7-pin plug fixed into the peripheral chassis wall of surgical foot-pedals and handheld controllers, mated through a 7-core cable bundle to the CBZC1BG-SFSM07-0000 socket on the diagnostic tower’s acquisition motherboard, with gold-plated contacts rated for over 5,000 mating cycles. Every specification in this guide is backed by the medical device interconnect engineering of Spring Technology.
Pain point: Managing multi-channel sensor feeds inside endoscopic or diagnostic consoles — where floor-bound surgical foot-pedals and handheld controllers must stay sleek and wire-free at the base, while delicate bio-signals travel to the main processing tower without catching electrical room noise?

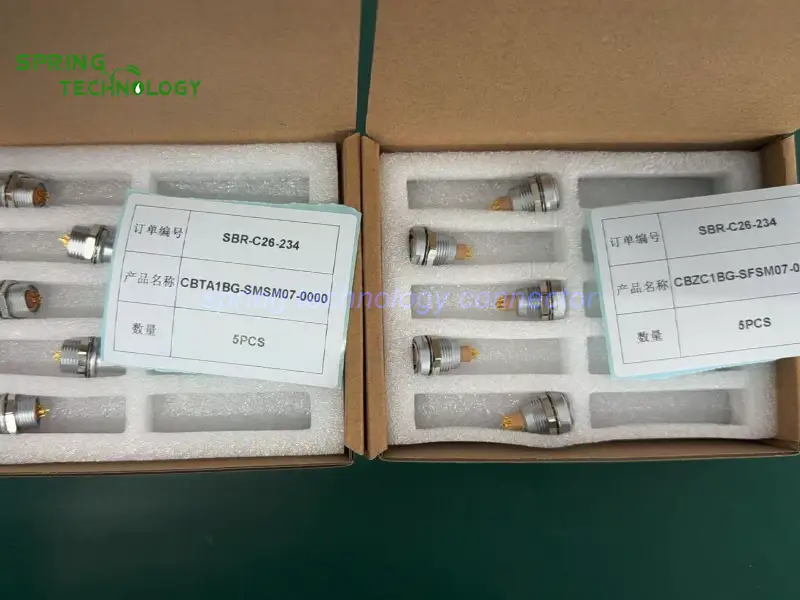

Core answer: For Czech customers, Spring Technology supplied a CBTA1BG push-pull connector for medical device electronics: the CBTA1BG-SMSM07-0000 plug and its matching CBZC1BG-SFSM07-0000 socket. In a modern surgical operating room, this combination is heavily relied upon to manage multi-channel sensor feeds within endoscopic or diagnostic consoles. It is used for modular, hot-swappable patient patch-boxes or remote-control foot pedals that link back to a main medical processing tower.
1. Technical Parameters & Engineering Standards
This medical device connector pair combines the TAG.1B fixed plug and the ZCG.1B fixed socket. The plug mounts directly into the peripheral chassis wall, while the socket sits flush on the main diagnostic tower’s internal acquisition motherboard.
- Latching Mechanism: Push-pull self-latching system (anti-vibration & shockproof)
- Recommended Hardware: Spring Technology Circular Connector
- Key Metric: 7-pin pair; chassis-wall plug + motherboard socket; 7-core cable bundle; >5,000 mating cycles
| Parameter | Value |
|---|---|
| Plug (this order) | CBTA1BG-SMSM07-0000 — TA fixed plug, 1B shell, key G, 7-pin, panel-fixed |
| Socket (this order) | CBZC1BG-SFSM07-0000 — ZC fixed socket, 1B shell, key G, 7-pin |
| Application | Medical device electronics and surgical carts |
| Use cases | Modular hot-swappable patient patch-boxes, remote-control foot pedals |
| Console link | Endoscopic or diagnostic consoles, main medical processing tower |
| Cable bundle | 7-core cable bundle between peripheral box and diagnostic tower |
| Signal type | Multi-channel sensor feeds, delicate bio-signals |
| Connector type | Plug: male pins, panel-fixed / Socket: female pins, motherboard mount |
| Number of positions | 2–16 pin (1B shell) |
| Fastening type | Push-pull |
| Protection level | IP50 |
| Operating temperature | -45 °C ~ +125 °C |
| Humidity resistance | Up to 95% RH at 60 °C |
| Vibration / shock | 10~2000 Hz, 15 g / 100 g·6 ms |
| Durability | > 5,000 mating cycles |
| Contact finish | Gold-plated mating contacts |
| Shell material / finish | Brass / Chrome |
2. Medical Device Connector Design Highlights
Operating rooms demand clean bio-signal transfer from peripheral devices to the processing tower. The design highlights below are why this CBTA1BG push-pull connector for medical device electronics is specified for surgical consoles:
- Chassis-wall plug keeps devices sleek — the CBTA1BG-SMSM07-0000 is fixed right into the peripheral chassis wall, keeping floor-bound foot-pedals and handheld controllers wire-free at the base.
- Internal cable assembly — an internal cable assembly routes up from the pedal switches to the back of the plug pins.
- 7-core cable bundle — the peripheral box hooks up via a 7-core cable bundle straight to the socket on the main diagnostic tower.
- Motherboard-mounted socket — the CBZC1BG-SFSM07-0000 sits flush on the internal acquisition motherboard, transferring delicate bio-signals without catching electrical room noise.
- Hot-swappable modularity — supports modular, hot-swappable patient patch-boxes in endoscopic and diagnostic consoles.
- Proven durability — >5,000 mating cycles for continuous hospital operation.
3. 1B Series Connector Family Overview
The 1B series is Spring Technology’s mid-size push-pull connector family, widely used in medical devices, instruments and control systems. The plug and socket in this order share the same 1B platform, with mounting options matched to chassis and motherboard integration.
3.1 Available Configurations
- Plugs: fixed plugs (this order), straight plugs, elbow plugs, plugs with bend relief, in 1B shell size.
- Sockets: fixed sockets (this order), sockets with PCB print contacts, sockets with elbow PCB contacts.
- Pin counts: 2 to 16 pins, solder or PCB termination.
- Keying: key G standard, with keys A–M and R available for segregation.
3.2 Customization Services
- Custom pin allocations and part numbers (such as the CBTA1BG-SMSM07-0000 / CBZC1BG-SFSM07-0000 pair) matched to each console’s signal plan.
- Pre-wired 7-core cable bundles and internal harnesses for pedal and patch-box assemblies.
- Shielding options for noise-free bio-signal transfer.
- Key orientation selection to keep power and signal circuits segregated.
4. Applications: Medical Device Electronics and Surgical Carts
From foot pedals on the operating room floor to the acquisition board inside the diagnostic tower, this CBTA1BG push-pull connector for medical device electronics carries multi-channel sensor feeds reliably.
4.1 Modular Patient Patch-Boxes
Hot-swappable patient patch-boxes manage multi-channel sensor feeds in endoscopic or diagnostic consoles. The 7-pin pair links each box to the main processing tower for quick exchange between procedures.
4.2 Remote-Control Foot Pedals
Surgical foot-pedals and handheld controllers stay sleek and wire-free at the base, with the plug fixed into the peripheral chassis wall and an internal cable assembly routing from the pedal switches to the plug pins.
4.3 Diagnostic Tower Acquisition
The socket sits flush on the main diagnostic tower’s internal acquisition motherboard, receiving the 7-core bundle from the peripheral box and transferring delicate bio-signals without catching electrical room noise.
5. Frequently Asked Questions (FAQ)
Conclusion & Call to Action
This 1B connector delivery for Czech customers shows how Spring Technology serves medical device electronics — from the CBTA1BG-SMSM07-0000 chassis-wall plug to the CBZC1BG-SFSM07-0000 motherboard socket, every detail was aligned with the customer’s surgical cart and console requirements. Spring Technology also provides professional customization services for both push-pull connectors and cable assemblies, offering tailored solutions to meet your specific technical requirements.
For more information about our 1B series connectors or to discuss your requirements, contact us at [email protected] or [email protected], or visit our website.
Building a surgical console or patch-box? Send us your signal plan and quantities — our engineering team will respond with a tailored CBTA1BG push-pull connector proposal for your medical device electronics within 24 hours.
