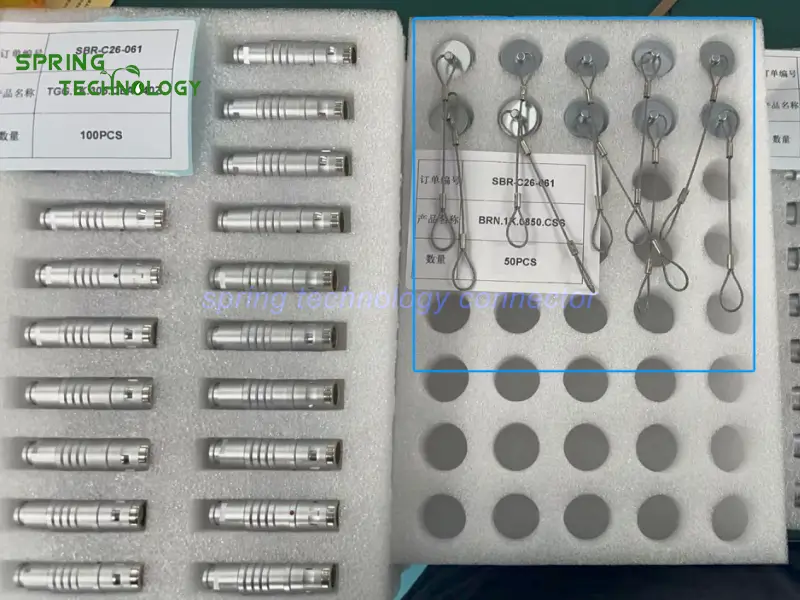

Push-Pull Connector for Automotive Testing 2026: CBTG1KG-SMSM06-D32Z Plug and Matching Dust Cover for Off-Road and Winter Prototype Testing for Italian Customers

The CBTG1KG-SMSM06-D32Z is a 1K push-pull connector for automotive testing — an IP68-rated 6-pin plug with a rugged metal shell that blocks flying rocks, muddy water splashes and extreme temperatures on prototype vehicles, shipped with a matching dust cover, with gold-plated contacts rated for over 5,000 mating cycles. Every specification in this guide is backed by the field-testing interconnect engineering of Spring Technology.

Pain point: Running sensor data lines on the exterior of prototype cars, motorcycles or heavy farm machinery — where cables taped along wheel wells and engine compartments face flying rocks, muddy splashes and winter cold, and a failed connector means a lost test run?

Core answer: For Italian customers, Spring Technology supplied the CBTG1KG-SMSM06-D32Z, a 1K series 6-pin push-pull connector for automotive testing, together with a matching dust cover. Automotive testing engineers use this plug to run data lines on the exterior of prototype cars, motorcycles or heavy farm machinery during field trials. It terminates thin sensor cables taped along the wheel wells or engine compartments, connecting wheel-force transducers or infrared brake-temperature sensors back to an in-cabin data logger. The rugged metal shell blocks flying rocks, muddy water splashes and extreme temperatures.

1. Technical Parameters & Engineering Standards

This automotive testing connector is built on the TGG.1K waterproof plug platform: a compact push-pull connector engineered for harsh outdoor use, with a rugged metal shell, gold-plated contacts and IP68-rated sealing when mated. The matching dust cover protects the connector when not in use.

  • Latching Mechanism: Push-pull self-latching system (anti-vibration & shockproof)
  • Recommended Hardware: Spring Technology Circular Connector
  • Key Metric: IP68/IP66 when mated; rugged metal shell; matching dust cover; >5,000 mating cycles
ParameterValue
Connector (this order)CBTG1KG-SMSM06-D32Z — TG straight plug, 1K shell, key G, 6-pin solder
AccessoryMatching dust cover for unmated protection
ApplicationOff-road and winter prototype testing data lines on vehicles
Sensor linksWheel-force transducers, infrared brake-temperature sensors
Connector typePlug, male pins
Number of positions2–16 pin (1K shell)
TerminationSolder
Fastening typePush-pull
Protection (mated)IP68 / IP66
Operating temperature-45 °C ~ +125 °C
Humidity resistanceUp to 95% RH
Vibration10~20000 Hz, 15 g
Salt spray corrosion test> 48 h
Durability> 5,000 mating cycles
Contact finishGold-plated mating contacts
Shell material / finishBrass / Chrome

2. Automotive Testing Connector Design Highlights

Prototype testing exposes connectors to the worst a road or field can throw at them. The design highlights below are why this push-pull connector for automotive testing is specified for off-road and winter trials:

  • Rugged metal shell — blocks flying rocks, muddy water splashes and the abuse of field trials on cars, motorcycles and farm machinery.
  • Extreme temperature tolerance — -45 °C to +125 °C covers winter testing and hot engine compartments.
  • Thin sensor cable termination — terminates the thin sensor cables taped along wheel wells and engine compartments.
  • Wheel-force and brake-temperature links — connects wheel-force transducers and infrared brake-temperature sensors back to the in-cabin data logger.
  • Matching dust cover — protects the connector from dirt and moisture when sensors are disconnected between test runs.
  • Proven durability — >5,000 mating cycles, 15 g vibration tolerance and >48 h salt spray resistance.

3. 1K Series Connector Family Overview

The 1K series is Spring Technology’s waterproof push-pull connector family for demanding outdoor and industrial applications. The same 1K platform serves this automotive testing connector and is trusted across vehicle, drone and field equipment ranges.

3.1 Available Configurations

  • Plugs: straight plugs (this order), plugs with bend relief, in 1K shell size.
  • Pin counts: 2 to 16 pins, with solder termination.
  • Sockets: fixed sockets, free sockets and receptacles for panel and cable mounting.
  • Accessories: matching dust covers for unmated connector protection.
  • Keying: key G standard, with keys A to F, L and R available for multi-connector segregation.

3.2 Customization Services

  • Custom pin allocations and part numbers (such as the CBTG1KG-SMSM06-D32Z) matched to each test vehicle’s sensor plan.
  • Pre-wired cable assemblies with thin, abrasion-resistant jackets for wheel-well and engine-compartment routing.
  • Dust cover and accessory options for field use.
  • Key orientation selection to keep sensor circuits segregated.

4. Applications: Off-Road and Winter Prototype Testing

Automotive testing engineers instrument prototype vehicles to measure forces, temperatures and dynamics in the field. This push-pull connector for automotive testing carries those sensor links reliably.

4.1 Prototype Cars, Motorcycles and Farm Machinery

Data lines run on the exterior of prototype cars, motorcycles and heavy farm machinery during field trials, facing rocks, mud and weather. The rugged metal shell of this plug keeps the sensor link intact through the test.

4.2 Wheel-Force and Brake-Temperature Sensors

Thin sensor cables taped along wheel wells and engine compartments connect wheel-force transducers and infrared brake-temperature sensors back to the in-cabin data logger, giving engineers clean measurement data.

4.3 Winter Testing Protection

In winter trials, connectors face freezing temperatures, salt and slush. The wide operating range and salt spray resistance of this connector, combined with its matching dust cover, protect the instrumentation through the season.

5. Frequently Asked Questions (FAQ)

Q1: What does the matching dust cover do?

**Answer:** The matching dust cover protects the connector from dirt, mud and moisture when sensors are disconnected between test runs, keeping the contacts clean for the next connection.

**Answer:** The rugged metal shell blocks flying rocks and muddy water splashes, while the IP68/IP66 rating when mated and -45 °C to +125 °C range handle winter and engine-compartment conditions. Discover reliable options from a certified vendor like [Spring Technology](https://www.spring-connectors.com/).

**Answer:** It connects wheel-force transducers and infrared brake-temperature sensors back to an in-cabin data logger, via thin sensor cables taped along wheel wells or engine compartments.

**Answer:** Yes. Spring Technology offers custom pin allocations, pre-wired sensor cable assemblies, dust cover options and key orientations on the 1K platform.

**Answer:** Contact Spring Technology via email at [email protected] or [email protected] with your sensor plan, cable routing and quantities, and the engineering team will respond with a tailored proposal.

Conclusion & Call to Action

This 1K connector delivery for Italian customers shows how Spring Technology turns its waterproof 1K platform into a reliable field-testing link — from the CBTG1KG-SMSM06-D32Z plug to its matching dust cover, every detail was aligned with the customer’s off-road and winter prototype testing requirements. Spring Technology also provides professional customization services for both push-pull connectors and cable assemblies, offering tailored solutions to meet your specific technical requirements.

For more information about our 1K series connectors or to discuss your requirements, contact us at [email protected] or [email protected], or visit our website.

Instrumenting a prototype vehicle? Send us your sensor plan, cable routing and quantities — our engineering team will respond with a tailored push-pull connector proposal for your automotive testing program within 24 hours.
