CBME2CG Push-Pull Connector for ROV Thruster Systems 2026: 2C Series 3-Contact IP68 Panel Socket for Underwater Vehicles

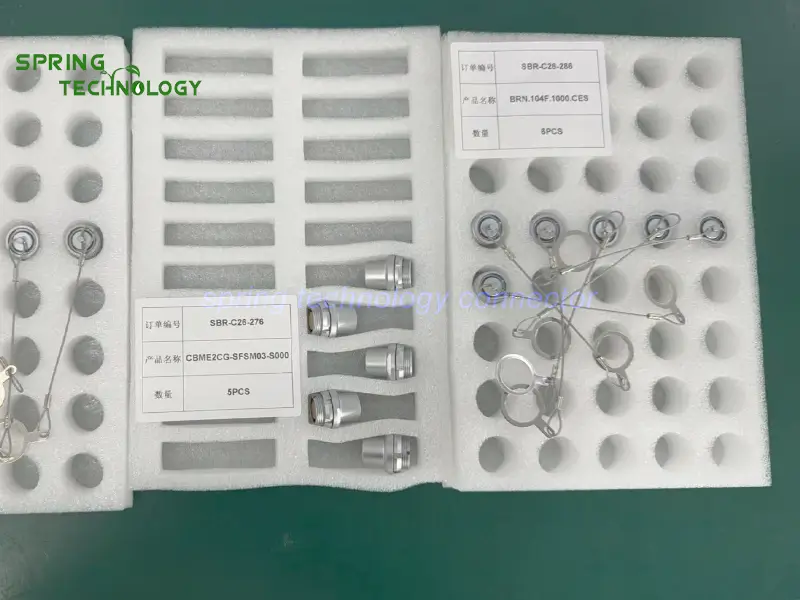

The CBME2CG-SFSM03-S000 is a CBME2CG push-pull connector for ROV thruster systems — a panel-mounted 2C series fixed socket with a 3-contact (303) insert, IP68/IP66 protection when mated, a chrome-plated brass shell with PPS insulator, more than 5,000 mating cycles and a watertight or vacuumtight sealing arrangement. Every specification in this guide is backed by the subsea interconnect engineering of Spring Technology.

Pain point: Bringing power and control wiring through the wall of an underwater vehicle — where water ingress causes corrosion, insulation degradation or outright failure, thruster modules are disconnected and refitted during servicing, and the interface must stay sealed through launch, recovery and maneuvering?

Core answer: Spring Technology supplies the CBME2CG-SFSM03-S000, a panel-mounted interface that can be evaluated for underwater robotic systems where waterproof protection, secure locking and mechanical durability are important for dependable operation. An underwater remotely operated vehicle uses electric thrusters to control movement, maintain position and maneuver around underwater structures, with a propulsion system that may include thruster motors, motor controllers, power distribution units and control electronics. Electrical connectors in these systems must withstand water exposure, vibration and repeated maintenance, so a suitable panel-mounted connector provides the interface between the vehicle’s internal wiring and removable propulsion or auxiliary modules.

This CBME2CG push-pull connector for ROV thruster systems is built on the 2C series waterproof fixed socket platform, part of Spring Technology’s multi-polar waterproof connector family for outdoor and exposed environments.

• Latching Mechanism: Push-pull locking mechanism (quick connection and release without repeatedly rotating a threaded coupling nut)
• Recommended Hardware: Spring Technology Circular Connector
• Key Metric: 3 contacts (303 insert); IP68/IP66 when mated; panel-mounted; >5,000 mating cycles

Note: the final protection level of an installed system depends on the exact connector variant, mating connector, cable assembly, sealing accessories, installation and the specified operating depth and duration.

Underwater propulsion leaves no margin for a wet connection. The design considerations below explain why this CBME2CG push-pull connector for ROV thruster systems suits panel-mounted subsea interfaces:

• Water ingress is a major concern in underwater robotic systems: moisture entering an electrical connection can cause corrosion, insulation degradation or equipment failure. The 2C connector family is designed for outdoor and exposed environments and offers IP68 protection in specified configurations, making the family relevant to equipment requiring enhanced environmental sealing. For an ROV thruster system, a correctly specified and fully mated connector assembly helps protect electrical interfaces against water exposure.

• ROVs often require inspection and maintenance after underwater operations, with thruster modules, power cables and auxiliary components disconnected during servicing. The push-pull locking mechanism enables quick connection and release without repeatedly rotating a threaded coupling nut, simplifying cable replacement and module servicing — while a secure latching connection helps reduce the risk of accidental disconnection during normal handling.

• The HEG connector designation belongs to a fixed-socket style in Spring Technology’s connector nomenclature, useful when an electrical connection must be integrated into an equipment panel or housing. In an underwater ROV, a panel-mounted interface may be considered for a propulsion power distribution enclosure, thruster controller housing or auxiliary electrical module — organising cable routing, simplifying assembly and providing a defined connection point for servicing.

• The 303 insert designation identifies a three-contact configuration in the 2C connector family. A three-contact arrangement may suit a defined power or auxiliary electrical circuit where the current, voltage, grounding and isolation requirements are compatible — for example an auxiliary power interface or a motor-related connection where the electrical architecture supports that configuration. Contact count alone does not establish suitability for a specific thruster motor: the actual current demand, motor drive topology, cable size and protection strategy must be verified before selecting the connector.

• Underwater vehicles experience movement during launch, recovery, maneuvering and contact with support equipment, so electrical connections should be selected with mechanical durability in mind. The 2C platform specifications include vibration resistance of 15 g over 10–2000 Hz, shock resistance of 100 g (6 ms) and more than 5,000 mating cycles — useful reference points when evaluating the family for ROV equipment.

• ROVs contain motor drives, switching electronics, sensors and communication systems, so electromagnetic compatibility is an important consideration when designing power and control interfaces. Where a shielded connector and suitable cable assembly are used as part of a correctly designed system, they help manage electromagnetic interference. The overall result depends on cable shielding, grounding, connector termination, enclosure design and the frequency characteristics of the electrical noise — shielding alone does not guarantee interference-free operation.

The connector is worth evaluating for an underwater ROV electrical interface when the design requires:

• Environmental sealing: protection appropriate to the specified underwater operating conditions.
• Push-Pull connection: fast mating and release during equipment maintenance.
• Panel integration: a defined electrical interface on a housing or equipment panel.
• Three-contact configuration: a compact arrangement for compatible power or auxiliary circuits.
• Mechanical durability: connector performance suited to the vehicle’s shock, vibration and service-cycle requirements.
• System-level reliability: a connection design selected according to the actual electrical and environmental requirements.

The 2C shell belongs to Spring Technology’s waterproof multi-polar connector family for outdoor and exposed environments. Fixed sockets in this family are watertight or vacuumtight, use nut fixing and can be blind-mated thanks to a guiding mechanism that ensures precise alignment.

• Sockets: 2C fixed sockets, including the waterproof panel-mounted version in this order.
• Pin counts: 2–19 pins across the 2C shell, including the 3-contact (303) layout.
• Keys: key G or alternative key combinations (A, B …) to prevent mismating.
• Materials: chrome-plated brass shells with PPS insulators and gold contacts.

• Custom pin counts and part numbers (such as the CBME2CG-SFSM03-S000) matched to each vehicle’s power and control plan.
• Sealed cable assemblies with the required jacket and gland arrangement.
• Panel hole and mounting support for thruster enclosures and distribution housings.
• Guidance on mating plug selection and blind-mate alignment.

These are potential application areas for this CBME2CG push-pull connector for ROV thruster systems, not verified installations of the exact CBME2CG-SFSM03-S000 part number. Depending on the final electrical and mechanical design, the connector may be evaluated for:

Thruster power interfaces and ROV auxiliary power modules, where a sealed three-contact arrangement matches the circuit design.

Underwater robotic control enclosures and subsea inspection robot electrical panels requiring a defined panel-mounted interface.

Marine equipment power distribution modules, underwater positioning and maneuvering systems, and remotely operated underwater inspection equipment.

This 2C connector delivery shows how Spring Technology serves subsea equipment — from the IP68/IP66 sealed 3-contact panel socket to its push-pull locking and blind-mate alignment, every detail was aligned with the customer’s ROV thruster system requirements. Spring Technology also provides professional customization services for both push-pull connectors and cable assemblies, offering tailored solutions to meet your specific technical requirements.

For more information about our 2C series connectors or to discuss your requirements, contact us at [email protected] or [email protected], or visit our website.

Building an underwater ROV or subsea electrical housing? Send us your sealing, current and mounting requirements — our engineering team will respond with a tailored CBME2CG push-pull connector proposal for your ROV thruster systems within 24 hours.
