Spring Technology Push-pull Connectors for Group Voice and Data Radios: Secure, Fast, and Reliable Communication Interfaces
Spring Technology Push-pull connectors for group voice and data radios are specialized, ruggedized connectors designed to provide fast, secure, and stable connections in mission-critical communication systems. With their automatic locking mechanism, compact form, and high resistance to vibration and environmental stress, these connectors ensure uninterrupted voice and data transmission for professional radio networks such as public safety, transportation, industrial operations, military communication, and emergency response.

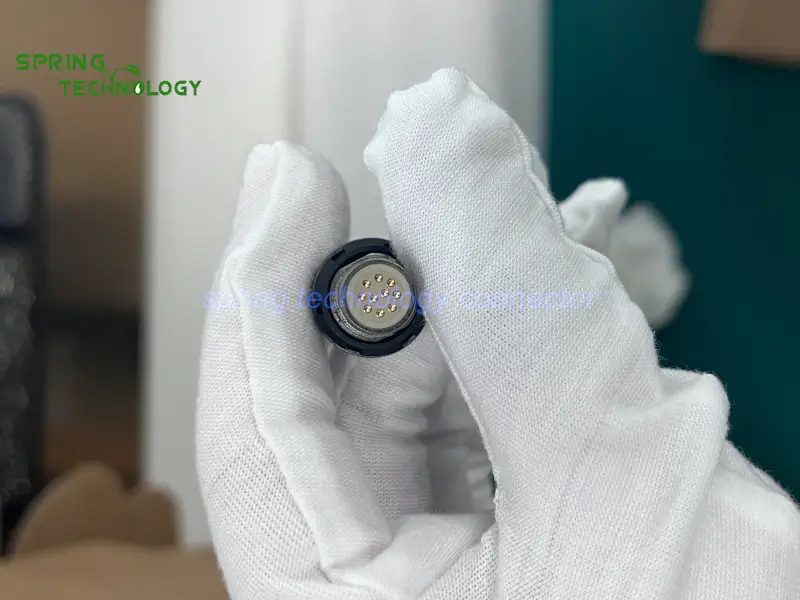

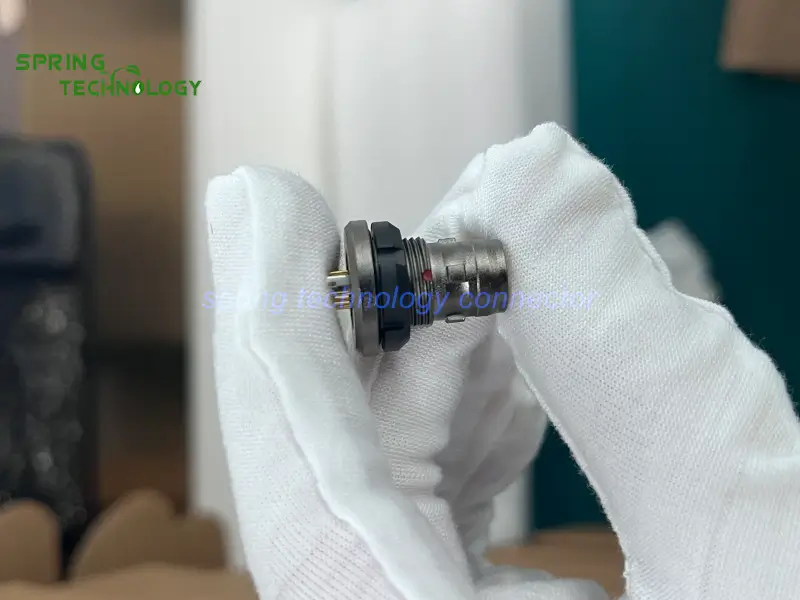

We have made 1000pcs connector RAK13XA-KMSM10-M72 (equivalent with K11YAR-P10XDD0-R000) for customer in Lithuania.It is 10 contact circular solder receptacle. Engineered with dust-tight, water-resistant, and fully waterproof properties, this connector delivers reliable performance in harsh environments for industrial, medical, communications, and military application.
What Are Push-pull Connectors for Group Voice and Data Radios?
Group voice and data radios are used in environments where teams need continuous, reliable communication—often under challenging conditions. Push-pull connectors serve as the interface that links antennas, headsets, data modules, battery packs, and external terminals to the radio body.
Unlike threaded or bayonet-style connectors, push-pull connectors use a quick-lock, quick-release mechanism that securely engages when pushed in and disconnects only when intentionally pulled. This prevents accidental disconnection during movement, intense activity, or harsh environmental exposure—making them ideal for professional communication devices.
Key Features and Advantages
- Instant Secure Locking
- The push-pull mechanism minimizes connection time.
- Maintains stable connectivity during vibration, drops, or sudden movements.
- High Data and Voice Transmission Quality
- Low contact resistance ensures clear, uninterrupted voice clarity.
- High shielding effectiveness supports fast and reliable data transfer.
- Excellent EMI/RFI protection for use near heavy machinery and electrical systems.
- Rugged, Field-Ready Durability
- Designed to withstand harsh environmental conditions—dust, moisture, heat, and cold.
- Many models offer IP67/IP68 sealing for full waterproof protection.
- Resistant to repeated handling, bending, and physical stress.
- Compact and Lightweight
- Ideal for portable radios and wearable communication devices.
- Helps reduce bulk on belts, vests, helmets, and mobile platforms.
- Versatile Design Options
- Available in multi-pin, coaxial, hybrid (power + signal), and fiber-enabled versions.
- Compatible with analog and digital radio systems, including LTE, TETRA, DMR, and broadband solutions.
Common Applications in Group Voice and Data Radio Systems
Push-pull connectors are widely used across multiple radio communication components, such as:
- Antenna ports for mobile, portable, or body-worn radios
- Remote speaker microphones (RSM)
- Headsets and ear protection communication systems
- GPS/GNSS modules used for tracking and fleet coordination
- External data modules for text, telemetry, or control signals
- Battery and power interface connectors
- Vehicle-mounted radio docking stations
- Surveillance and tactical communication accessories
Why Push-pull Connectors Are the Best Choice for Professional Radio Systems
Group communication devices often operate in mission-critical environments—firefighting, security patrols, industrial operations, logistics fleets, and emergency response.
Push-pull connectors enhance radio operation by offering:
- Quick accessory changeover
- Reduced downtime during field operations
- Uniform electrical performance across thousands of cycles
- Secure locking that prevents dropped communication
- Better user ergonomics for gloved or rapid-use conditions
These factors contribute significantly to safer, more efficient group coordination in demanding real-world scenarios.
Selection Considerations for Radio Manufacturers
Manufacturers of communication equipment should consider:
- Pin count and configuration based on signal and power requirements
- Shielding needs for RF-intensive environments
- Environmental sealing level (IP67 or IP68 recommended)
- Material selection (metal for ruggedness, high-strength polymer for lightweight radios)
- Mating cycle lifespan for long-term reliability
- Compatibility with radio accessories and tactical gear
Conclusion
Spring Technology Push-pull connectors provide unmatched reliability, speed, and security for group voice and data radio systems. Their robust locking mechanism, superior signal integrity, and rugged environmental resistance make them indispensable for communication equipment used in public safety, industrial operations, and tactical missions. By integrating push-pull connectors, radio manufacturers can improve system performance, usability, and operational safety in environments where dependable communication is essential.
FAQ
Q1: Why are push-pull connectors used in group voice and data radios?
They offer fast, secure locking that prevents accidental disconnects while ensuring stable voice and data transmission.
Q2: Are these connectors suitable for outdoor or harsh environments?
Yes. Many models feature IP67/IP68 sealing and rugged shells built for dust, moisture, and mechanical shock resistance.
Q3: Can push-pull connectors support both analog and digital radios?
Absolutely. They are compatible with analog systems as well as digital platforms like TETRA, DMR, LTE, and broadband radios.
Q4: Do these connectors affect signal quality?
No—high-quality push-pull connectors maintain excellent voice clarity and support reliable high-speed data transfer thanks to low resistance and strong EMI shielding.
Q5: What accessories commonly use push-pull connectors in radio systems?
Antenna modules, headsets, remote speaker microphones, external data modules, GNSS units, and power interfaces.
X Series Connector straight push-pull connectors have high-speed needle contact for transmit common data transmission protocols,It is used in high-density installations, relatively narrow spaces, and where it is difficult to insert and separate by rotation. Widely used in the military and civilian fields of radio equipment, infantry equipment, reinforced computers, medical equipment, testing equipment, audio and video equipment, data acquisition, industrial control and other occasions for AC and DC, high-speed, radio frequency, optical fiber and other signal connection transmission. Making it an ideal choice for Medical, Test & Measurement, Research, Communications, Broadcast Connector, Machines, Defense, Robotic, Aerospace, public sector, Information Systems, Motorsport, Miscellaneous applications.
- High-Speed Capabilities: Supports direct transmission of high-speed signals for various standard protocols (USB2.0, USB3.0, Gigabit Ethernet, 10 Gigabit Ethernet, HDMI, SATA, DP, etc.).
- Single Connector: Integrates the transmission of multiple signals including low-frequency, power, high-speed, RF, and optical fiber through a single connector.
- Straight Push-Pull Locking Structure for Plugs and Sockets: Enables blind mating and allows for quick connections and disconnections.
- Nut-Fastened Socket Installation: Equipped with a conductive O-ring, providing shielding and sealing functions.
- Multi-Key Positioning: dual error-prevention methods with aliginment key structure error-proofing and visual color cues to prevent incorrect insertion.
- Socket Leakage Rate: With a pressure differential of 1×10^5 Pa, the leakage rate should be less than 1.0 Pa·cm³/s (excluding optical fiber and RF products).
- Water Pressure Resistance: After mating, the plug and socket can withstand water pressure at a depth of 2 meters for 24 hours (excluding optical fiber and RF products).
- Pin and Socket Compatibility: Both plugs and sockets can be fitted with either pins or sockets (excluding optical fiber and RF products).
- High-Speed and Low-Frequency Electrical Contacts Termination: Plugs use wire soldering, and sockets are available in wire soldering and straight PCB soldering types.
Xi’an spring technology Co., Ltd. is a professional push pull connector manufacturer integrating connector research and development, production and sales. Contact me for more info and best price.
