DJL04 module connector size chart：

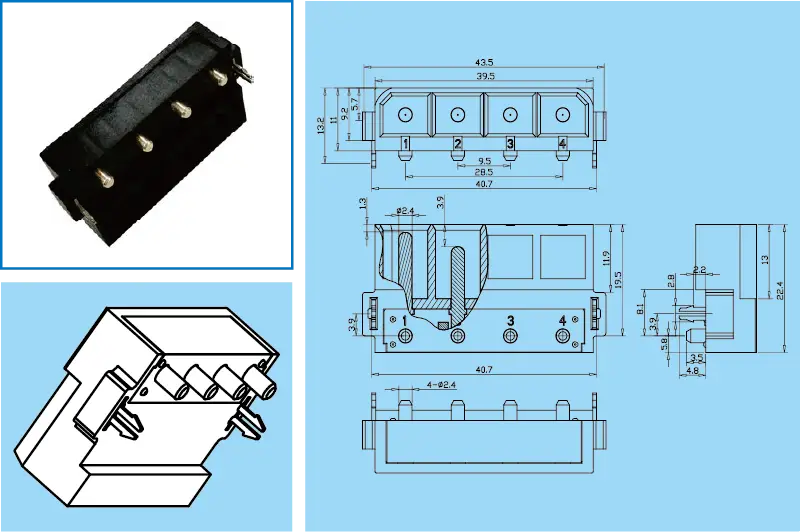

DJL04 male contact
DJL04 female contact

1. DJL04 brief introduction:

The connector plug insulator has the function of preventing mis-insertion; when the plug and the socket are matched, the shell part is chamfered, and the pin and the front end of the jack are chamfered, and the multi-guide ensures that the plug and the seat have good after installation. Cooperate.

2. DJL04 opening size:

DJL04-openning-size

3. DJL04 module connector technical parameters:

1，the main performance indicators of the product:

Rated current: 12# pin (power supply): 35A
Rated voltage: between power supply holes (1-4): 3500V (AC)
Contact resistance: 12# pin (power supply): ≤1.0 mΩ;
Insulation resistance: ≥3000MΩ
Mechanical life: 500 times
Vibration: 10Hz ~ 500Hz, acceleration 98m / s2,instantaneous break ≤1μs
impact: peak acceleration 147m/s2, instantaneous break ≤1μs
Operating temperature: -40°C～125°C
Operating humidity: 90% to 95% (40 ° C ± 2 ° C)

2， the main materials of the product:
Contact body: 12# jack (power supply): copper alloy (silver base back surface silver plated)
Insulator: PBT + 15% GF (UL94 V-0) black
Positioning claw: beryllium copper alloy (natural color)

4. DJL04 module technical parameters

The product is placed in a small cell of a plastic tray, and then packaged in a box, and the product packaged in a box should have an ambient temperature of -10 ° C to 40 ° C, a relative humidity of 80% or less, and no acid or alkaline in the surrounding air. Or storage in the warehouse of other corrosive gases.

5. DJL04 technical characteristics:

DJL04-technical-characteristics
