104F High-Speed Data Cable: TGN.104F.814.HLAD72 & TGN.104F.812.CLLD72 Customized for Russian Client

Looking for a 104F high-speed data cable that keeps signal integrity in harsh, space-constrained equipment? OEMs in Russia and across Europe face exactly this challenge when routing high-speed data through waterproof enclosures, moving machinery, and industrial displays — and a sealed, self-latching connection is the answer.

Core answer: Spring Technology has delivered a next-generation high-speed data cable assembly customized for a Russian client, built on two TGN.104F cable-mounted plugs — the TGN.104F.814.HLAD72 (14-position) and the TGN.104F.812.CLLD72 (3 coaxial + 9 signal hybrid). Both plugs combine IP68 waterproofing, push-pull connector convenience, and high-speed signal transmission in a single reliable connection system.

1. Product Overview: 104F High-Speed Data Cable Assembly

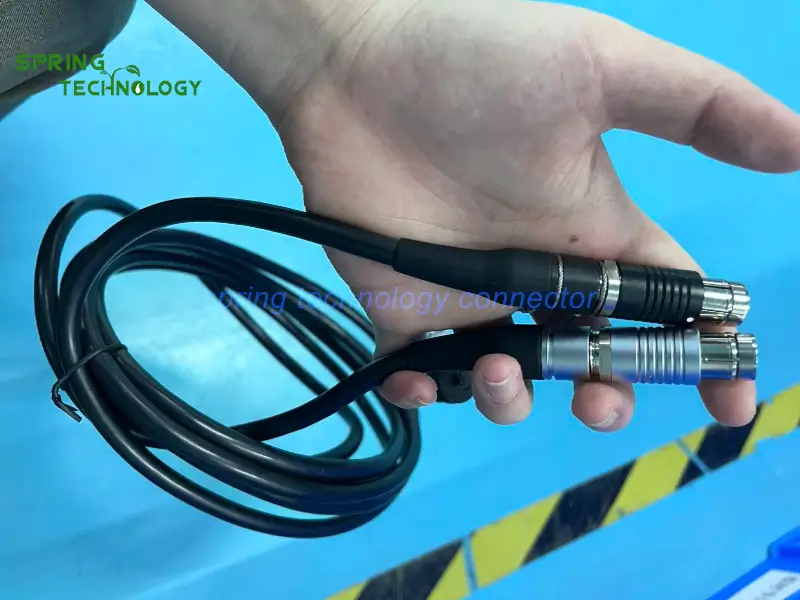

Spring Technology engineered this custom 104F high-speed data cable assembly for a Russian client’s next-generation equipment, pairing two TGN plugs in one cable system for combined coaxial, signal, and data transmission.

ModelContact ConfigurationMountingCore Features
TGN.104F.814.HLAD7214-position hybridCable mount plugHigh-speed data channels, IP68, self-latching
TGN.104F.812.CLLD7212 contacts (3 coax + 9 signal)Cable mount plugCoaxial + signal hybrid, shielded, IP68

1.1 Key Features of the Custom Cable System

  • IP68 waterproof sealing (mated): Reliable operation in moisture, rain, and washdown environments.
  • Push-pull fastening: Fast, tool-free mating and unmating with a secure lock — ideal for frequent connection cycles.
  • Hybrid contact layouts: Coaxial and signal contacts in the same plug reduce cable count and panel space.
  • Gold-plated contacts with PPS insulator: Low and stable contact resistance for reliable high-speed transmission.
  • Durable metal construction: Brass shell with chrome finish, rated for more than 3000 mating cycles.
  • Wide operating temperature: -55°C to +145°C, withstanding humidity up to 95% at 40°C.
  • Custom cable construction: Length, jacket material, and overmolding tailored to the Russian client’s installation.

2. 104F Series Connector Family Overview

The 104F series is a waterproof push-pull connector platform from Spring Technology, engineered for applications where reliable signal and power transmission must survive vibration, moisture, and dust. It is part of the broader F-Series waterproof family alongside 102F, 103F, 1031F, and 105F.

2.1 Series Characteristics

  • Push-pull fastening: Quick connect/disconnect with positive locking feedback.
  • IP68 protection index (mated): Fully sealed for outdoor and washdown applications.
  • 2-19 position configurations: Signal, coaxial, and power contacts in compact shells.
  • Brass shell with chrome finish: Silver/black color options with gold-plated contacts and PPS insulators.
  • Environmental endurance: Operating temperature -55°C to +145°C, vibration and impact resistant, over 3000 mating cycles.

For the complete range, visit the 104F series connector product page.

2.2 TGN.104F.814.HLAD72 Plug

  • Model: TGN.104F.814.HLAD72
  • Configuration: 14-position cable mount plug
  • Role: High-speed data channels within the custom cable assembly
  • Sealing: IP68 waterproof (mated)

See the TGN.104F Straight Plug product page for the full technical specification of this plug family.

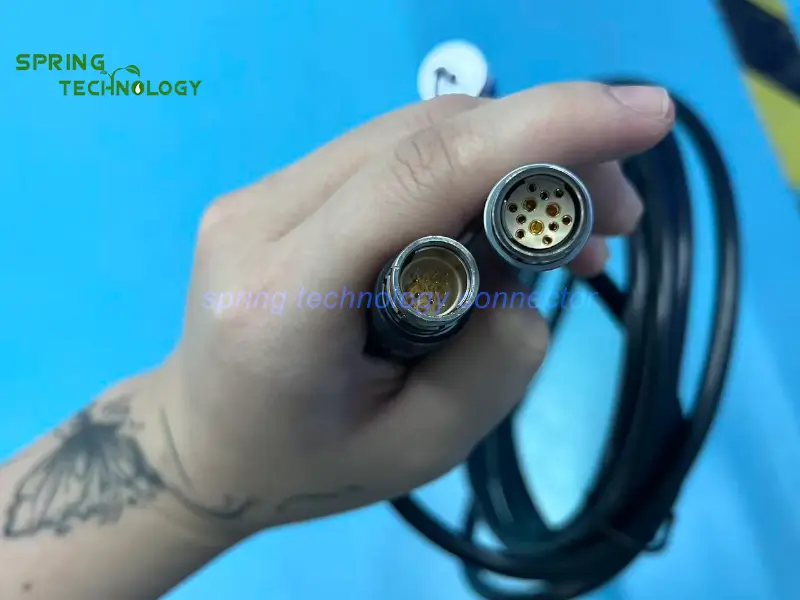

2.3 TGN.104F.812.CLLD72 Plug

  • Model: TGN.104F.812.CLLD72
  • Configuration: 3 coaxial + 9 signal contacts (12 total)
  • Role: Simultaneous coaxial and signal transmission in one plug
  • Sealing: IP68 waterproof with shielded contacts

2.4 Customization Services

Every 104F-based cable can be adapted to the application. Spring Technology customization services include:

  • Cable Assembly: Custom cable length, connector configuration, and overmolding.
  • Custom Inserts: Specific pin arrangements and mixed contact configurations.
  • Special Materials: Shell materials, plating options, and custom colors.

3. Applications: High-Speed Data Transmission in Demanding Environments

Hybrid 104F data cables are deployed wherever high-speed signals must travel through waterproof, vibration-prone, or space-limited systems. The Russian client’s next-generation equipment relies on this cable for uninterrupted data flow in real-world operating conditions.

3.1 Industrial Automation & Machine Vision

  • Robotic arms and motion control systems
  • Machine vision cameras and sensors
  • Factory networking and control cabinets

3.2 Medical & Diagnostic Equipment

  • Surgical beds and operating room devices
  • Patient monitoring and imaging systems
  • Diagnostic instruments requiring hygienic, sealed connections

3.3 Display, Broadcast & AV Systems

  • Industrial LCD displays and digital signage
  • Broadcast cameras and signal routing
  • Video walls and outdoor displays

3.4 Data Communication & Networking

  • High-speed data links between control units
  • Embedded systems and communication racks
  • Field-installed network equipment

The global push-pull connector market is projected to reach $1.8 billion by 2027 (CAGR 5.8%), while the waterproof connector segment is expected to grow toward $4.5 billion by 2028. In Russia specifically, the electronic components market is forecast to hit $8.2 billion by 2027 (CAGR 7.1%), driven by telecom infrastructure and industrial automation — precisely the sectors demanding high-speed data cables with sealed push-pull connector interfaces.

4. Common Questions (FAQ)

Q1: What is the difference between the TGN.104F.814.HLAD72 and TGN.104F.812.CLLD72 plugs?

The TGN.104F.814.HLAD72 is a 14-position cable mount plug carrying high-speed data channels, while the TGN.104F.812.CLLD72 combines 3 coaxial and 9 signal contacts in a 12-contact hybrid layout. Both are IP68-rated cable-mounted plugs from the 104F series and work together in the same custom cable assembly. Contact Spring Technology with your contact arrangement requirements for an exact configuration match.

Q2: Can the 104F high-speed data cable be customized for my application?

Yes. Cable length, jacket material, contact arrangements, plating, and overmolding can all be tailored to your equipment. The Russian client’s cable is itself a custom build combining two plug configurations. Spring Technology provides professional customization services for both push-pull connector systems and complete cable assemblies.

Q3: Is the 104F series compatible with LEMO connectors?

The 104F series connector offers excellent compatibility with many leading supplier systems. For specific LEMO interchangeability requirements, please contact our engineering team at [email protected] with your application details.

Q4: What environments can the 104F waterproof plug withstand?

Per the TGN.104F technical specification, the mated plugs deliver IP68 protection, operate from -55°C to +145°C, and withstand humidity up to 95% at 40°C. They are also rated for vibration (10-20000Hz) and impact (490m/s²) with ≤1um instantaneous break, making them suitable for outdoor installations, washdown areas, humid production lines, and equipment exposed to dust and vibration.

Q5: What is the typical lead time for 104F orders?

Standard orders typically ship within 20 working days. Larger quantities (500+ pcs) may require up to 40 working days. Rush orders and express shipping options are available — contact our sales team for confirmation.

5. Conclusion & Call to Action

This custom 104F high-speed data cable for the Russian client demonstrates how Spring Technology turns a demanding requirement into a production-ready connection system: two TGN.104F plugs, hybrid coax + signal layouts, IP68 waterproofing, and push-pull connector convenience in a single cable assembly. Whether you need a high-speed data cable for industrial equipment, medical devices, or display systems, the same engineering process applies to your project.

Spring Technology also provides professional customization services for both push-pull connectors and cable assemblies, offering tailored solutions to meet your specific technical requirements.

For pricing, samples, or technical questions about the 104F series, contact us at [email protected] or [email protected], or visit our website.

Ready to build your custom high-speed data cable? Send us your contact layout and environmental requirements — our engineers will respond with a tailored solution within 24 hours.
