Push-Pull Connector for Control Cabinets 2026: CBTG2BG-SMSM02-D52B and CBME2BG-SFSM10-0000 for Advanced Industrial Automation and Robotics Control Cabinets for Russian Customers

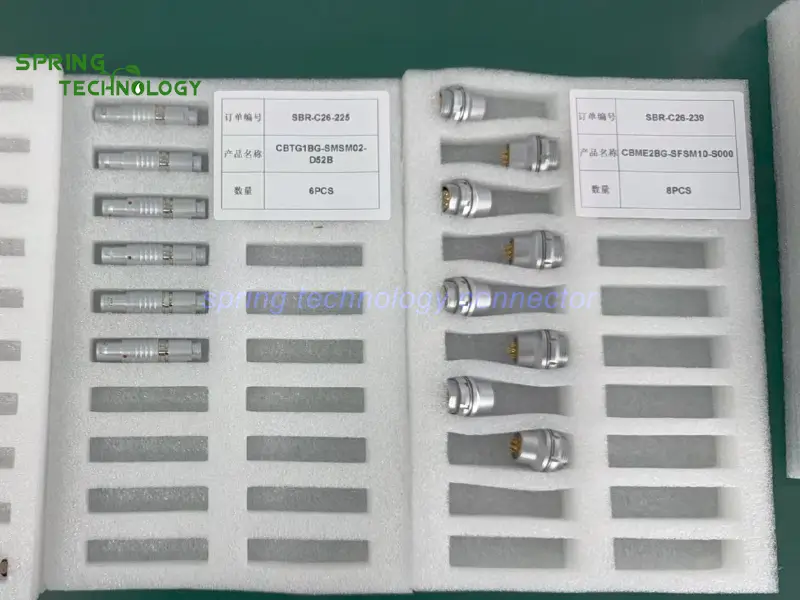

Spring Technology supplied Russian customers with a 2B push-pull connector for control cabinets pair — the CBTG2BG-SMSM02-D52B plug for robotic arm power and the CBME2BG-SFSM10-0000 IP68 hermetic panel socket for a 10-signal matrix — protecting the air-conditioned interior of automation cabinets from factory-floor contamination, with gold-plated contacts rated for over 5,000 mating cycles. Every specification in this guide is backed by the industrial automation interconnect engineering of Spring Technology.
Pain point: Running power and signals into an automated control cabinet on a factory floor — where a robotic arm draws heavy motor current, and fine metal dust, oil mist and humidity can creep through every panel opening to damage the air-conditioned computer interior?
Core answer: For Russian customers in advanced industrial automation and robotics, Spring Technology supplied a 2B series push-pull connector for control cabinets pair. The CBTG2BG-SMSM02-D52B plug connects to the main power lines running down to a multi-axis robotic arm, supplying the heavy current needed to drive the joint motors. The CBME2BG-SFSM10-0000 panel socket mounts on the exterior wall of the main automated control cabinet and routes a parallel matrix of 10 signals, such as absolute encoder feedbacks, CAN-bus networks and proximity sensor loops. Its HEG hermetic seal blocks factory-floor contaminants — fine metal dust, oil mist and humidity — from penetrating the air-conditioned interior of the computer cabinet.
1. Technical Parameters & Engineering Standards
This push-pull connector for control cabinets pair combines the TGG.2B straight plug and the HEG.2B IP68 fixed socket, two 2B series designs built for industrial automation environments. The plug carries high-current motor power; the socket brings a sealed 10-signal matrix through the cabinet wall.
- Latching Mechanism: Push-pull self-latching system (anti-vibration & shockproof)
- Recommended Hardware: Spring Technology Circular Connector
- Key Metric: Heavy-current arm power line; 10-signal parallel matrix; HEG hermetic seal (IP68 mated)
| Parameter | Value |
|---|---|
| Plug (this order) | CBTG2BG-SMSM02-D52B — TG straight plug, 2B shell, key G, 2-pin solder |
| Socket (this order) | CBME2BG-SFSM10-0000 — HEG fixed socket, 2B shell, key G, 10-pin, panel mount |
| Plug role | Main power lines to multi-axis robotic arm (joint motor drive) |
| Socket role | 10-signal parallel matrix: encoder feedbacks, CAN-bus, proximity sensor loops |
| Socket sealing | HEG hermetic seal — blocks metal dust, oil mist and humidity (IP68 when mated) |
| Tipo de conector | Plug: male pins / Socket: female pins |
| Número de posiciones | 2–26 pin (2B shell) |
| Terminación | Soldar |
| Tipo de fijación | Empujar tirar |
| Protection level (socket) | IP68 (mated) |
| Operating temperature | -45 °C ~ +125 °C |
| Humidity resistance | Up to 95% RH at 60 °C |
| Vibration / shock | 10~20000 Hz, 15 g / 100 g·6 ms |
| Durability | > 5,000 mating cycles |
| Contact finish | Gold-plated mating contacts |
| Shell material / finish | Brass / Chrome |
2. Control Cabinet Connector Design Highlights
Automation cabinets combine high-current drives with sensitive electronics in one sealed enclosure. The design highlights below are why this push-pull connector for control cabinets pair is specified for advanced industrial automation and robotics:
- Heavy current for robotic arm joint motors — the CBTG2BG-SMSM02-D52B carries the main power lines that drive the joint motors of a multi-axis robotic arm.
- 10-signal parallel matrix — the CBME2BG-SFSM10-0000 routes absolute encoder feedbacks, CAN-bus networks and proximity sensor loops through one cabinet-wall socket.
- HEG hermetic seal (IP68) — blocks fine metal dust, oil mist and humidity from penetrating the air-conditioned interior of the computer cabinet.
- Exterior cabinet-wall mounting — the panel socket mounts on the outside of the control cabinet, keeping the sealed interior intact.
- Gold-plated contacts — stable, low-resistance connections for motor power and clean encoder/sensor signals.
- Proven durability — >5,000 mating cycles and 100 g·6 ms shock tolerance for continuous factory-floor operation.
3. 2B Series Connector Family Overview
The 2B series is Spring Technology’s mid-large push-pull connector family, widely used in industrial automation for power, signal and sealed applications. The plug and socket in this order share the same 2B platform, simplifying spares across the automation line.
3.1 Available Configurations
- Plugs: straight plugs (this order), plugs with bend relief, elbow plugs, fixed plugs, in 2B shell size.
- Pin counts: 2 to 26 pins, with solder or PCB termination options.
- Sockets: sealed HEG fixed sockets (IP68, this order), standard fixed sockets, PCB-contact sockets, free sockets.
- Keying: key G standard, with keys A–M and R available for multi-connector segregation.
3.2 Customization Services
- Custom pin allocations and part numbers (such as the CBTG2BG-SMSM02-D52B / CBME2BG-SFSM10-0000 pair) matched to the automation system’s power and signal plan.
- Sealed socket options for dusty, oily or humid factory environments.
- Pre-wired cable assemblies with heavy-duty jackets for robotic arms and cabinets.
- Key orientation selection to keep power and signal circuits segregated.
4. Applications: Industrial Automation and Robotics Control Cabinets
From the robotic arm on the line to the sealed control cabinet that runs it, this push-pull connector for control cabinets pair covers the power and signal links of modern automation.
4.1 Multi-Axis Robotic Arm Power
The CBTG2BG-SMSM02-D52B connects the main power lines running down to a multi-axis robotic arm, supplying the heavy current that drives the joint motors through every axis of motion.
4.2 Signal Matrix Through the Cabinet Wall
Mounted on the exterior wall of the main automated control cabinet, the CBME2BG-SFSM10-0000 routes a parallel matrix of 10 signals — absolute encoder feedbacks, CAN-bus networks and proximity sensor loops — into the controller inside.
4.3 Protection from Factory-Floor Contaminants
The HEG hermetic seal stops fine metal dust, oil mist and humidity from penetrating the air-conditioned interior of the computer cabinet, keeping drives and controllers running reliably on the factory floor.
5. Frequently Asked Questions (FAQ)
Conclusion & Call to Action
This 2B push-pull connector for control cabinets delivery for Russian customers shows how Spring Technology covers the power and sealed signal links of advanced automation — from the CBTG2BG-SMSM02-D52B robotic arm power plug to the CBME2BG-SFSM10-0000 IP68 hermetic panel socket, every detail was aligned with the customer's industrial automation and robotics requirements. Spring Technology also provides professional customization services for both push-pull connectors and cable assemblies, offering tailored solutions to meet your specific technical requirements.
For more information about our 2B series connectors or to discuss your requirements, contact us at [email protected] or [email protected], or visit our website.
Building an automation control cabinet? Send us your power, signal and sealing requirements — our engineering team will respond with a tailored push-pull connector for control cabinets proposal within 24 hours.
